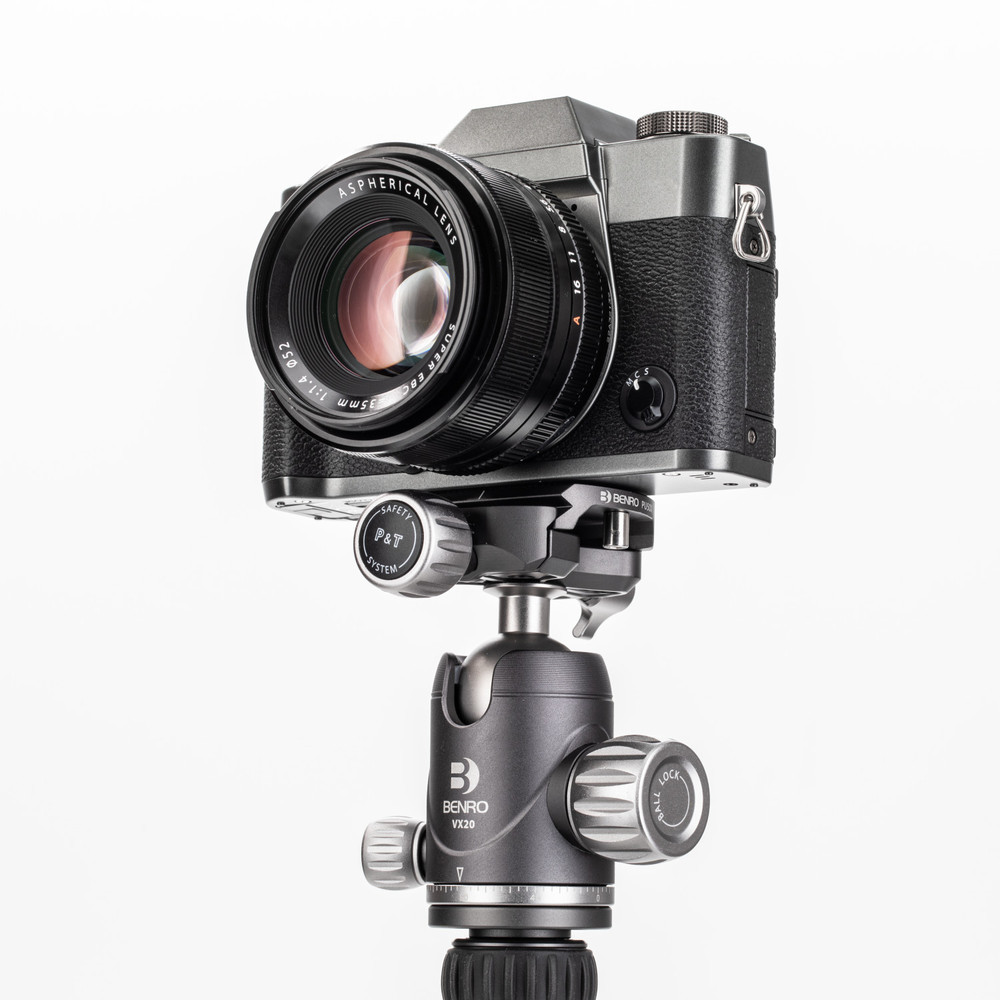

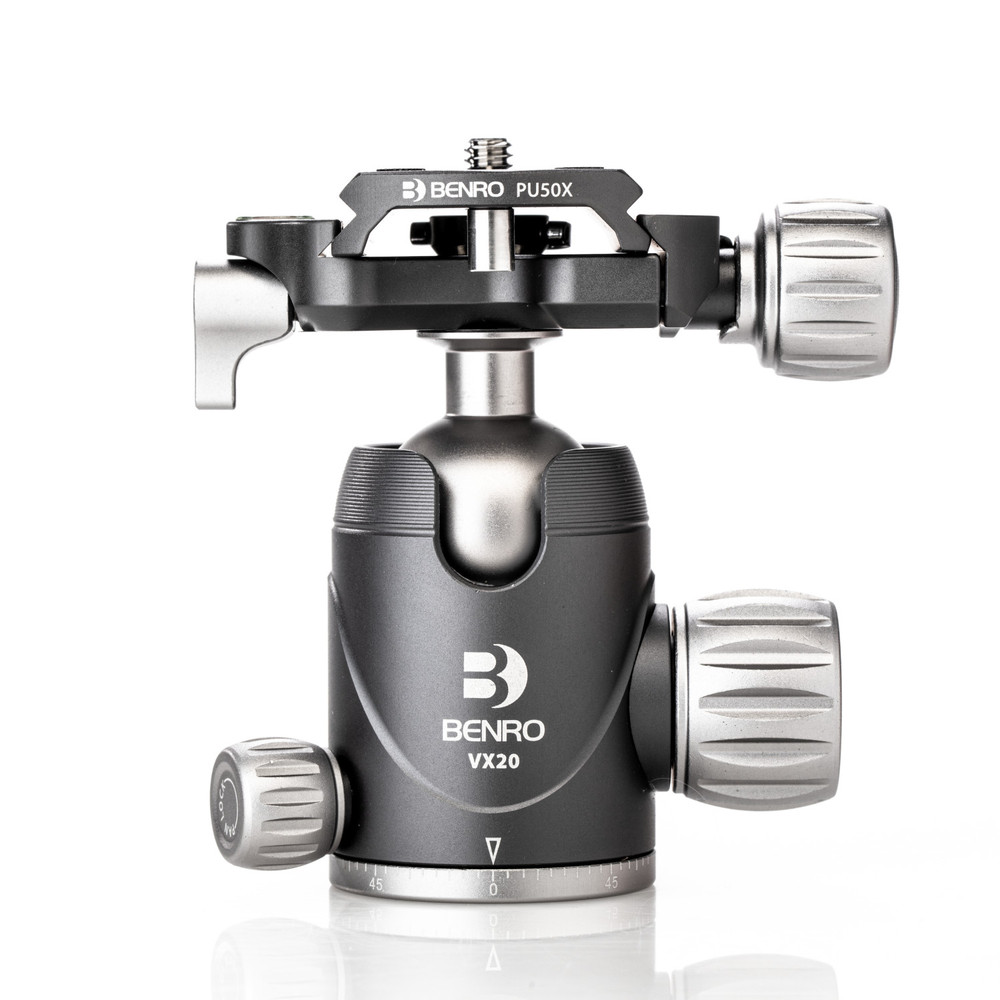

Benro VX20 Ball Head

SKU: VX20 | FREE U.S. shipping on all orders over $100!

$104.95
Students and Educators: Enroll or Log in for exclusive EDU savings!
Find a dealer
  • 20kg/44lb Max Payload Capacity
  • Dual Panning Ballhead Included - Aluminum Ballhead with Arca-Swiss Style Camera Plate

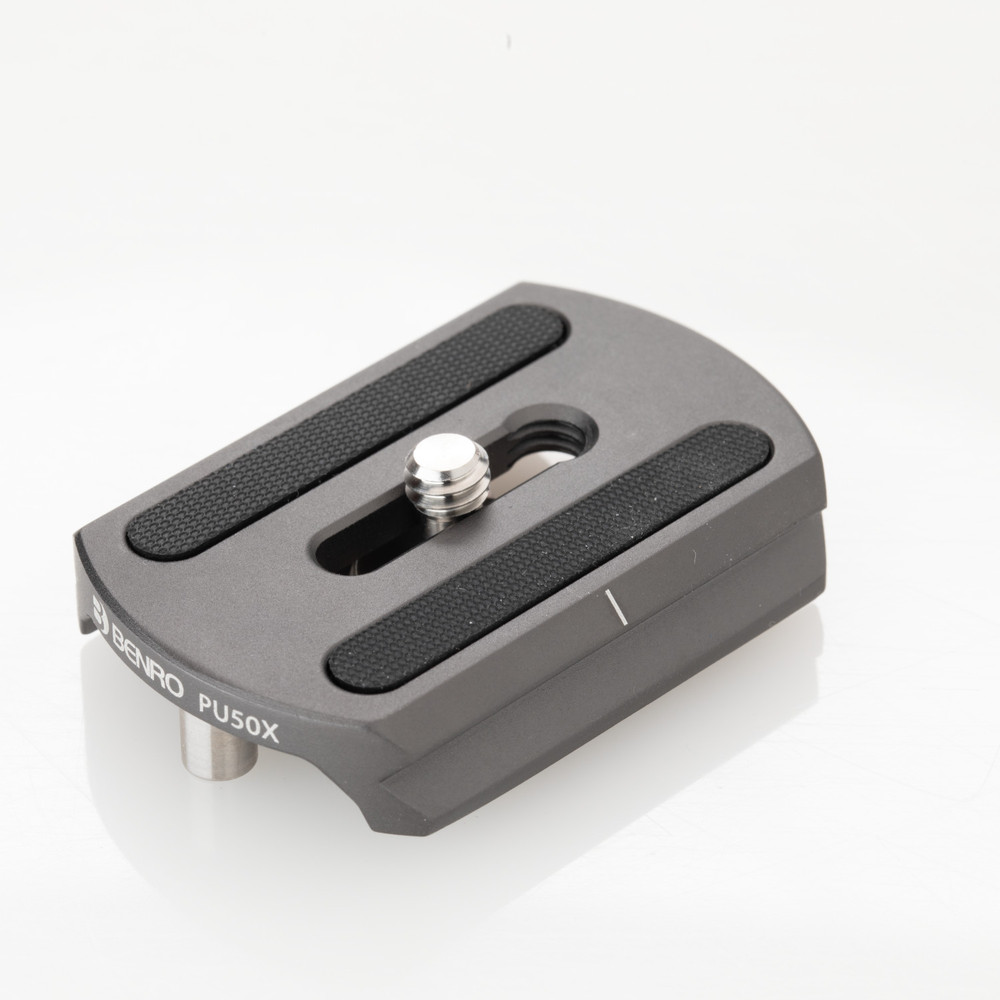

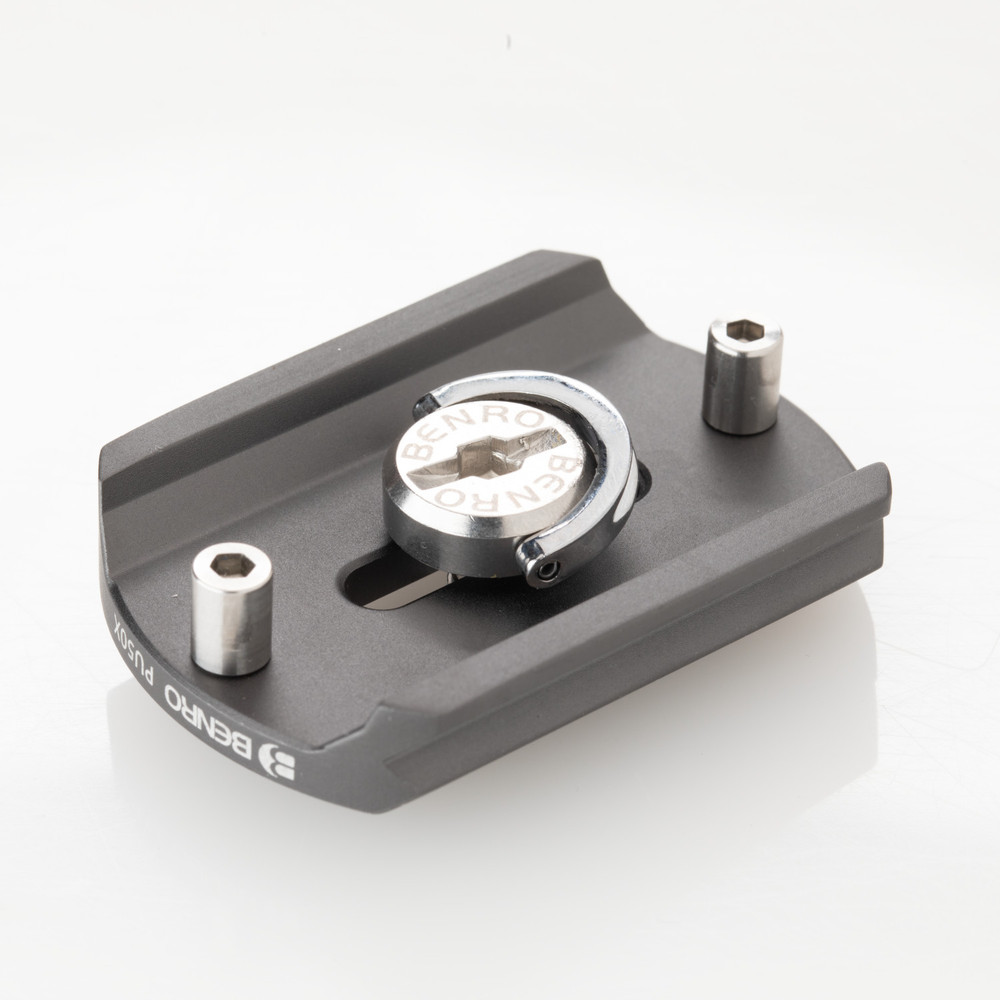

  • Ultralight Camera Plate - New lighterweight design.

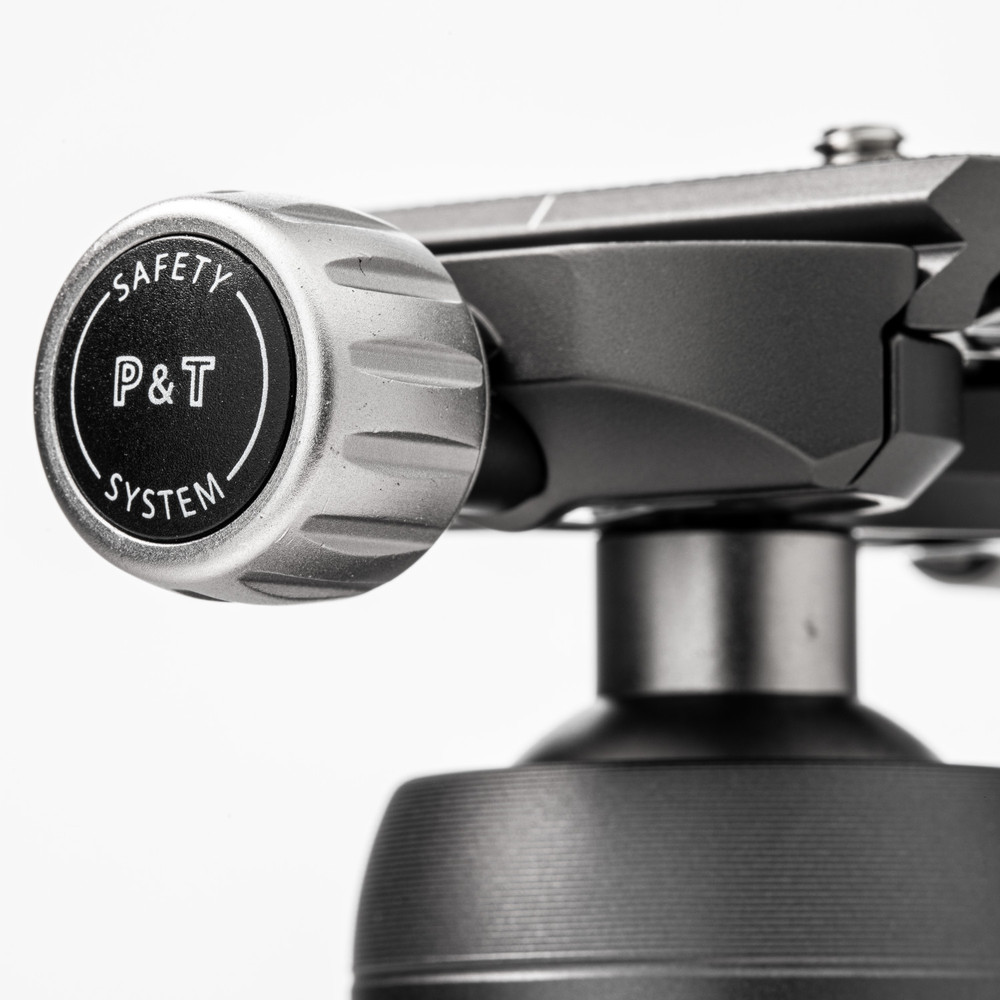

  • Safe Locking Controls - Safety Stops prevent the camera plate from sliding off and the Pull & Twist function prevents accidental loosening.
  • 5 Year Warranty - 3 Year Warranty with 2 Year Online Extension

Overview

The VX Dual Panoramic Series of ballheads offers dual panoramic mode, which allows you to pan the head from its base in addition to the quick-release platform. The controls are simple, with ball friction adjustment built into the main lock knob and an independent pan lock.

This newly designed ballhead features a safety lock for the quick release plate.

Specifications

Ball Diameter (mm):
Φ30
Base Mount Diameter (mm):
40
Base Mount Thread:
3/8"
Bubble Level:
Yes
Closed Length (in):
0
Family:
VX Series
Head Mount:
3/8"
Head Type:
photo Ball head
Maximum Height Converted to Monopod (in):
0
Maximum Height w/Column Extended (in):
0
Maximum Payload Capacity (lb):
44.09
Maximum Payload Capacity (kg):
20
Physical:

Panning Range:
360°
Product Height (cm):
9.0cm
Product Height (in):
3.54in
Product Length (cm):
9.5cm
Product Length (in):
3.74in
Product Weight (kg):
0.28kg
Product Weight (lb):
0.61lb
Product Width (cm):
5.5cm
Product Width (in):
2.16in
QR Plate - Length (cm):
5.5
QR Plate - Length (in):
2.1653543307086616
QR Plate - Width (cm):
3.8
QR Plate - Width (in):
1.4960629921259843
Quick Plate Safety Mechanism:
Yes
Quick Release Camera Thread Size:
1/4"
Quick Release Plate Lock:
Yes
Quick Release Type:
slide in plate (PU50X)
Reverse Folded Length (in):
0
Separate Panning Lock:
Yes
Warranty:
3 Year
