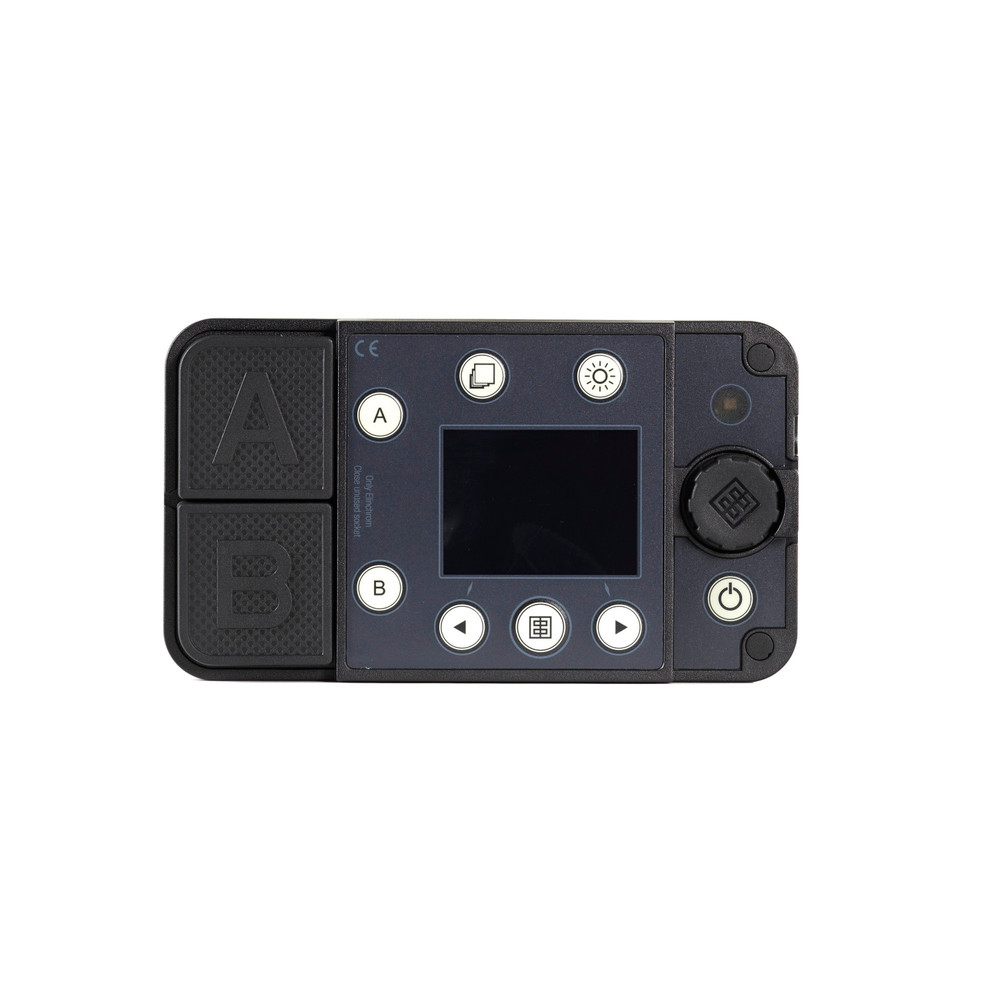

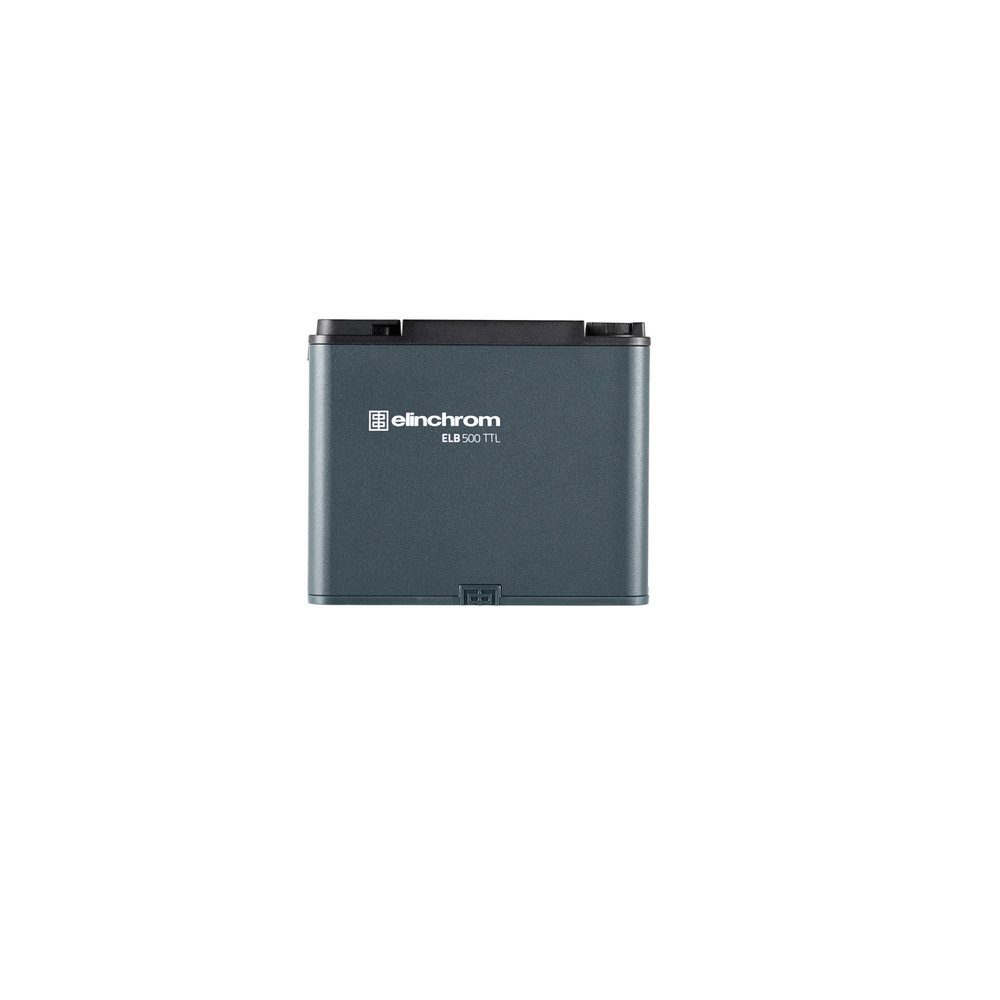

Elinchrom ELB 500 TTL Power Pack Without Battery (Open Box)

SKU: EL10232.1D | FREE U.S. shipping on all orders over $100!

Regular: $1,329.95
SALE: $664.97
Students and Educators: Enroll or Log in for exclusive EDU savings!
Find a dealer
  • This product is in like-new condition and is offered for sale here because it was returned immediately after purchase or is was displayed at a trade show. OPEN BOX products are subject to the same warranty as NEW products. OPEN BOX Specials are also subject to the same 30-day return policy as NEW PRODUCTS.
  • STAY FOCUSED ON STORYTELLING, REGARDLESS OF THE SITUATION - The ELB 500 TTL Off Camera Flash combines 500 Ws of power with features including TTL, HSS, Active Charging, and Full Asymmetry all in a package weighing only 8lbs, enabling you to create freely in the studio, on location, or even on the move.
  • AND STRETCH YOUR IMAGINATION - Achieve sync speeds of up to 1/8000ths of a second using High-Speed Sync to freeze motion with incredible sharpness, create a narrow depth of field, or overpower the sun.
  • WITH INDEPENDENT REMOTE CONTROL OF UP TO TWO FLASH HEADS - Take full advantage of the ELB 500 TTL's fully asymmetric power distribution with an Elinchrom Skyport Transmitter Pro (Sold Separately). Now you can independently adjust each head's power across their seven-stop range and control the modeling lamps from atop your camera.
  • WHILE NEVER LOSE MOMENTUM - The ELB 500 TTL's 14.4V, 5Ah, 72Wh Li-Ion battery can generate 400 full-power flashes from one charge. Plus, with Active Charging, you can plug into AC power and continue shooting while charging regardless of the battery's power level, keeping your workflow uninterrupted.
  • NEED A SPARE? - This pack is supplied without the required battery or flash heads. These items are sold separately or are available in the ELB 500 TTL To Go Kit (EL10309.1) Dual To Go Kit (EL10310.1)

Overview

Stay Focused on Storytelling, Regardless of the Situation. Be prepared for any adventure with the portable and incredibly efficient Elinchrom ELB 500 TTL Off Camera Flash. Combining 500 Ws of power with features including TTL, HSS, Active Charging, and Full Asymmetry all in a package weighing only 8lbs, this robust battery pack enables you to create freely in the studio, on location, or even on the move. Supplied without Li-Ion Battery or Flash Head, these items are sold separately or are available in kits, see listings for the Elinchrom ELB 500 TTL Off Camera Flash To Go Kit (EL10309.1) or Elinchrom ELB 500 TTL Off Camera Flash Dual To Go Kit (EL10310.1) for details Travel Light Weighing only 1.5lbs, the ELB 500 TTL's Flash Heads can be easily boomed out by hand or with minimal counterweight. The compact design eliminates the need for heavy-duty stands and enables the ELB 500 TTL to be comfortably worn by an assistant. And Stretch Your Imagination Achieve sync speeds of up to 1/8000ths of a second using High-Speed Sync to freeze motion with incredible sharpness, create a narrow depth of field, or overpower the sun. With Independent Remote Control of Up To Two Flash Heads Take full advantage of the ELB 500 TTL's fully asymmetric power distribution with an Elinchrom Skyport Transmitter Pro. Now you can independently adjust each head's power across their seven-stop range and control the modeling lamps from atop your camera. So You Can Master Your Workflow The ELB 500 TTL lets you compose images at the speed of life. Use TTL to set an exposure quickly and then use Manual Lock to switch to manual mode without losing your initial exposure for further adjustment or to explore creative effects. While Never Losing Momentum The ELB 500 TTL's Active Charging enables you to plug into AC power and charge the battery mid-shoot regardless of the batteries' charge level, making it perfect for an uninterrupted workflow.

Specifications

AC Input Voltage:
Auto Sensing 100 to 240 VAC, 50 / 60 Hz at 1.5 A
Accessory Port(s):
No
App Compatible:
Via Skyport Bridge EL19334
Auto Dump:
Yes
Battery Capacity (mAh):
5Ah
Battery Capacity (Wh):
72Wh
Battery Chemistry:
Li-Ion
Battery Included:
Yes
Battery Maximum Output Voltage:
14.4v
Battery Required:
Yes
Channels:
20
Color Temperature (Kelvin):
5500K
Color Temperature Variance:
+/- 200K
Display:
OLED
Fan Cooled:
No
Flash Head Cable Length:
8ft
Flash Modes:
Normal, Action
Flash Tube User Replaceable:
No
Flashes Per Charge (Max Power):
400
Flashes Per Charge (Min Power):
28000
Groups:
4
Guide Number:
f/64.8 with 48° reflector 1 m and ISO 100
Hi-Sync Compatible:
No
High Speed Sync Compatible:
Yes with Skyport Transmitter Pro
Includes Rechargeable Battery:
Yes
Light Modifier Bayonet Mount:
Elinchrom Q-Mount Elinchrom Full Size Bayonet Requires Adapter EL26342
Max Power (Ws):
500Ws
Max Sync Speed:
1/8000th sec
Physical:

Min. Power (Ws):
7Ws
Modeling Lamp Color Temp:
5200 K
Modeling Lamp CRI:
90
Modeling Light Control:
On / Off, free, prop, timer 1-60 s, VFC
Modeling Light Dimmable:
40 Steps
Modeling Light Type:
LED
Power Control Increments in F-Stop, Manual Mode:
1/10th
Power Distribution (A and B Ports):
Full Asymmetry
Power Range in F-stops:
7
Power Stability:
+/- 0.5%
Product Height (cm):
13.8cm
Product Height (in):
5.43in
Product Length (cm):
16.3cm
Product Length (in):
6.42in
Product Weight (kg):
2.16kg
Product Weight (lb):
0.66lb
Product Width (cm):
9.0cm
Product Width (in):
3.54in
Recharge Time to 100%:
1.4hr
Shortest Flash Duration at Power Setting:
7.1 Ws in Action Mode
Sync Socket Type:
3.5mm PC Sync
Sync Type:
Wireless, Optical, Cable
Umbrella Shaft Mount:
7mm Shaft on Tilt Head 8mm Shaft Requires Adapter EL26342
Wireless Frequency Band:
2.4ghz
Wireless Range:
656ft/220m Radio
Wireless Transceiver:
Built in Skyport/Phottix Odin 2
