Kaiser Kaiser RSP autoDrive 1.5 column with positioning control

SKU: 205613 | FREE U.S. shipping on all orders over $100!

$5,999.00
Students and Educators: Enroll or Log in for exclusive EDU savings!
Find a dealer

    Overview

    Professional guide column for the rePRO repro system. Camera carrier with motorized height adjustment via PC/laptop or cable remote control. Height positions can be saved and approached again with a repeat accuracy of approx. 1/100 millimeter. Incl. "Kaiser autoDrive" control program.

    Pillar made of multi-chamber aluminum special profile, matt black anodized with printed cm and inch scales. Attachment to the rePRO floor stand (5615), with the rePRO wall bracket (5614) or in the base (5610), e.g. B. mounted on floor stand 75H (5618).

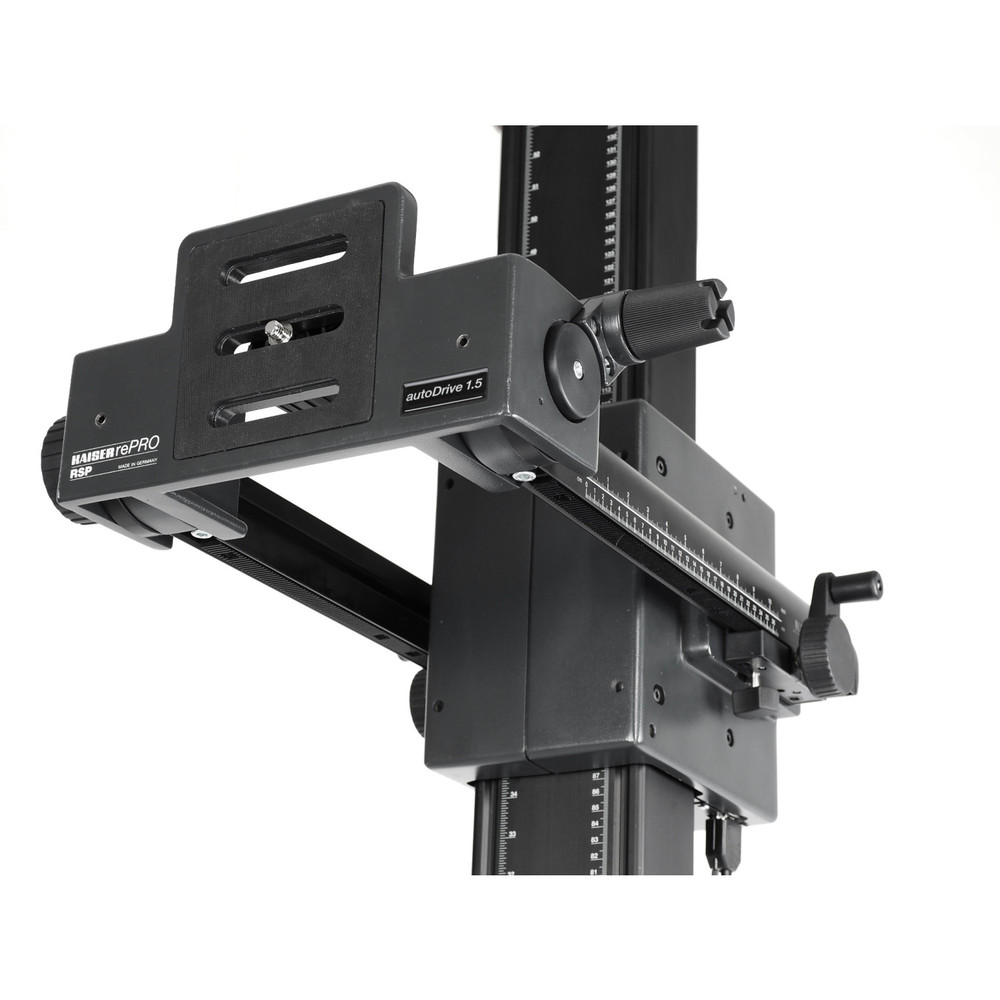

    Camera carrier made of die-cast aluminium, with motorized height adjustment via the "Kaiser autoDrive" control program or cable remote control. Load-independent adjustment speed. Each height position is held exactly by the self-locking spindle drive. Automatic limit switch via magnetic sensor. Camera carrier horizontally adjustable via newly developed parallel guide with toothed rack, hand cranks for right/left operation, two locking screws. Built-in spirit level. Camera mounting plate with precise fine adjustment swiveling by ± 90°.

    Cable remote control for slow and fast up and down travel. Possibility to save four height positions, which can be approached again exactly at the push of a button. Red emergency stop button.

    "Kaiser autoDrive" control program for computer-controlled height adjustment via PC/laptop and for brightness control of the RB 570 AX (5652) LED lighting device. In addition to direct control, up to 500 projects (height positions, brightness values) can be saved and called up again if required.

    Specifications

    Physical:

    Product Height (in):
    59.05in
    Product Length (in):
    20.47in
    Product Weight (lb):
    46.29lb
    Product Width (in):
    11.61in
    Warranty:
    2 Year
