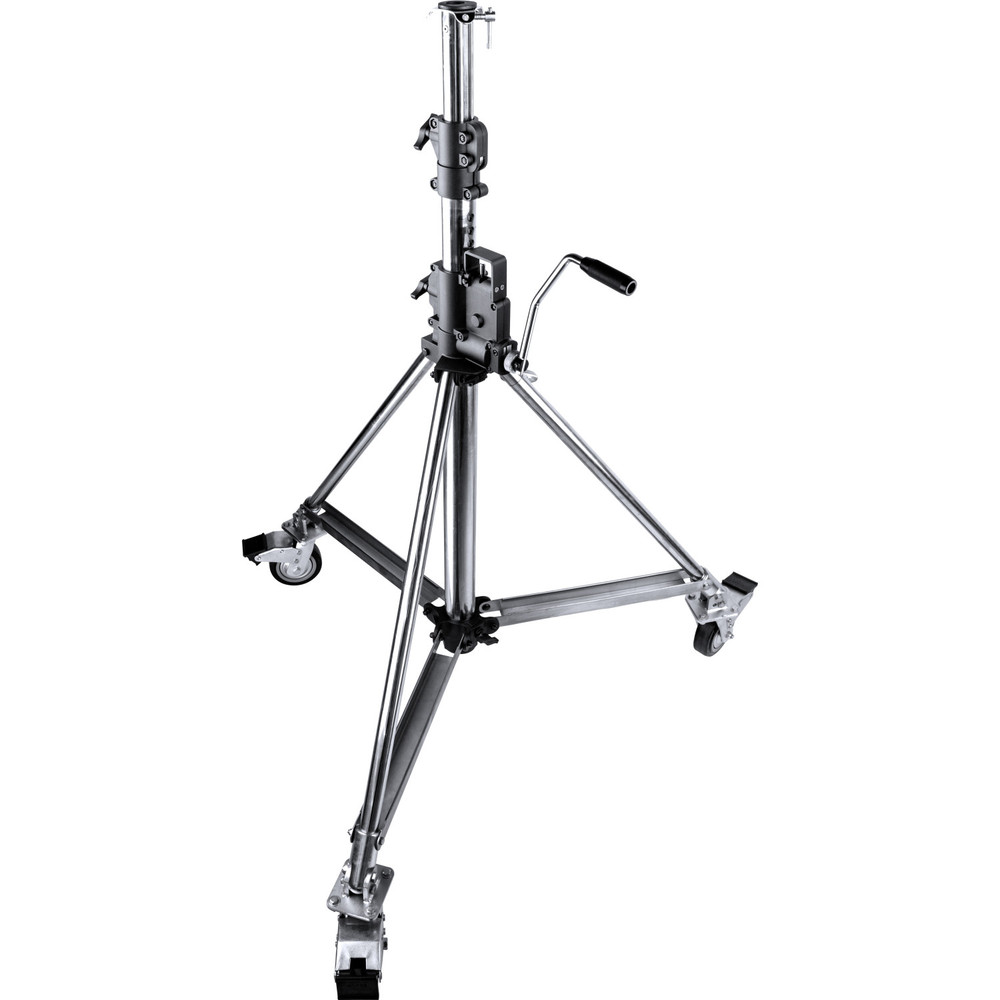

Kupo Heavy Duty Wind-Up Low Base Steel Stand

SKU: KS403212 | FREE U.S. shipping on all orders over $100!

$1,544.95
Students and Educators: Enroll or Log in for exclusive EDU savings!
Find a dealer
  • Constructed of Chrome plated steel (Top 2 section), stainless steel (center tube & legs)
  • Max height: 106" (270cm) / Max load: 176.3lbs (80kg)
  • Features a mechanical lifting assist with a hand-crank enables a single operator to lift heavy loads
  • Patented auto self-locking device prevent from unexpected drop-off
  • Low working height for easier operation

Overview

Features a mechanical lifting assist with a hand-crank and an auto-locking safety system that enables a single operator to lift heavy loads with precision and confidence. The center tube, legs and U-shape struts are constructed from stainless steel with the top two chrome plated steel sections for extra stability. For safety loading weight up to 176.3lbs (80kg) in a small 51.2” footprint.

Specifications

Closed Length (cm):
156
Closed Length (in):
61.4
Fixed Stand Adapter:
Yes
Footprint Diameter (cm):
130.0cm
Footprint Diameter (in):
51.2in
Leg Diameter 1 (mm):
35
Leg Diameter (in):
1.38in
Leg Diameter (mm):
35.0mm
Leveling Leg:
Yes
Maximum Extension (cm):
270.0cm
Maximum Extension (in):
106.0in
Maximum Payload Capacity (lb):
176.3
Maximum Payload Capacity (kg):
80
Physical:

Product Height (cm):
20.0cm
Product Height (in):
7.87in
Product Length (cm):
143.0cm
Product Length (in):
56.3in
Product Weight (kg):
30.95kg
Product Weight (lb):
68.09lb
Product Width (cm):
28.0cm
Product Width (in):
11.02in
Removable Stand Adapter:
No
Riser 1 Diameter (in):
1.97in
Riser 1 Diameter (mm):
50.0mm
Riser 2 Diameter (in):
2.36in
Riser 2 Diameter (mm):
60.0mm
Riser 3 Diameter (in):
2.75in
Riser 3 Diameter (mm):
70.0mm
Risers:
2
Sections:
3
Stand Adapter Type:
Junior Receiver
Suggested Caster:
KC-150 / KS941312
Warranty:
Limited Two-Year Warranty
