- STUDIO QUALITY LIGHTING - Nanlite Compac series studio LED panels create diffuse, color accurate, studio lighting with minimal set up and zero complications. Perfect for lighting interviews, headshots, still life photography, vlogging, and more.
- THE LIGHT YOU NEED IN THE ROOM YOU HAVE - Combining a space-saving design with impressive brightness; Compac series studio LEDs achieve lighting similar to large softboxes but at a fraction of the size and none of the set up time.

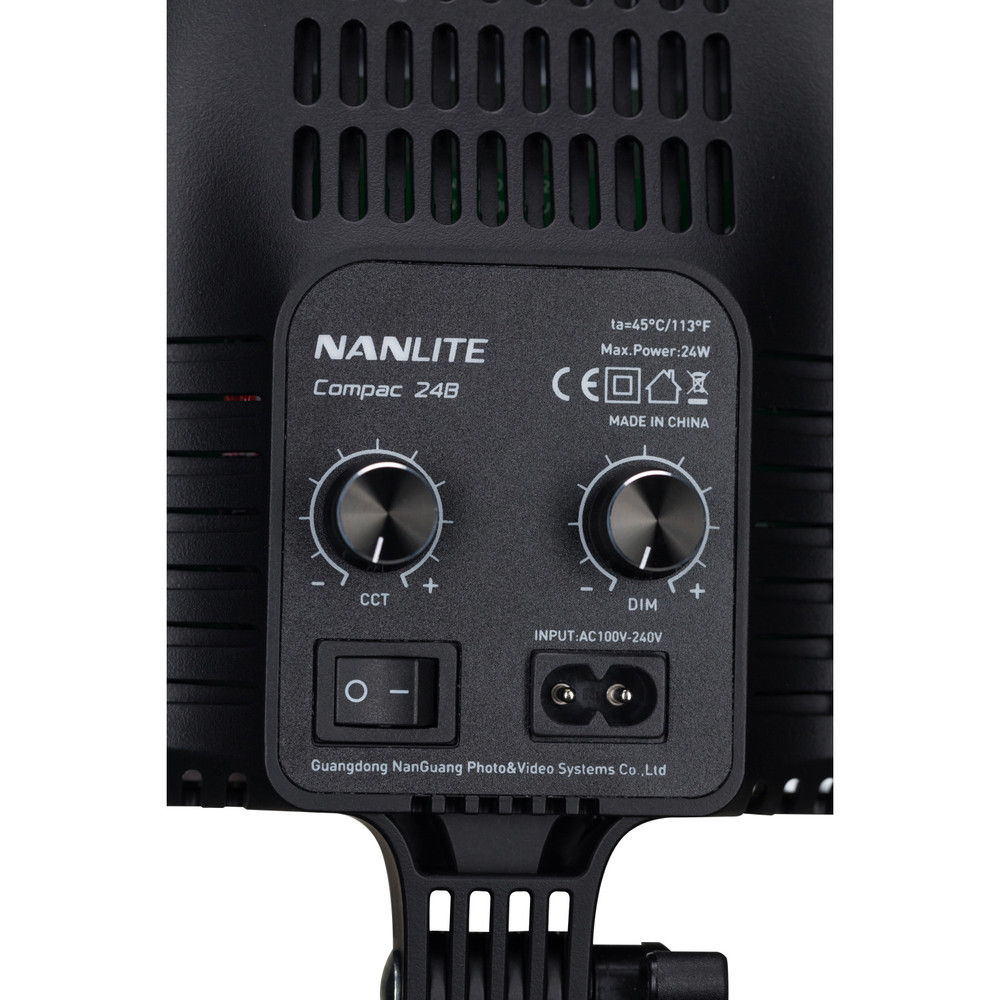

- FULL CREATIVE CONTROL- Quickly achieve beautiful, studio-quality results without adding plastic filters or cloth diffusion. Rear controls enable you to dial in brightness from 0-100% and temperature from warm to cold (3200K-5600K).
- COLOR PERFECTION - The output of a light is important, but without color accuracy, a ton of time and money will be lost in post-production. The Compac 24B features a CRI/TLCI of 95/93 meaning color reproduction will be precise.
- WE'VE GOT YOU COVERED - For over 25 years Nanlite has been producing innovative LED lighting solutions backed by a 2 year limited warranty extendible to 3 years limited with registration. Warranty valid only on products purchased from authorized dealers.
Overview
Combining a slim profile with impressive brightness, Nanlite Compac series studio LED panels achieve lighting similar to large softboxes but at a fraction of the size and none of the set up time. This space-saving design makes them an ideal option for headshots, live streaming, food photography, vlogging, product photography, and more.
With Compac series LEDs you can quickly achieve beautiful, studio-quality results without adding plastic filters or cloth diffusion. Rear controls enable you to dial in brightness from 0-100% and color temperature from warm to cold (3200K-5600K).

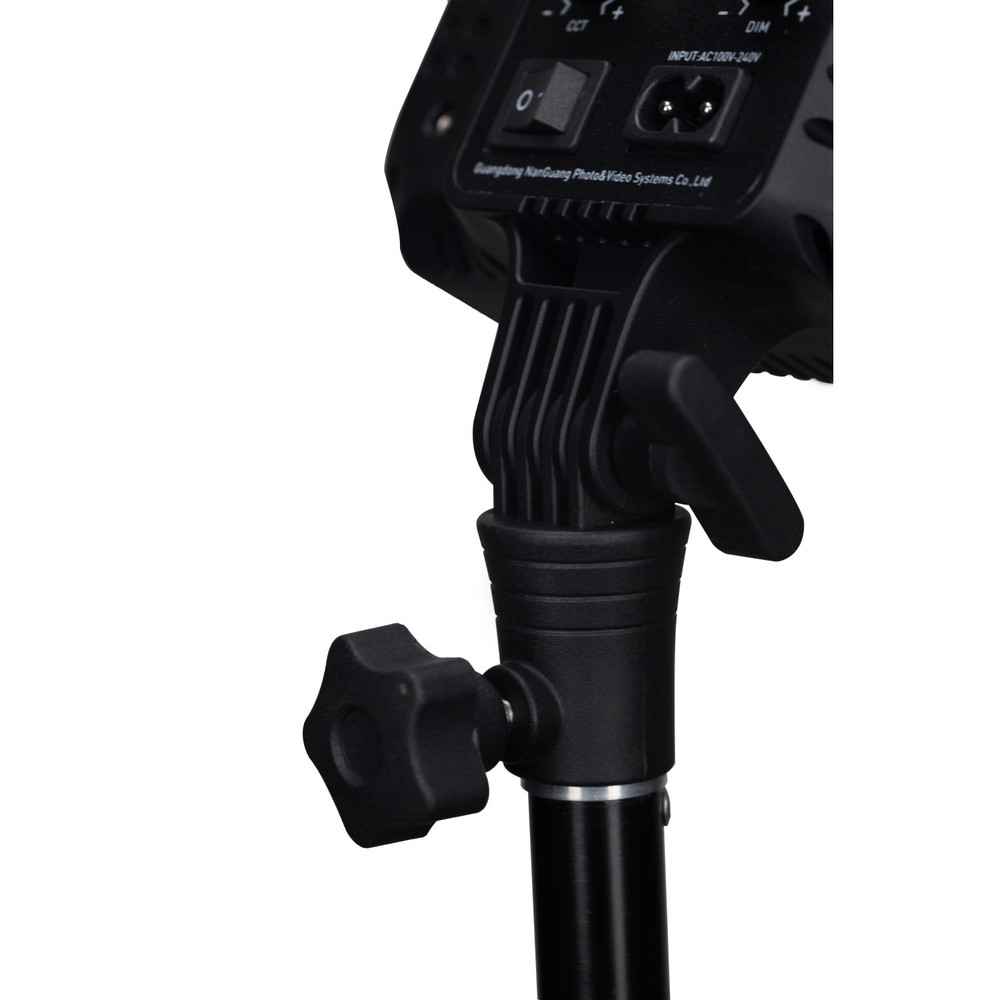

Whether you are shooting a video on location or setting up a home photography studio space is always at a premium. Compac series LEDs give you the light you need in the room you have. At only 2.9 inches thick, the Compac 24B uses high-efficiency LEDs to provide up to 2006 lumens (690 Lux @ 1m 5600K, 670 Lux @ 1m 3200K) of illumination. Supplied with a standard 5/8" receiver mount, the Compac 24B can be mounted directly on any standard light stand.
With Compac series LEDs you can quickly achieve beautiful, studio-quality results without adding plastic filters or cloth diffusion. Rear controls enable you to dial in brightness from 0-100% and color temperature from warm to cold (3200K-5600K).
Whether you are shooting a video on location or setting up a home photography studio space is always at a premium. Compac series LEDs give you the light you need in the room you have. At only 2.9 inches thick, the Compac 24B uses high-efficiency LEDs to provide up to 2006 lumens (690 Lux @ 1m 5600K, 670 Lux @ 1m 3200K) of illumination. Supplied with a standard 5/8" receiver mount, the Compac 24B can be mounted directly on any standard light stand.
Technical Data
- Accepts Grids:
- Not Applicable
- Accessory Port(s):
- Not Applicable
- Amp-Hours:
- Not Applicable
- Battery Capacity (Wh):
- Not Applicable
- Battery Cells:
- Not Applicable
- Battery Chemistry:
- Not Applicable
- Battery Compatibility:
- None AC Only
- Battery Included:
- No
- Battery Maximum Output Voltage:
- Not Applicable
- Battery Required:
- No
- Beam Angle Flood:
- Not Applicable
- Beam Angle Spot:
- Not Applicable
- Channels:
- Not Applicable
- Charge Time to Full (Hours):
- Not Applicable
- Charge Time to 80% (Hours):
- Not Applicable
- Charger:
- Not Applicable
- Closed Length (cm):
- Not Applicable
- Closed Length (in):
- Not Applicable
- Color Temperature (Kelvin):
- 3200K-5600K
- Compatible D-Tap Adapter:
- Not Applicable
- Compatible Remote:
- Not Applicable
- Compatible Wifi Adapter:
- Not Applicable
- Cooling System:
- Passive
- CRI:
- 95
- Depth Rating:
- Not Applicable
- Dimming:
- 0-100%
- DMX Control:
- No
- Electrical Load Capacity:
- Not Applicable
- Footprint Diameter (cm):
- cm
- Footprint Diameter (in):
- in
- Frequency:
- Not Applicable
- Groups:
- Not Applicable
- Includes Rechargeable Battery:
- No
- Interior Color:
- Not Applicable
- Light Modifier Bayonet Mount:
- Not Applicable
- Load Capacity (kg):
- Not Applicable
- Load Capacity (lb):
- Not Applicable
- Lumen Output 3200K:
- 2006
- Lumen Output 5600K:
- 2006
- Lux @ 0.5m 5600K:
- Not Applicable
- Lux @ 1m 2700K:
- Not Applicable
- Lux @ 1m 3200K:
- 670
- Lux @ 1m 5600K:
- 690
- Max Power Consumption:
- 24w
- Maximum Height (in):
- Not Applicable
- Maximum Height (cm):
- Not Applicable
- Physical:
- Minimum Height (cm):
- Not Applicable
- Minimum Height (in):
- Not Applicable
- Mount:
- 5/8" Receiver
- Number of Rods:
- Not Applicable
- Operating Temperature:
- Not Applicable
- Power Source:
- 100-240V AC
- 'Product Diameter (cm):
- Not Applicable
- 'Product Diameter (in):
- Not Applicable
- Product Inner Diameter (cm) Ring Lights Only:
- Not Applicable
- Product Inner Diameter (in) Ring Lights Only:
- Not Applicable
- Product Height (cm):
- 31.6cm
- Product Height (in):
- 12.4in
- Product Length (cm):
- 17.2cm
- Product Length (in):
- 6.77in
- Product Weight (kg):
- 0.72kg
- Product Weight (lb):
- 1.58lb
- Product Width (cm):
- 7.5cm
- Product Width (in):
- 2.95in
- Removable Front Diffusion:
- Not Applicable
- Removable Interior Baffle:
- Not Applicable
- Requires Speed Ring:
- Not Applicable
- Runtime @ 100% Brightness (Hours):
- Not Applicable
- Runtime @ 50% Brightness (Hours):
- Not Applicable
- Runtime @ 10% Brightness (Hours):
- Not Applicable
- Shape:
- Not Applicable
- TLCI:
- 93
- Umbrella Shaft Diameter:
- Not Applicable
- Warranty:
- Limited 2 Year Warranty (Extend to 3 Years Total With Online Registration)
- Wireless Control Type:
- None
- Wireless Range:
- Not Applicable
