Nanlite Compac 40B Adjustable Bicolor Slim Soft Light Studio LED Panel

SKU: 12-2005 | FREE U.S. shipping on all orders over $100!

$80.00
Students and Educators: Enroll or Log in for exclusive EDU savings!
Notify me Find a dealer
  • STUDIO QUALITY LIGHTING - Nanlite Compac series studio LED panels create diffuse, color accurate, studio lighting with minimal set up and zero complications. Perfect for lighting interviews, headshots, still life photography, vlogging, and more.
  • THE LIGHT YOU NEED IN THE ROOM YOU HAVE - Combining a space-saving design with impressive brightness; Compac series studio LEDs achieve lighting similar to large softboxes but at a fraction of the size and none of the set up time.

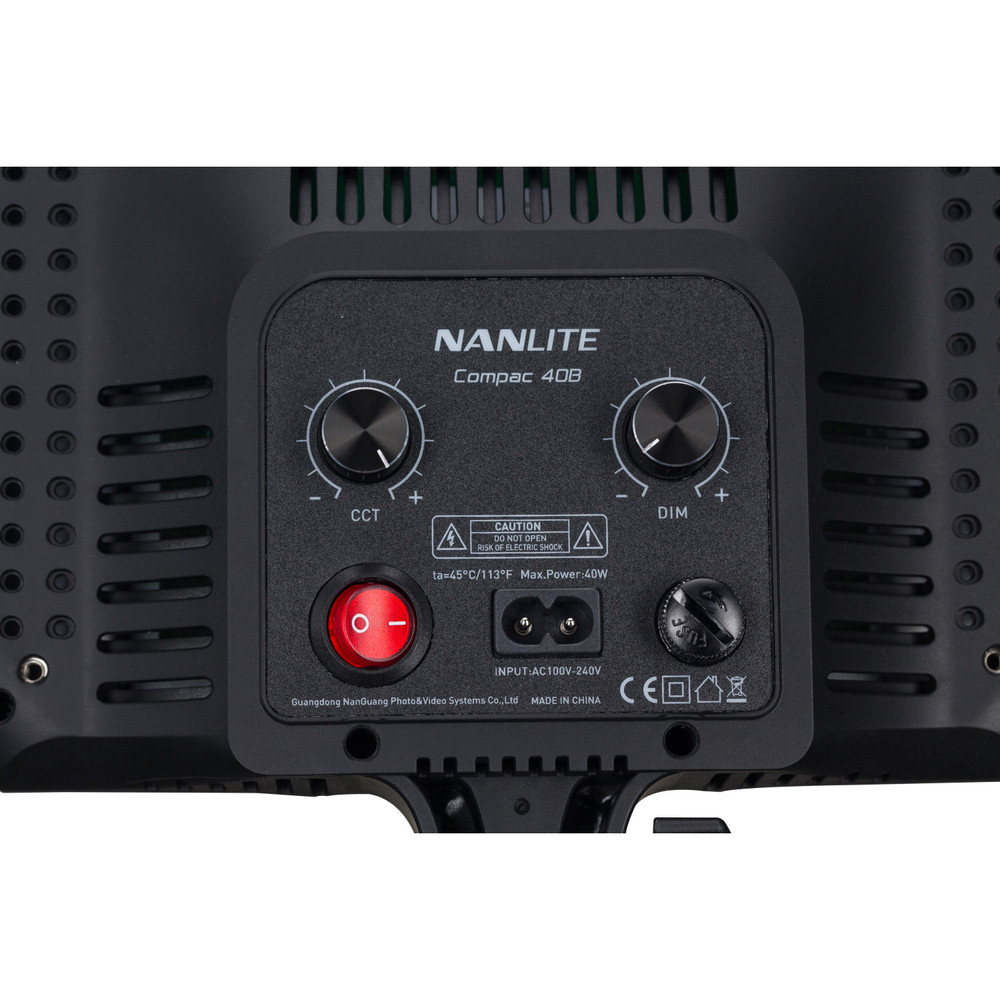

  • FULL CREATIVE CONTROL- Quickly achieve beautiful, studio-quality results without adding plastic filters or cloth diffusion. Rear controls enable you to dial in brightness from 0-100% and temperature from warm to cold (3200K-5600K).
  • COLOR PERFECTION - The output of a light is important, but without color accuracy, a ton of time and money will be lost in post-production. The Compac 40B features a CRI/TLCI of 95/93 meaning color reproduction will be precise.
  • WE'VE GOT YOU COVERED - For over 25 years Nanlite has been producing innovative LED lighting solutions backed by a 2 year limited warranty extendible to 3 years limited with registration. Warranty valid only on products purchased from authorized dealers.

Overview

Combining a slim profile with impressive brightness, Nanlite Compac series studio LED panels achieve lighting similar to large softboxes but at a fraction of the size and none of the set up time. This space-saving design makes them an ideal option for headshots, live streaming, food photography, vlogging, product photography, and more.

With Compac series LEDs you can quickly achieve beautiful, studio-quality results without adding plastic filters or cloth diffusion. Rear controls enable you to dial in brightness from 0-100% and color temperature from warm to cold (3200K-5600K).

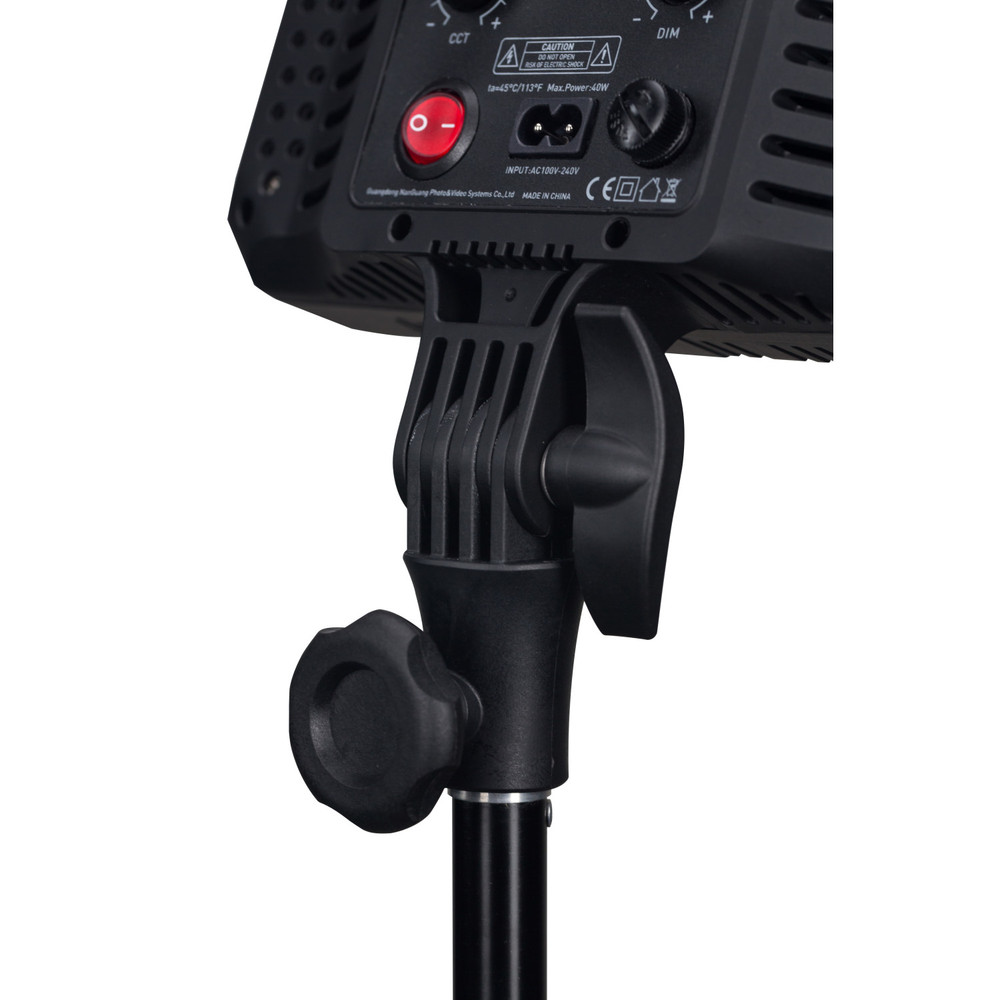

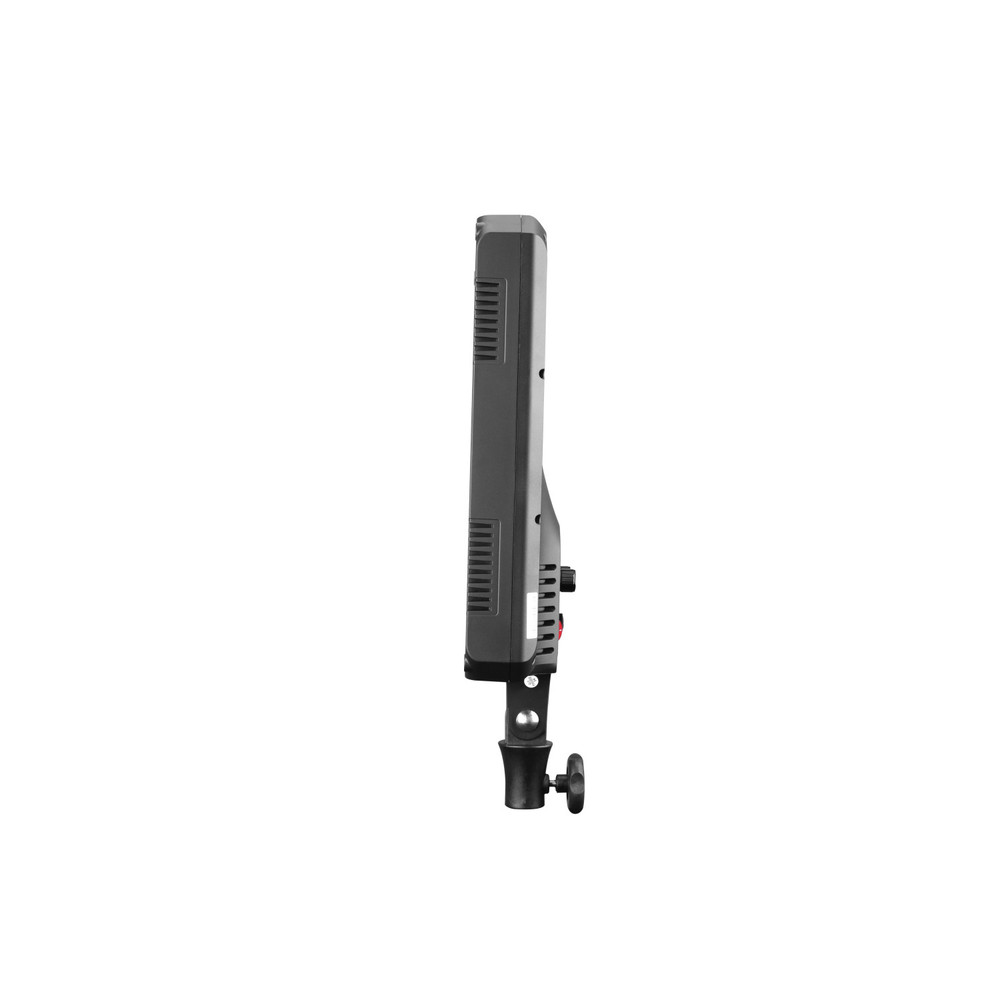

Whether you are shooting a video on location or setting up a home photography studio space is always at a premium. Compac series LEDs give you the light you need in the room you have. At only 3 inches thick, the Compac40B uses high-efficiency LEDs to provide up to 3344 lumens (1540 Lux @ 1m 5600K, 1450 Lux @ 1m 3200K) of illumination. Supplied with a standard 5/8" receiver mount, the Compac 40B can be mounted directly on any standard light stand.

Technical Data

Accepts Grids:
Not Applicable
Accessory Port(s):
Not Applicable
Amp-Hours:
Not Applicable
Battery Capacity (Wh):
Not Applicable
Battery Cells:
Not Applicable
Battery Chemistry:
Not Applicable
Battery Compatibility:
None AC Only
Battery Included:
No
Battery Maximum Output Voltage:
Not Applicable
Battery Required:
No
Beam Angle Flood:
Not Applicable
Beam Angle Spot:
Not Applicable
Channels:
Not Applicable
Charge Time to Full (Hours):
Not Applicable
Charge Time to 80% (Hours):
Not Applicable
Charger:
Not Applicable
Closed Length (cm):
Not Applicable
Closed Length (in):
Not Applicable
Color Temperature (Kelvin):
3200K-5600K
Compatible D-Tap Adapter:
Not Applicable
Compatible Remote:
Not Applicable
Compatible Wifi Adapter:
Not Applicable
Cooling System:
Passive
CRI:
95
Depth Rating:
Not Applicable
Dimming:
0-100%
DMX Control:
No
Electrical Load Capacity:
Not Applicable
Footprint Diameter (cm):
cm
Footprint Diameter (in):
in
Frequency:
Not Applicable
Groups:
Not Applicable
Includes Rechargeable Battery:
No
Interior Color:
Not Applicable
Light Modifier Bayonet Mount:
Not Applicable
Load Capacity (kg):
Not Applicable
Load Capacity (lb):
Not Applicable
Lumen Output 3200K:
3344
Lumen Output 5600K:
3344
Lux @ 0.5m 5600K:
Not Applicable
Lux @ 1m 2700K:
Not Applicable
Lux @ 1m 3200K:
1450
Lux @ 1m 5600K:
1540
Max Power Consumption:
50w
Maximum Height (in):
Not Applicable
Maximum Height (cm):
Not Applicable
Physical:

Minimum Height (cm):
Not Applicable
Minimum Height (in):
Not Applicable
Mount:
5/8" Receiver
Number of Rods:
Not Applicable
Operating Temperature:
Not Applicable
Power Source:
100-240V AC
'Product Diameter (cm):
Not Applicable
'Product Diameter (in):
Not Applicable
Product Inner Diameter (cm) Ring Lights Only:
Not Applicable
Product Inner Diameter (in) Ring Lights Only:
Not Applicable
Product Height (cm):
40.8cm
Product Height (in):
16.0in
Product Length (cm):
23.2cm
Product Length (in):
9.0in
Product Weight (kg):
1.3kg
Product Weight (lb):
2.86lb
Product Width (cm):
8.0cm
Product Width (in):
3.0in
Removable Front Diffusion:
Not Applicable
Removable Interior Baffle:
Not Applicable
Requires Speed Ring:
Not Applicable
Runtime @ 100% Brightness (Hours):
Not Applicable
Runtime @ 50% Brightness (Hours):
Not Applicable
Runtime @ 10% Brightness (Hours):
Not Applicable
Shape:
Not Applicable
TLCI:
93
Umbrella Shaft Diameter:
Not Applicable
Warranty:
Limited 2 Year Warranty (Extend to 3 Years Total With Online Registration)
Wireless Control Type:
None
Wireless Range:
Not Applicable
