Nanlite | SKU: FL-20G
- COMPACT POWERHOUSE - Control Unit is 16% smaller, fanless, can run on AC or 1 or 2 V-Mount batteries, and provides a formidable amount of output: 92310 Lux, 8576 fc at 1 meter
- G/M ADJUSTMENT - Provides the extremely useful ability to adjust green-to-magenta shift by +/- 80, made possible by the glass-protected W(RG) LED light source
- COMPREHENSIVE CONTROL - Bluetooth for direct control with the free NANLINK app for iOS & Android, locking ports for DMX/RDM, intuitive built-in controls, 2.4G for the WS-RC-C2 Remote Control and WS-TB-1 Transmitter Box (both sold separately)
- NEXT-GEN ADVANCEMENTS - Forza 500 II is fully redesigned: yoke has one-sided stepless lock, power and head cables are substantially longer, quick-release clamp is durable and versatile
- TRUST WHAT YOU SEE - Nanlite users praise the beautiful light our fixtures produce first and foremost, but light from Forza 500 II doesn't just look good—it's accurate. With an SSI of 74, CRI of 96, and TLCI of 97, you won't waste time in post fixing color issues.
Overview
The Nanlite Forza 500 II LED Spotlight is exceptionally compact and lightweight yet delivers 92310 Lux (8576 fc) at 1 meter with the included reflector. It was made for professional production with durable construction, control options for Bluetooth, 2.4G, and DMX/RDM, a glass-protected COB, a fully redesigned yoke, and a Control Unit that can run on AC or side-mounted 26V or 14.4V-14.8V V-Mount batteries (sold separately). It has a highly accurate SSI rating of 74, a CRI of 96, and TLCI of 97, and lets you easily adjust the green-to-magenta shift by +/- 80, which is made possible by its W(RG) LED source.
This is the second-generation of this fixture and it's been improved in every regard. The Control Unit is 16% smaller, it can run on a single V-Mount battery, and it doesn’t have a fan. The included cables are substantially longer: 19.8 feet (6 m) for the power cable, 9.8 feet (3 m) for the head cable, and even longer head cables are available separately. It's compatible with a vast number of Bowens Mount light modifiers, including Nanlite's own offerings. A useful 55° reflector is included, and with the FL-20G Fresnel (sold separately), output increases to 20860 Lux (1938 fc) at 3 meters.
A stepless, one-sided lock allows easy positioning, and an umbrella mount gives you more light-shaping options. The upgraded yoke allows 360° rotation, it’s curved to provide greater tilting range for large modifiers, and the base is compatible with baby pins and junior pin mounts. Dimming can be fine-tuned in 0.1% increments. The head fan has 4 modes: Smart, Full Speed, Low Speed, and Off for absolute silence. A redesigned padded carrying case with improved cushioning safely holds everything. A USB port allows firmware updates that will add new features in the future, and it can supply power to wireless DMX receivers (sold separately).
Compact Powerhouse
The Forza 500 II provides a substantial amount of output from a head that weighs only 8.5 lbs (3.8 kg) and is just 13.9 x 9.1 x 5.6" in size.
Trust What You See
Users praise our beautiful quality of light first and foremost, but Forza 500 II doesn't just look good—it's accurate. With SSI: 74, CRI: 96, TLCI: 97, TM-30 Rf: Avg.95, TM-30 Rg Avg.102, you won't waste time in post fixing color issues.
App and DMX Control
You can fully control Forza 500 II with your phone through Bluetooth with the free NANLINK app for iOS and Android. 2.4G lets you use the WS-RC-C2 Remote (sold separately) or the WS-TB-1 Transmitter Box (sold separately) for larger setups. Locking DMX/RDM ports facilitate advanced control.
G/M Adjustment
When you mix with ambient light and other fixtures, adjusting the green-to-magenta shift lets the 500 II perfectly match. This is also useful when you want to achieve a specific look, but you need to tweak the color to get there. It's rare for a spotlight to have this feature, but you get it in Forza 500 II.
Improvements All Around

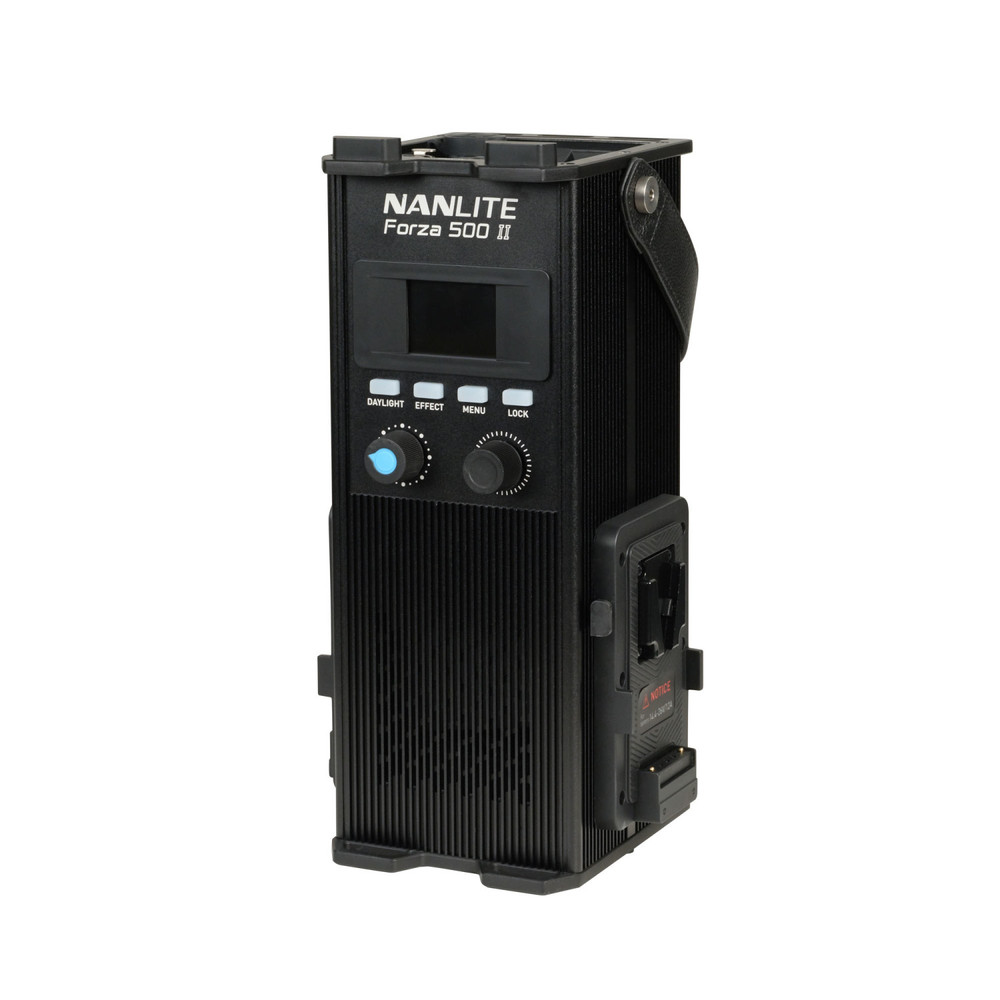

Control Unit has easy-access, side-mount battery plates, an easy-to-read OLED screen, intuitive on-board controls with a Lock button, and all cables attach to the top so it can rest on surfaces when in use. The quick-release clamp is durable, easy to use, and fits round or square stands and trusses. 11 effects can be customized and saved as new presets in the NANLINK app.
Decades of Focus
This point-source light was made by a company that's been solely focused on LED lights for video production and photography for over 30 years. All of this experience is evident in the Forza 500 II.
Read More
This is the second-generation of this fixture and it's been improved in every regard. The Control Unit is 16% smaller, it can run on a single V-Mount battery, and it doesn’t have a fan. The included cables are substantially longer: 19.8 feet (6 m) for the power cable, 9.8 feet (3 m) for the head cable, and even longer head cables are available separately. It's compatible with a vast number of Bowens Mount light modifiers, including Nanlite's own offerings. A useful 55° reflector is included, and with the FL-20G Fresnel (sold separately), output increases to 20860 Lux (1938 fc) at 3 meters.
A stepless, one-sided lock allows easy positioning, and an umbrella mount gives you more light-shaping options. The upgraded yoke allows 360° rotation, it’s curved to provide greater tilting range for large modifiers, and the base is compatible with baby pins and junior pin mounts. Dimming can be fine-tuned in 0.1% increments. The head fan has 4 modes: Smart, Full Speed, Low Speed, and Off for absolute silence. A redesigned padded carrying case with improved cushioning safely holds everything. A USB port allows firmware updates that will add new features in the future, and it can supply power to wireless DMX receivers (sold separately).
Compact Powerhouse
The Forza 500 II provides a substantial amount of output from a head that weighs only 8.5 lbs (3.8 kg) and is just 13.9 x 9.1 x 5.6" in size.
Trust What You See
Users praise our beautiful quality of light first and foremost, but Forza 500 II doesn't just look good—it's accurate. With SSI: 74, CRI: 96, TLCI: 97, TM-30 Rf: Avg.95, TM-30 Rg Avg.102, you won't waste time in post fixing color issues.
App and DMX Control
You can fully control Forza 500 II with your phone through Bluetooth with the free NANLINK app for iOS and Android. 2.4G lets you use the WS-RC-C2 Remote (sold separately) or the WS-TB-1 Transmitter Box (sold separately) for larger setups. Locking DMX/RDM ports facilitate advanced control.
G/M Adjustment
When you mix with ambient light and other fixtures, adjusting the green-to-magenta shift lets the 500 II perfectly match. This is also useful when you want to achieve a specific look, but you need to tweak the color to get there. It's rare for a spotlight to have this feature, but you get it in Forza 500 II.
Improvements All Around
Control Unit has easy-access, side-mount battery plates, an easy-to-read OLED screen, intuitive on-board controls with a Lock button, and all cables attach to the top so it can rest on surfaces when in use. The quick-release clamp is durable, easy to use, and fits round or square stands and trusses. 11 effects can be customized and saved as new presets in the NANLINK app.
Decades of Focus
This point-source light was made by a company that's been solely focused on LED lights for video production and photography for over 30 years. All of this experience is evident in the Forza 500 II.
Technical Data
- Physical:
- Product Weight (lb):
- 8.6lb
- Warranty:
- Limited 2-Year Warranty (Extend to 3 Years Total With Online Registration)
- Accessory Port(s):
- Bowens Mount
- Battery Compatibility:
- 14.8V, 26V V-Mount battery
- Battery Included:
- No
- Battery Required:
- V-Mount battery
- Beam Angle Flood:
- 120°
- Color Temperature (Kelvin):
- 5600K（G/M±80）
- Compatible Remote:
- NANLINK APP, WS-RC-C2 remote controler
- Compatible Wifi Adapter:
- Nanlink WS-TB-1 Transmitter box
- Cooling System:
- Fan
- CRI:
- 96.0
- Dimming:
- 0-100%, by 0.1% increment
- DMX Control:
- Yes
- Frequency:
- 2.4Ghz
- Includes Rechargeable Battery:
- No
- Light Modifier Bayonet Mount:
- Bowens Mount
- Lux @ 1m 5600K:
- 22550.0
- Max Power Consumption:
- 560W
- Operating Temperature:
- ta45℃
- Power Source:
- DC(Battery)14.4V-26V/12A AC100-240V 50/60Hz
- Product Height (cm):
- 14.2cm
- Product Height (in):
- 5.6in
- Product Length (cm):
- 35.2cm
- Product Length (in):
- 14.0in
- Product Weight (kg):
- 3.88kg
- Product Width (cm):
- 23.0cm
- Product Width (in):
- 9.1in
- TLCI:
- 97.0
- Wireless Control Type:
- 2.4GHz, Bluetooth, DMX/RDM
Lux / Foot Candles
| Bare Bulb and Reflector | With Optional FL-20G | ||
|---|---|---|---|
| @ 1m 5600K | 22550 lux / 2095 fc | @ 3m 5600K Spot | 20860 lux / 1938 fc |
| @ 3m 5600K | 2715 lux / 252 fc | @ 5m 5600K Spot | 7311 lux / 679 fc |
| @ 5m 5600K | 1120 lux / 104 fc | @ 7m 5600K Spot | 3675 lux / 341 fc |
| @ 1m 5600K with Reflector | 92310 lux / 8576 fc | @ 3m 5600K Flood | 6744 lux / 627 fc |
| @ 3m 5600K with Reflector | 8376 lux / 778 fc | @ 5m 5600K Flood | 2576 lux / 239 fc |
| @ 5m 5600K with Reflector | 3030 lux / 281 fc | @ 7m 5600K Flood | 1410 lux / 131 n |
| With Optional PJ-BM-19 | With Optional PJ-BM-36 | ||
| @ 3m 5600K | 21010 lux / 1952 fc | @ 3m 5600K | 7463 lux / 693 fc |
| @ 5m 5600K | 6818 lux / 633 fc | @ 5m 5600K | 2526 lux / 235 fc |
| @ 7m 5600K | 3260 lux / 303 fc | @ 7m 5600K | 1275 lux / 118 fc |
Dimensions
- Product Height (cm)
- 14.2
- Product Height (in)
- 5.6
- Product Length (cm)
- 35.2
- Product Length (in)
- 14.0
- Product Weight (kg)
- 3.88
- Product Weight (lb)
- 8.6
- Product Width (cm)
- 23.0
- Product Width (in)
- 9.1
Special Effects
11 BUILT-IN PRACTICAL EFFECTS: INT LOOP/ FLASH/ PULSE/ STORM/ TV/ PAPARAZZI/ CANDLE/FIRE/ BAD BULB/ FIREWORK/ EXPLOSION AND WELDING.
