- STUDIO-QUALITY LIGHTING - The Nanlite MixPad II 27C features adjustable color temperature from 2700K-6500K with green to magenta shift (only available in hard-light mode), 360 degrees of hue control with 100 levels of color saturation adjustment, an average CRI of 98, and an average TLCI of 95.
- POWERFUL OUTPUT - At a distance of 3.3 ft (1m), the MixPad II 27C emits 842 lux of 5600K balanced light in hard light mode giving you a level of brightness usually found in much larger fixtures.
- 3 DIFFERENT LED LIGHT SOURCES - The the MixPad II 27C can switch between a "traditional" multi-LED array for hard light with more throw, a diffuse SMD LED panel for soft, flattering light, and a tunable RGB array for colorful, creative effects at the push of a button.
- FULL WIRELESS APP CONTROL - Built-in Bluetooth gives you deep wireless control with the free NANLINK mobile app for iOS and Android. You can create scenes, group-control the 27C with other lights, and easily save recallable presets.
- MULTIPLE POWER OPTIONS - Perfect for use in the studio or on location, the MixPad II 27C can run off either the included AC adapter, 2x Sony NP-F batteries (Not Included), or D-tap cable (Not Included).
Overview

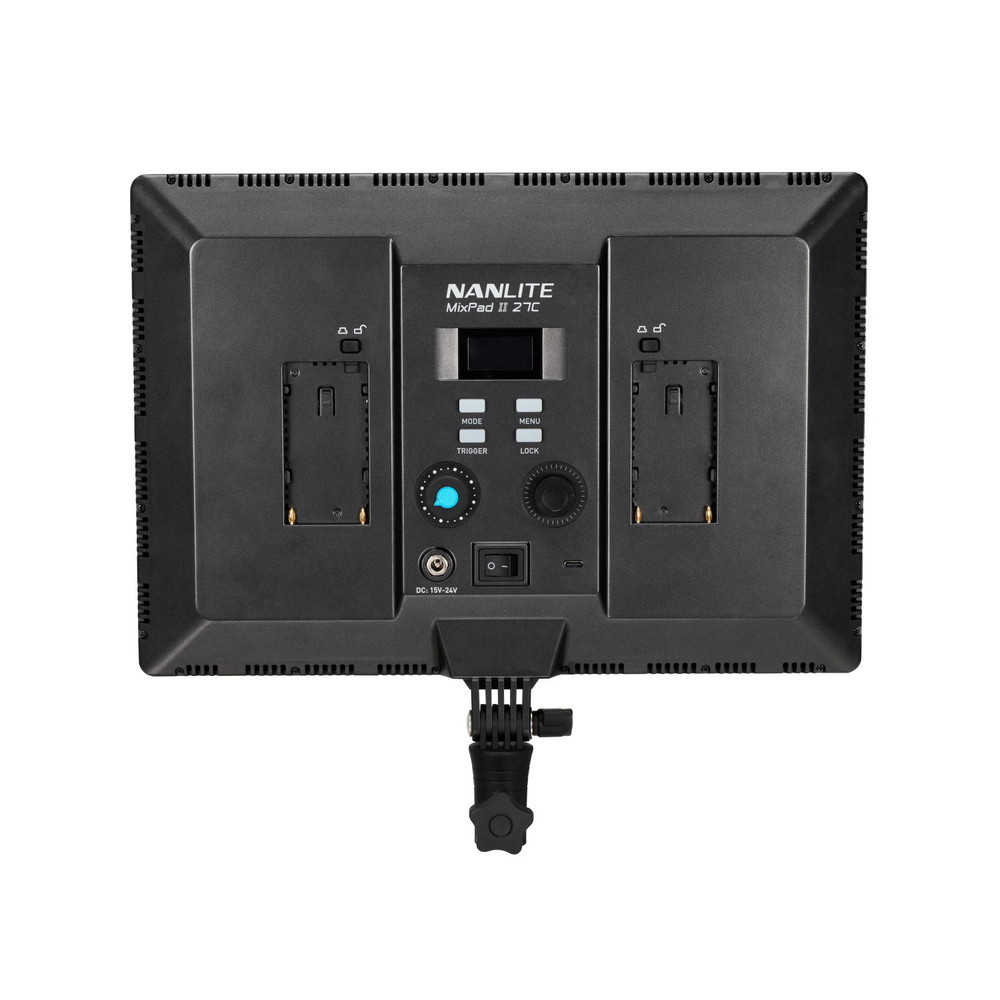

The Nanlite MixPad II 27C is a thin and lightweight RGBWW LED panel with remarkably bright output and the ability to switch between hard light, diffuse soft light, and vivid RGB colors. A sturdy 5/8" mount with a locking tilt control is built into the base to confidently attach it to stands. This is a powerful LED panel light that provides impressive versatility, highly color-accurate light, a durable build quality, built-in customizable effects, the ability to run on NP-F batteries (Not Included) or the included AC adapter, easy-to-use buttons and dials and Bluetooth for deep wireless control with the free NANLINK app for iOS and Android. Dedicated accessories are sold separately, such as a softbox, metal barndoors, and an eggcrate grid to minimize spill.
Studio-Quality Lighting
The Nanlite MixPad II 27C features adjustable color temperature from 2700K-6500K with green to magenta shift*, 360 degrees of hue control with 100 levels of color saturation adjustment, an average CRI of 98, and an average TLCI of 95. (*green to magenta shift only available in hard light mode)
Powerful Output
At a distance of 3.3 ft (1m), the MixPad II 27C emits 842 lux of 5600K balanced light in hard light mode giving you a level of brightness usually found in much larger fixtures.
Three Different LED Light Sources
The the MixPad II 27C can switch between a ""traditional"" multi-LED array for hard light with more throw, a diffuse SMD LED panel for soft, flattering light, and a tunable RGB array for colorful, creative effects at the push of a button.
Full Wireless App Control
Built-in Bluetooth gives you deep wireless control with the free NANLINK mobile app for iOS and Android. You can create scenes, group-control the 27C with other lights, and easily save recallable presets.
Exceptionally Slender
Weighing just under 3lbs and a with width of 2.2 inches, the MixPad II 27C maintains a minimal footprint in a gear bag, on set, or even on a desktop for video conferencing.
Multiple Power Options
Perfect for use in the studio or on location, the MixPad II 27C can run off either the included AC adapter, 2x Sony NP-F batteries (Not Included), or D-tap cable (Not Included).
Excellent Modifier Accessories
The Nanlite Barndoor and Softbox Set for MixPad II 27C (Not Included) supplies you with a high-quality softbox when you need the softest possible light and a premium set of metal barndoors, the model number is BDMPII27CSB. The Nanlite Fabric Grid for LumiPad 25 and MixPad II 27C fits this panel perfectly and it does a great job of reducing spill and adding directionality, the mdel number is EC-LP25.
Studio-Quality Lighting
The Nanlite MixPad II 27C features adjustable color temperature from 2700K-6500K with green to magenta shift*, 360 degrees of hue control with 100 levels of color saturation adjustment, an average CRI of 98, and an average TLCI of 95. (*green to magenta shift only available in hard light mode)
Powerful Output
At a distance of 3.3 ft (1m), the MixPad II 27C emits 842 lux of 5600K balanced light in hard light mode giving you a level of brightness usually found in much larger fixtures.
Three Different LED Light Sources
The the MixPad II 27C can switch between a ""traditional"" multi-LED array for hard light with more throw, a diffuse SMD LED panel for soft, flattering light, and a tunable RGB array for colorful, creative effects at the push of a button.
Full Wireless App Control
Built-in Bluetooth gives you deep wireless control with the free NANLINK mobile app for iOS and Android. You can create scenes, group-control the 27C with other lights, and easily save recallable presets.
Exceptionally Slender
Weighing just under 3lbs and a with width of 2.2 inches, the MixPad II 27C maintains a minimal footprint in a gear bag, on set, or even on a desktop for video conferencing.
Multiple Power Options
Perfect for use in the studio or on location, the MixPad II 27C can run off either the included AC adapter, 2x Sony NP-F batteries (Not Included), or D-tap cable (Not Included).
Excellent Modifier Accessories
The Nanlite Barndoor and Softbox Set for MixPad II 27C (Not Included) supplies you with a high-quality softbox when you need the softest possible light and a premium set of metal barndoors, the model number is BDMPII27CSB. The Nanlite Fabric Grid for LumiPad 25 and MixPad II 27C fits this panel perfectly and it does a great job of reducing spill and adding directionality, the mdel number is EC-LP25.
Technical Data
- Accepts Grids:
- Not Applicable
- Accessory Port(s):
- Not Applicable
- Amp-Hours:
- Not Applicable
- Battery Capacity (Wh):
- Not Applicable
- Battery Cells:
- Not Applicable
- Battery Chemistry:
- Not Applicable
- Battery Compatibility:
- Sony NP-F550 / F750 / F970 series (Not Included)
- Battery Included:
- No
- Battery Maximum Output Voltage:
- Not Applicable
- Battery Required:
- No
- Beam Angle Flood:
- 45 degrees
- Beam Angle Spot:
- Hard light: 45° Soft light: 120°
- Channels:
- Not Applicable
- Charge Time to Full (Hours):
- Battery Dependent
- Charge Time to 80% (Hours):
- N/A
- Charger:
- Not Included
- Closed Length (cm):
- Not Applicable
- Closed Length (in):
- Not Applicable
- Color Temperature (Kelvin):
- 2700K-6500K
- Compatible D-Tap Adapter:
- Nanlite CB-DT-DC D-Tap cable with DC Socket
- Compatible Remote:
- No
- Compatible Wifi Adapter:
- Nanlink WS-TB-1 Transmitter box
- Cooling System:
- Passive
- CRI:
- Average 95
- Depth Rating:
- 0
- Dimming:
- 0-100%
- DMX Control:
- No
- Electrical Load Capacity:
- Not Applicable
- Footprint Diameter (cm):
- cm
- Footprint Diameter (in):
- in
- Frequency:
- No
- Groups:
- Not Applicable
- Includes Rechargeable Battery:
- No
- Interior Color:
- Not Applicable
- Light Modifier Bayonet Mount:
- Not Applicable
- Load Capacity (kg):
- Not Applicable
- Load Capacity (lb):
- Not Applicable
- Lumen Output 3200K:
- 2760
- Lumen Output 5600K:
- 2795
- Lux @ 0.5m 5600K:
- Hard Light: 11593 Soft Light: 1998
- Lux @ 1m 2700K:
- Hard Light: 2964 Soft Light: 446
- Lux @ 1m 3200K:
- Hard Light: 2898 Soft Light: 450
- Lux @ 1m 5600K:
- Hard Light: 2898 Soft Light: 500
- Max Power Consumption:
- 36W
- Maximum Height (in):
- Not Applicable
- Maximum Height (cm):
- Not Applicable
- Physical:
- Minimum Height (cm):
- Not Applicable
- Minimum Height (in):
- Not Applicable
- Mount:
- 5/8" Receiver
- Number of Rods:
- Not Applicable
- Operating Temperature:
- Not Applicable
- Power Source:
- DC15V/2.4A
- 'Product Diameter (cm):
- Not Applicable
- 'Product Diameter (in):
- Not Applicable
- Product Inner Diameter (cm) Ring Lights Only:
- Not Applicable
- Product Inner Diameter (in) Ring Lights Only:
- Not Applicable
- Product Height (cm):
- 32.2cm
- Product Height (in):
- 12.67in
- Product Length (cm):
- 34.8cm
- Product Length (in):
- 14.0in
- Product Weight (kg):
- 1.35kg
- Product Weight (lb):
- 3.0lb
- Product Width (cm):
- 5.7cm
- Product Width (in):
- 2.2in
- Removable Front Diffusion:
- Not Applicable
- Removable Interior Baffle:
- Not Applicable
- Requires Speed Ring:
- Not Applicable
- Runtime @ 100% Brightness (Hours):
- 2x NPF-F750 battery in 5600K: 1.5h 2x NPF-F970 battery in 5600K: 2h 48mins
- Runtime @ 50% Brightness (Hours):
- 2x NPF-F750 battery in 5600K: 2h 54mins 2x NPF-F970 battery in 5600K: 4h 42mins
- Runtime @ 10% Brightness (Hours):
- 2x NPF-F750 battery in 5600K: 10h 25mins 2x NPF-F970 battery in 5600K: 18h 37mins
- Shape:
- Not Applicable
- TLCI:
- Average 98
- Umbrella Shaft Diameter:
- Not Applicable
- Warranty:
- Limited 2-Year Warranty (Extend to 3 Years Total With Online Registration)
- Wireless Control Type:
- Bluetooth
- Wireless Range:
- Not Applicable
