Nanlite | SKU: HDT121MC
- GET UNIQUE, STUDIO QUALITY LIGHTING ANYWHERE - With an expanded and more precise color temperature range from 2700K-12000K with g/m adjustment, an average CRI of 97, an average TLCI of 98, plus RGB hue and saturation control, the PavoTube II 15XR 2' RGBWW LED Pixel Tube packs studio-quality lighting into a hardy, go-anywhere package.
- FROM A NEXT-GEN LED TUBE - Nanlite drew on the feedback from PavoTube owners across the world to evolve their LED Tube design. Enhancements include brighter output with more uniform diffusion, an upgraded control panel with locking buttons, built-in CRMX, DMX compatibility, and enhanced app control.
- WITH NO CORDS NEEDED - Powered an internal 2200mAh Li-ion battery, the PavoTube II 15XR can run for 1 hour and 26 minutes at full brightness completely untethered. Full battery recharge is achieved in 3 hours via the included AC adapter, which can also power the Pavotube II 15XR during longer shoots.
- PIXEL-BASED SPECIAL EFFECTS - In addition to 15 adjustable practical special effects, PavoTube II 15XR features 10 new pixel-based effects expanding the creative possibilities further than ever before. Pixel-based effects include Hue Loop, CCT Loop, INT Loop, Multi-color, Gradient, Scrolling, Marching, Flame, Rainbow, and Driving.
- AND A ROBUST METAL HOUSING - The PavoTube II 15XR's upgraded metal housing makes worrying about an accidental drop or risky light placements a thing of the past. Plus, 3 incorporated ¼-20" receivers greatly expand mounting options.
Overview

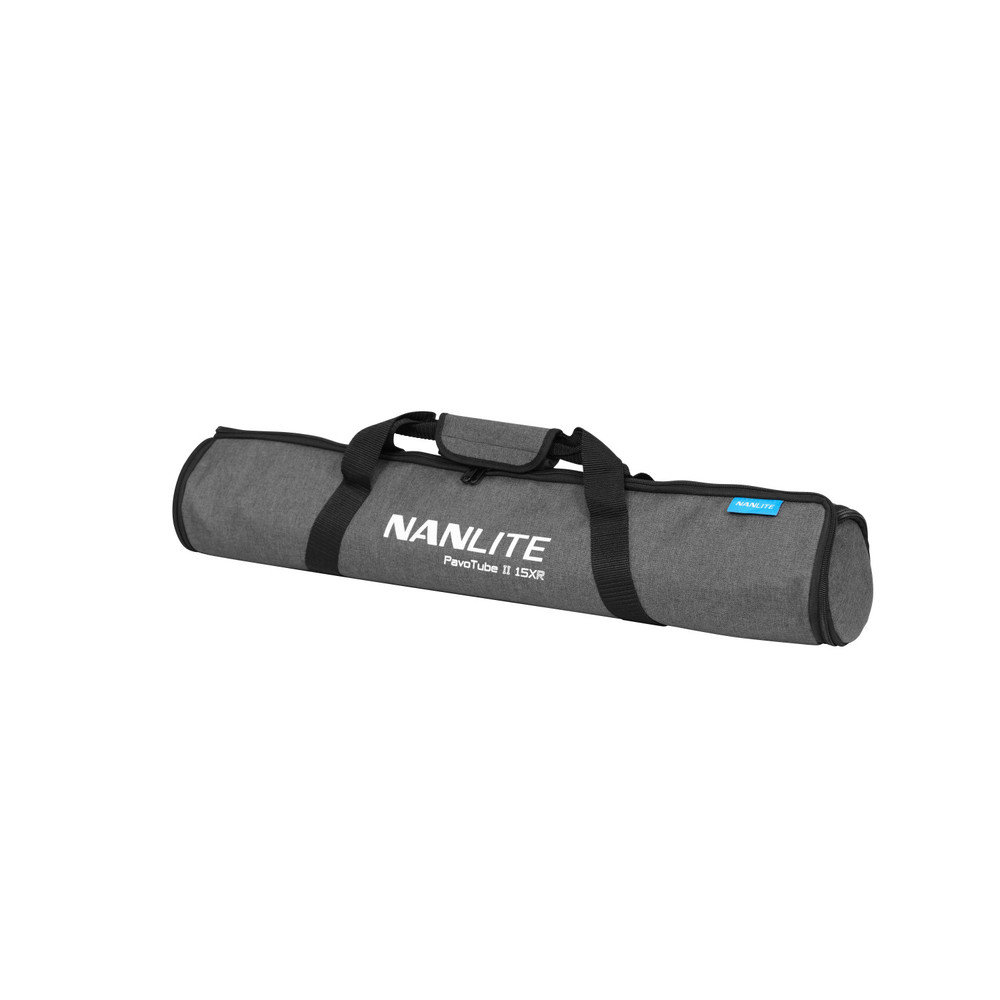

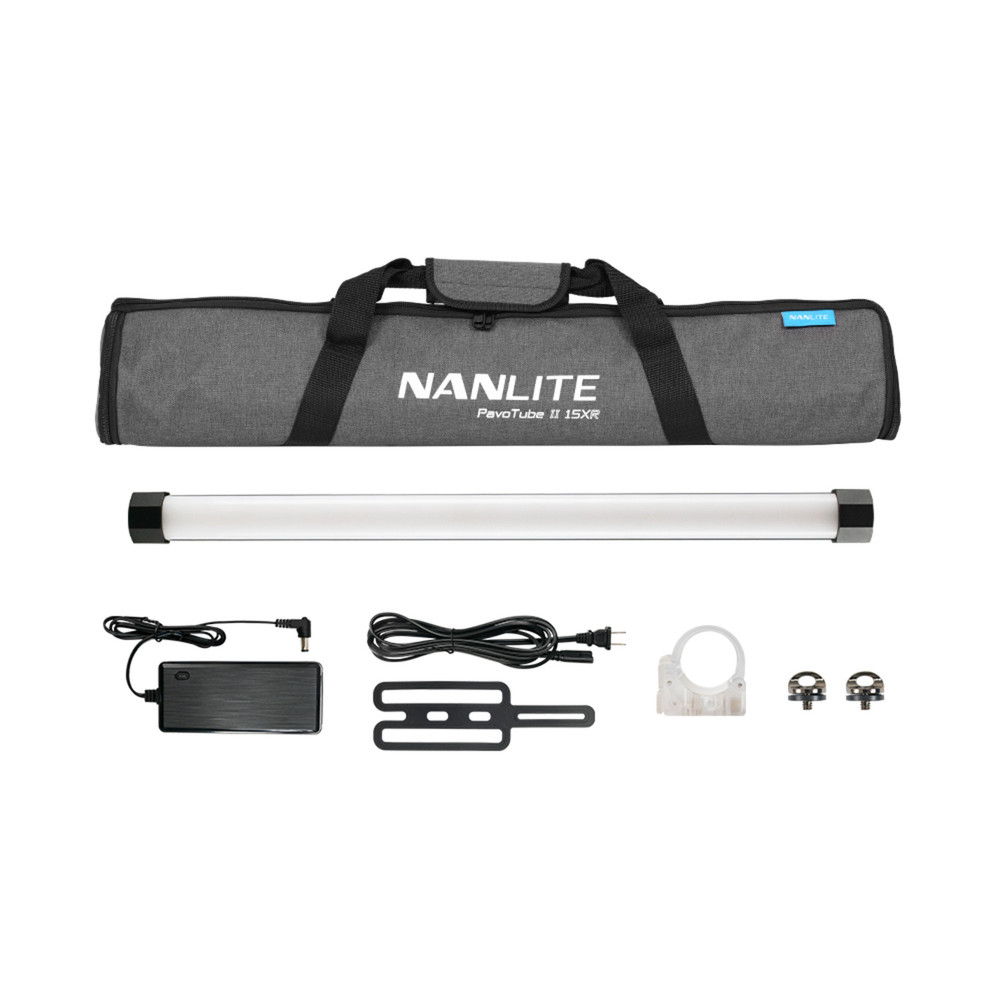

The Nanlite PavoTube II 15XR is an RGBWW LED pixel tube that has the same design, features, and physical attributes as the standard PavoTube II 15X, with the addition of having CRMX LumenRadio wireless DMX built in. The PavoTube X-Series have been refined based on feedback from creators around the globe with features including pixel-based special effects, brighter output, more uniform diffusion, robust metal housings, DMX compatibility, wireless 2.4G, Bluetooth control with the free NANLINK mobile app for iOS and Android, and CRMX in the XR models. It includes accessories and a padded carrying bag.
Get Unique, Studio Quality Lighting Anywhere
With an expanded and more precise color temperature range from 2700K-12000K with green to magenta adjustment, an average CRI of 97, an average TLCI of 98, plus RGB hue and saturation control, the PavoTube II 15XR 2' RGBWW LED Pixel Tube packs studio-quality lighting into a hardy, go-anywhere package.
From a Next-Generation LED Tube

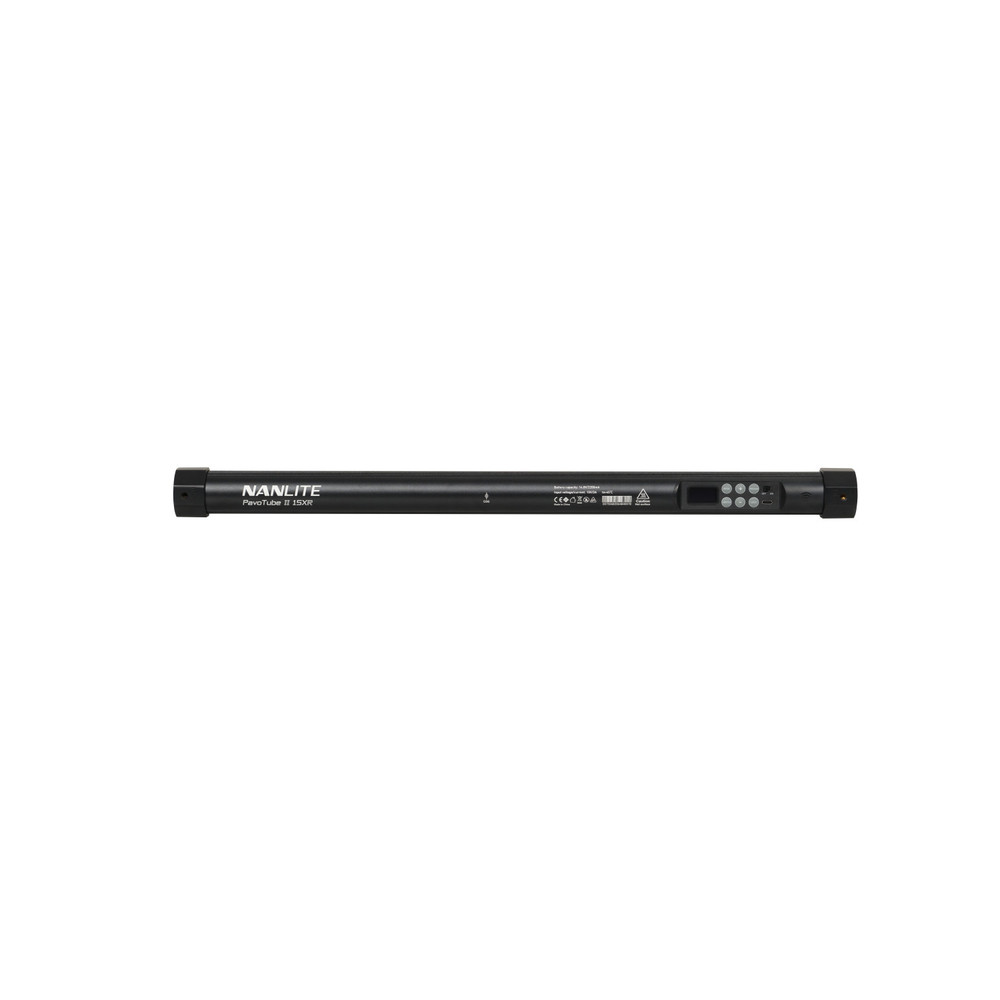

Nanlite drew on the feedback from PavoTube owners across the world to evolve their LED Tube design. Enhancements include brighter output with more uniform diffusion, a pixel density of 8 to create eye-catching animated effects, an upgraded control panel with locking buttons, DMX compatibility, and full wireless control through 2.4G and Bluetooth with the free NANLINK mobile app for iOS and Android, and CRMX on the XR models.
With No Cords Needed

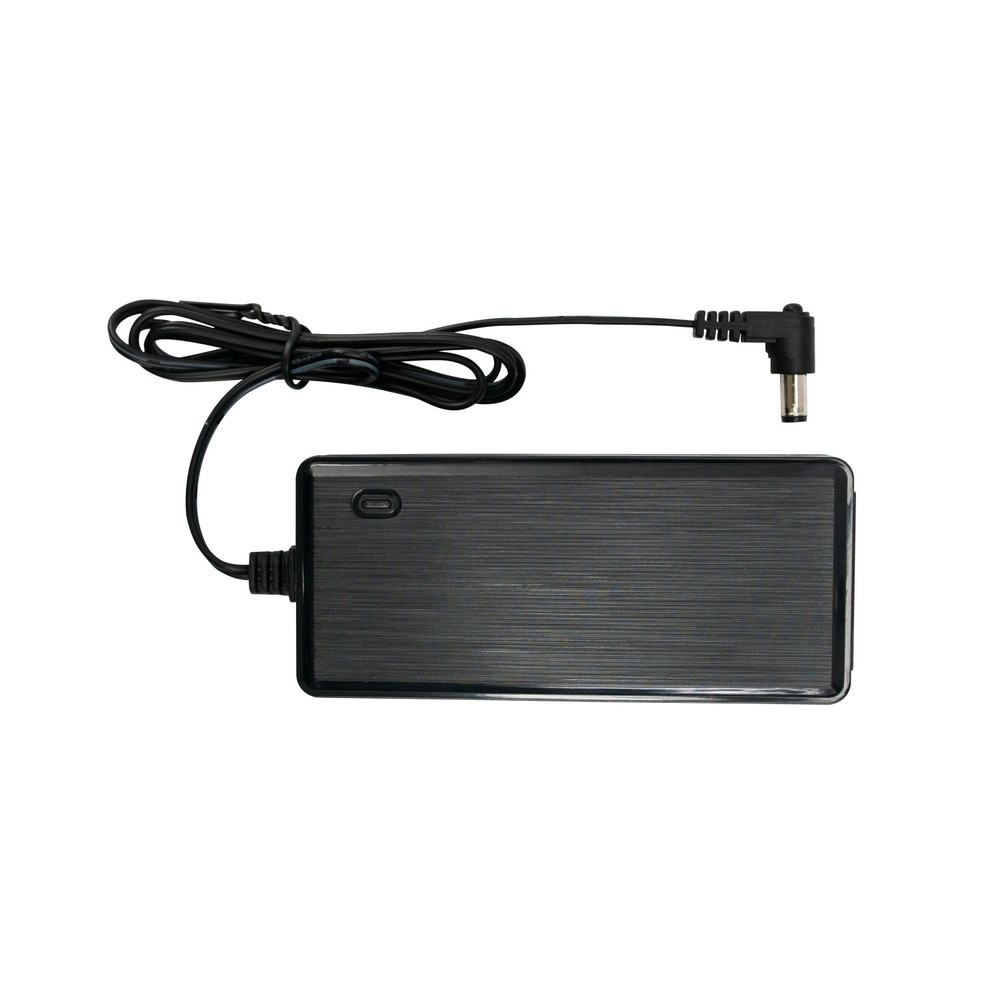

Powered by an internal 2200mAh Li-ion battery, the PavoTube II 15XR can run for 1 hour and 26 minutes at full brightness completely untethered. Full battery recharge is achieved in 3 hours via the included AC adapters, which can also power the Pavotube II 15XR during longer shoots.

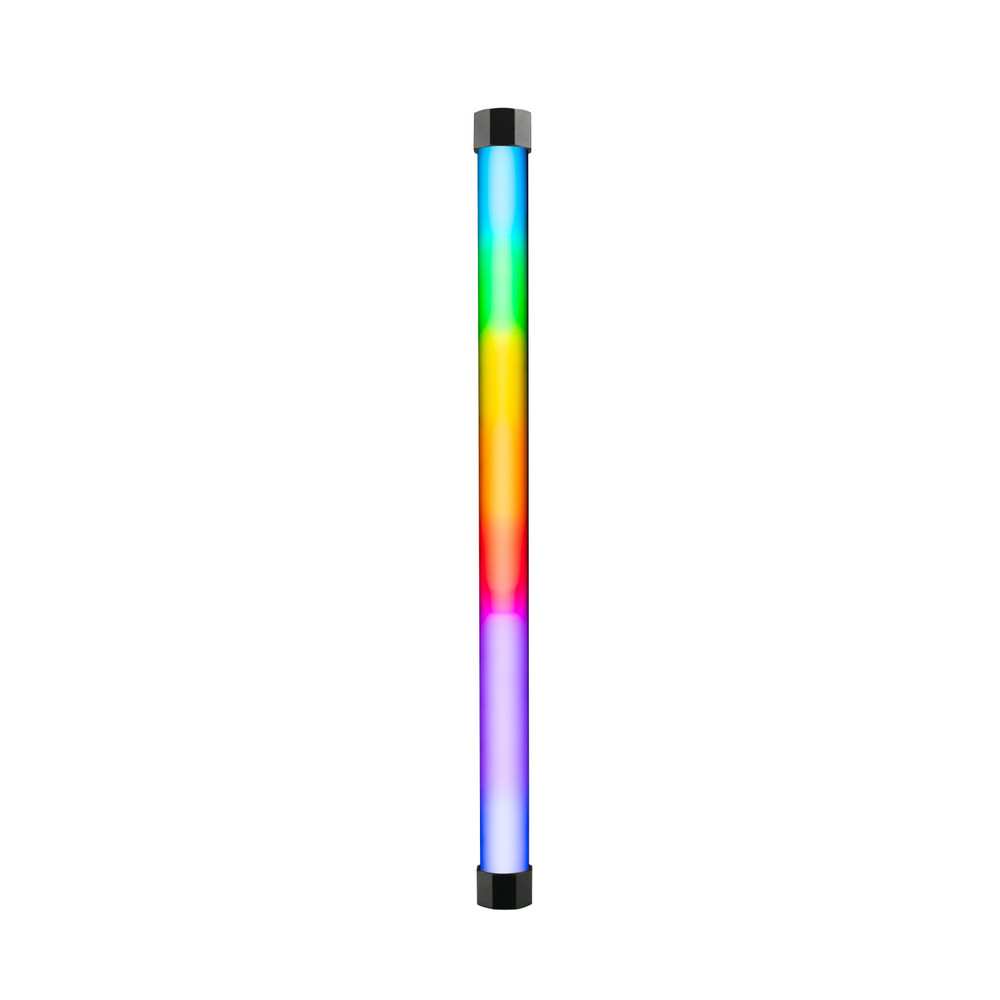

Pixel Based Special Effects
In addition to 15 adjustable practical special effects, PavoTube II 15XR features 10 new pixel-based effects expanding the creative possibilities further than ever before. Pixel-based effects include Hue Loop, CCT Loop, INT Loop, Multi-color, Gradient, Scrolling, Marching, Flame, Rainbow, and Driving. Practical effects include Hue Loop, CCT Loop, INT Loop, CCT Flash, HUE Flash, CCT Pulse, Hue Pulse, Storm, Police Car, TV, Paparazzi, Candle/Fire, Disco, Bad Bulb, Firework, Explosion, and Welding.
And A Robust Metal Housing
The PavoTube II 15XR's upgraded metal housing makes worrying about an accidental drop or risky light placements a thing of the past. Plus, three incorporated ¼-20" receivers greatly expand mounting options.
Read More
Get Unique, Studio Quality Lighting Anywhere
With an expanded and more precise color temperature range from 2700K-12000K with green to magenta adjustment, an average CRI of 97, an average TLCI of 98, plus RGB hue and saturation control, the PavoTube II 15XR 2' RGBWW LED Pixel Tube packs studio-quality lighting into a hardy, go-anywhere package.
From a Next-Generation LED Tube
Nanlite drew on the feedback from PavoTube owners across the world to evolve their LED Tube design. Enhancements include brighter output with more uniform diffusion, a pixel density of 8 to create eye-catching animated effects, an upgraded control panel with locking buttons, DMX compatibility, and full wireless control through 2.4G and Bluetooth with the free NANLINK mobile app for iOS and Android, and CRMX on the XR models.
With No Cords Needed
Powered by an internal 2200mAh Li-ion battery, the PavoTube II 15XR can run for 1 hour and 26 minutes at full brightness completely untethered. Full battery recharge is achieved in 3 hours via the included AC adapters, which can also power the Pavotube II 15XR during longer shoots.
Pixel Based Special Effects
In addition to 15 adjustable practical special effects, PavoTube II 15XR features 10 new pixel-based effects expanding the creative possibilities further than ever before. Pixel-based effects include Hue Loop, CCT Loop, INT Loop, Multi-color, Gradient, Scrolling, Marching, Flame, Rainbow, and Driving. Practical effects include Hue Loop, CCT Loop, INT Loop, CCT Flash, HUE Flash, CCT Pulse, Hue Pulse, Storm, Police Car, TV, Paparazzi, Candle/Fire, Disco, Bad Bulb, Firework, Explosion, and Welding.
And A Robust Metal Housing
The PavoTube II 15XR's upgraded metal housing makes worrying about an accidental drop or risky light placements a thing of the past. Plus, three incorporated ¼-20" receivers greatly expand mounting options.
Technical Data
- Accessory Port(s):
- No
- Amp-Hours:
- 2200mAh
- Battery Capacity (Wh):
- 32.6
- Battery Cells:
- 4
- Battery Chemistry:
- Li-Ion
- Battery Included:
- Yes
- Battery Maximum Output Voltage:
- 14.8V
- Battery Required:
- Yes
- Charge Time to Full (Hours):
- About 3 hours
- Charger:
- AC Adapter
- Color Temperature (Kelvin):
- 2700K-12000K
- Compatible D-Tap Adapter:
- Nanlite CB-DT-DC D-Tap cable with DC Socket
- Compatible Remote:
- WS-RC-C2 remote control
- Compatible Wifi Adapter:
- Nanlink WS-TB-1 Transmitter Box
- Cooling System:
- No
- CRI:
- Average 97
- Depth Rating:
- IP 20
- Dimming:
- 0-100%
- DMX Control:
- Yes
- Electrical Load Capacity:
- 32.5W
- Frequency:
- 2.4Ghz
- Includes Rechargeable Battery:
- Yes
- Lumen Output 3200K:
- 1187
- Lumen Output 5600K:
- 1278
- Lux @ 0.5m 5600K:
- 1507
- Lux @ 1m 2700K:
- 343
- Lux @ 1m 3200K:
- 350
- Lux @ 1m 5600K:
- 377
- Max Power Consumption:
- 18W
- Physical:
- Mount:
- T12, 3x 1/4 20", Magnets
- Operating Temperature:
- ta45℃
- Power Source:
- DC15V/2A
- 'Product Diameter (cm):
- 4.3
- 'Product Diameter (in):
- 1.7
- Product Length (cm):
- 60.0cm
- Product Length (in):
- 24.0in
- Product Weight (kg):
- 0.82kg
- Product Weight (lb):
- 1.8lb
- Runtime @ 100% Brightness (Hours):
- 1h 26 mins
- Runtime @ 50% Brightness (Hours):
- 2h 41 mins
- Runtime @ 10% Brightness (Hours):
- 9 h 40 mins
- TLCI:
- Average 98
- Warranty:
- Limited 2 Year Warranty (Extend to 3 Years Total With Online Registration)
- Wireless Control Type:
- CRMX, 2.4GHz, Bluetooth, DMX/RDM
Lux / Foot Candles
| Distance and CCT | Distance and Color | ||
|---|---|---|---|
| @ 0.5m 2700K | 1374 lux / 127.6 fc | @ 0.5m Red | 588 lux / 54.6 fc |
| @ 1m 2700K | 343 lux / 31.8 fc | @ 1m Red | 150 lux / 14 fc |
| @ 2m 2700K | 86 lux / 8 fc | @ 2m Red | 39 lux / 3.6 fc |
| @ 3m 2700K | 38 lux / 3.5 fc | @ 3m Red | 17 lux / 1.5 fc |
| @ 0.5m 3200K | 1399 lux / 130 fc | @ 0.5m Green | 1212 lux / 112.6 fc |
| @ 1m 3200K | 350 lux / 32.5 fc | @ 1m Green | 308 lux / 28.6 fc |
| @ 2m 3200K | 87 lux / 8.1 fc | @ 2m Green | 77 lux / 7.1 fc |
| @ 3m 3200K | 39 lux / 3.6 fc | @ 3m Green | 34 lux / 3.1 fc |
| @ 0.5m 5600K | 1507 lux / 140 fc | @ 0.5m Blue | 248 lux / 23 fc |
| @ 1m 5600K | 377 lux / 35 fc | @ 1m Blue | 63 lux / 5.8 fc |
| @ 2m 5600K | 94 lux / 8.7 fc | @ 2m Blue | 15 lux / 1.4 fc |
| @ 3m 5600K | 42 lux / 3.9 fc | @ 3m Blue | 7 lux / 0.6 fc |
| @ 0.5m 6500K | 1545 lux / 143.5 fc | ||
| @ 1m 6500K | 386 lux / 35.8 fc | ||
| @ 2m 6500K | 97 lux / 9 fc | ||
| @ 3m 6500K | 43 lux / 4 fc | ||
| @ 0.5m 7500K | 1542 lux / 143.2 fc | ||
| @ 1m 7500K | 385 lux / 35.7 fc | ||
| @ 2m 7500K | 96 lux / 8.9 fc | ||
| @ 3m 7500K | 43 lux / 4 fc | ||
| @ 1m 10000K | 359 lux / 33.3 fc | ||
| @ 2m 10000K | 90 lux / 8.3 fc | ||
| @ 3m 10000K | 40 lux / 3.7 fc | ||
| @ 1m 12000K | 333 lux / 31 fc | ||
| @ 2m 12000K | 83 lux / 7.7 fc | ||
| @ 3m 12000K | 37 lux / 3.4 fc |
Dimensions
- Product Length (cm)
- 60
- Product Length (in)
- 24
- Product Weight (kg)
- 0.82
- Product Weight (lb)
- 1.8
Special Effects
15 BUILT-IN PRACTICAL EFFECTS: HUE LOOP/ CCT LOOP/ INT LOOP/ CCT FLASH/ HUE FLASH/ CCT PULSE/ HUE PULSE/ STORM/ POLICE CAR/ TV/ PAPARAZZI/ CANDLE/FIRE/ DISCO/ BAD BULB/ FIREWORK/ EXPLOSION AND WELDING 10 PIXEL EFFECTS: HUE LOOP/ CCT LOOP/ INT LOOP/ MULTI-COLOR/ GRADIENT/ SCROLLING/ MARCHING/ FLAME/ RAINBOW/ DRIVING
