Nanlite | SKU: BDPTII30CEC
- ACCURATE VERSATILITY - With a class-leading SSI of 82 (3200K) and 72 (5600K), CRI of 97 and TLCI of 98, an expanded CCT range of 2700K-7500K, and a wide G/M adjustment of +/-150, PavoTube II 30C is both highly accurate and adaptable
- EXTENSIVE CONTROL - Features on-board controls and an OLED screen, you can control with your phone through Bluetooth with the free NANLINK app for iOS & Android, has a locking metal DMX/RDM port, and 2.4G
- BATTERY ADVANCEMENTS - Recharges 43 mins faster than previous generation, can charge with the AC adapter at the endcap or the USB-C port on the back, gets over 2.5 hours of life at 100% brightness and 29 hours at 1%
- NEXT-GEN PERFORMANCE - Output is up to 42% brighter, internal diffusion obscures the LEDs creating a seamless tube of light, it has 15 built-in effects that you can customize and save as presets in the NANLINK app
- IMPROVEMENTS EVERYWHERE - Endcaps are more compact, illumination surface is larger, features can be added in the future with firmware updates, can stand vertically with the LSFLT12MII Foldable Floor Stand (sold separately)
Overview

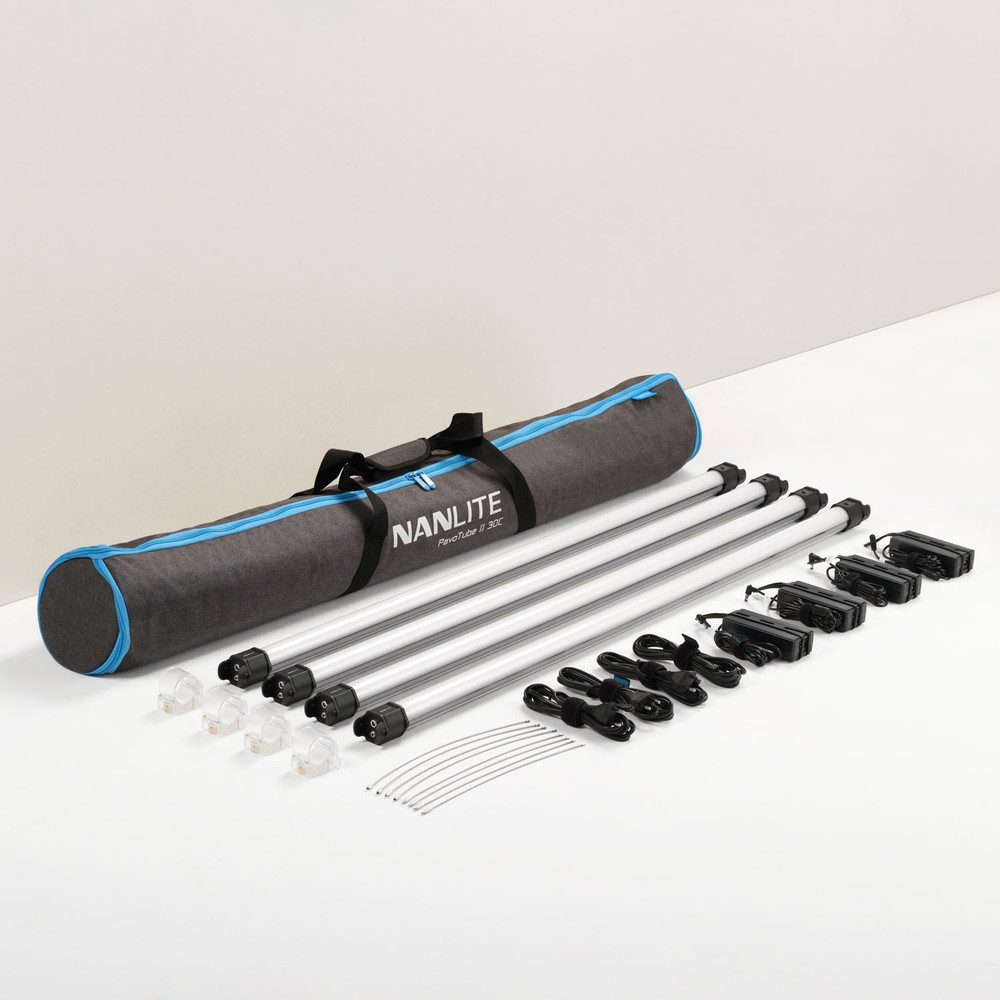

The Nanlite PavoTube II 30C 4-Foot RGBWW LED Tube 4-Light Kit combines beginner friendly ease-of-use with the versatility of powerful, pro-level features, in lightweight, thoughtfully designed, and well-balanced lighting fixtures with class-leading color accuracy that are as equally useful out-of-frame as they are in your shot—and for endless other creative pursuits. This is the second-generation of these popular lights and they feature end-to-end improvements. They provide up to 42% brighter output, and the diffusion obscures the LEDs, creating seamless tubes of light. They also recharge significantly faster, have smaller endcaps, larger illumination surfaces, G/M adjustment, an expanded CCT range of 2700K-7500K, Bluetooth for wireless control with the free NANLINK app, charging via AC adapter on the end or USB-C on the back, locking DMX/RDM ports, and more.
With an output of 647 Lux (60 fc) @ 1m at 5600K, 0-100 dimming, CCT and HSI modes, and 15 effects, these lights remain highly accurate no matter the intensity or color you have dialed-in. Delivering an SSI of 82 (3200K) and 72 (5600K), CRI of 97 and TLCI of 98, you can always have total confidence in their performance. On-board controls like the two easy-to-access knobs at the end and a new Lock button let you make adjustments quickly and prevent accidental changes. They can run for over 2.5 hours at 100% brightness on the internal battery, and up to 29 hours at 1%. They can also run on external batteries that have a D-Tap port with the CB-DT/DC adapter cable (sold separately) or run continuously on AC with the included chargers (you get an AC adapter for each light). A padded carrying case, steel safety wires for hanging, and transparent mounting clips with 1/4""-20 receivers are also included, and an entire ecosystem of compatible Nanlite mounts and modifiers are available separately in the standard T12 size.
Always Accurate
The name Nanlite is synonymous with color-accurate light, and the stellar performance of PavoTube II 30C helps you avoid time-consuming corrective work both in post and on set.
Full Control
Extensive control options are provided: 2 built-in buttons and knobs, and an easy-to-read OLED screen, Bluetooth and the free NANLINK app for iOS & Android, a locking metal DMX/RDM port, and 2.4G for remotes or a transmitter box.
Seamless Light
Improved diffusion obscures the individual LED diodes creating a seamless, singular light source that looks more visually compelling in-frame and smoother out-of-frame on reflective surfaces.
Battery Advancements
Fully recharges 43 minutes faster than previous generation. Gets over 2.5 hours of life at 100% brightness, 5 hours at 50%, 14 hours at 10%, and 29 hours at 1%. Charge with the PD3.0 USB-C port on the back or the AC adapter/charger at the endcap.
Improvements Everywhere
The front-facing power switch is recessed to avoid unwanted activation. They have a wide G/M adjustment of +/-150. They can stand vertically with the LSFLT12MII Foldable Floor Stand (sold separately). Features can be added with firmware updates. They have class-leading accuracy: CRI of average 97, TLCI of average 98, TM-30 Rf of average 94, and TM-30 Rg of average 101.
With an output of 647 Lux (60 fc) @ 1m at 5600K, 0-100 dimming, CCT and HSI modes, and 15 effects, these lights remain highly accurate no matter the intensity or color you have dialed-in. Delivering an SSI of 82 (3200K) and 72 (5600K), CRI of 97 and TLCI of 98, you can always have total confidence in their performance. On-board controls like the two easy-to-access knobs at the end and a new Lock button let you make adjustments quickly and prevent accidental changes. They can run for over 2.5 hours at 100% brightness on the internal battery, and up to 29 hours at 1%. They can also run on external batteries that have a D-Tap port with the CB-DT/DC adapter cable (sold separately) or run continuously on AC with the included chargers (you get an AC adapter for each light). A padded carrying case, steel safety wires for hanging, and transparent mounting clips with 1/4""-20 receivers are also included, and an entire ecosystem of compatible Nanlite mounts and modifiers are available separately in the standard T12 size.
Always Accurate
The name Nanlite is synonymous with color-accurate light, and the stellar performance of PavoTube II 30C helps you avoid time-consuming corrective work both in post and on set.
Full Control
Extensive control options are provided: 2 built-in buttons and knobs, and an easy-to-read OLED screen, Bluetooth and the free NANLINK app for iOS & Android, a locking metal DMX/RDM port, and 2.4G for remotes or a transmitter box.
Seamless Light
Improved diffusion obscures the individual LED diodes creating a seamless, singular light source that looks more visually compelling in-frame and smoother out-of-frame on reflective surfaces.
Battery Advancements
Fully recharges 43 minutes faster than previous generation. Gets over 2.5 hours of life at 100% brightness, 5 hours at 50%, 14 hours at 10%, and 29 hours at 1%. Charge with the PD3.0 USB-C port on the back or the AC adapter/charger at the endcap.
Improvements Everywhere
The front-facing power switch is recessed to avoid unwanted activation. They have a wide G/M adjustment of +/-150. They can stand vertically with the LSFLT12MII Foldable Floor Stand (sold separately). Features can be added with firmware updates. They have class-leading accuracy: CRI of average 97, TLCI of average 98, TM-30 Rf of average 94, and TM-30 Rg of average 101.
Technical Data
- Accessory Port(s):
- Type-C
- Amp-Hours:
- 4400mAh
- Battery Capacity (Wh):
- 65.1
- Battery Included:
- Yes
- Battery Maximum Output Voltage:
- 14.8
- Battery Required:
- NO
- Charger:
- DC/AC adapter
- Color Temperature (Kelvin):
- 2700K-7500K(GM±150)
- Compatible Remote:
- NANLINK APP, WS-TB-1 box, WS-RC-C2 remote controler
- Compatible Wifi Adapter:
- Nanlink WS-TB-1 Transmitter Box
- Cooling System:
- No
- CRI:
- Average 97
- Dimming:
- 0-100%
- DMX Control:
- Yes
- Electrical Load Capacity:
- 24.0
- Frequency:
- 2.4Ghz
- Includes Rechargeable Battery:
- Yes
- Lumen Output 3200K:
- 2400.0
- Lumen Output 5600K:
- 2622.0
- Lux @ 0.5m 5600K:
- 1910.0
- Lux @ 1m 2700K:
- 581.0
- Lux @ 1m 3200K:
- 599.0
- Lux @ 1m 5600K:
- 647.0
- Max Power Consumption:
- 55W
- Physical:
- Operating Temperature:
- ta40℃
- Power Source:
- DC15V/4A Max AC100-240V 50/60Hz PD3.0 （12-20V）30W Min
- 'Product Diameter (cm):
- 4.8
- 'Product Diameter (in):
- 1.9
- Product Length (cm):
- 117.0cm
- Product Length (in):
- 46.0in
- Product Weight (kg):
- 1.4kg
- Product Weight (lb):
- 3.1lb
- Runtime @ 100% Brightness (Hours):
- 2h 36min
- Runtime @ 50% Brightness (Hours):
- 5h
- Runtime @ 10% Brightness (Hours):
- 10%: 14 hours
- TLCI:
- Average 98
- Warranty:
- Limited 2-Year Warranty (Extend to 3 Years Total With Online Registration)
- Wireless Control Type:
- 2.4GHz, Bluetooth, DMX/RDM
- Battery Compatibility:
- N/A
