NOVOFLEX Auto Bellows Hasselblad X includes reverse adapter

SKU: BAL-HAX | FREE U.S. shipping on all orders over $100!

$1,189.00
Students and Educators: Enroll or Log in for exclusive EDU savings!
Find a dealer

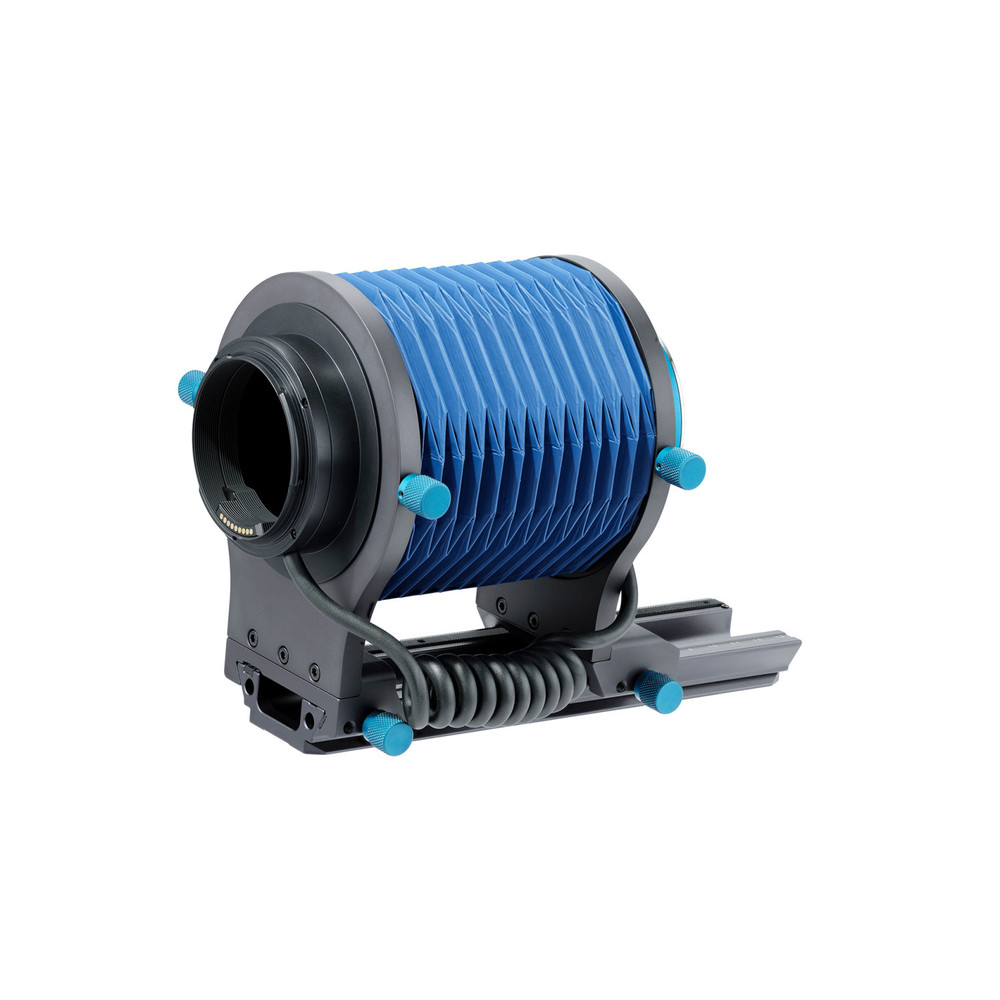

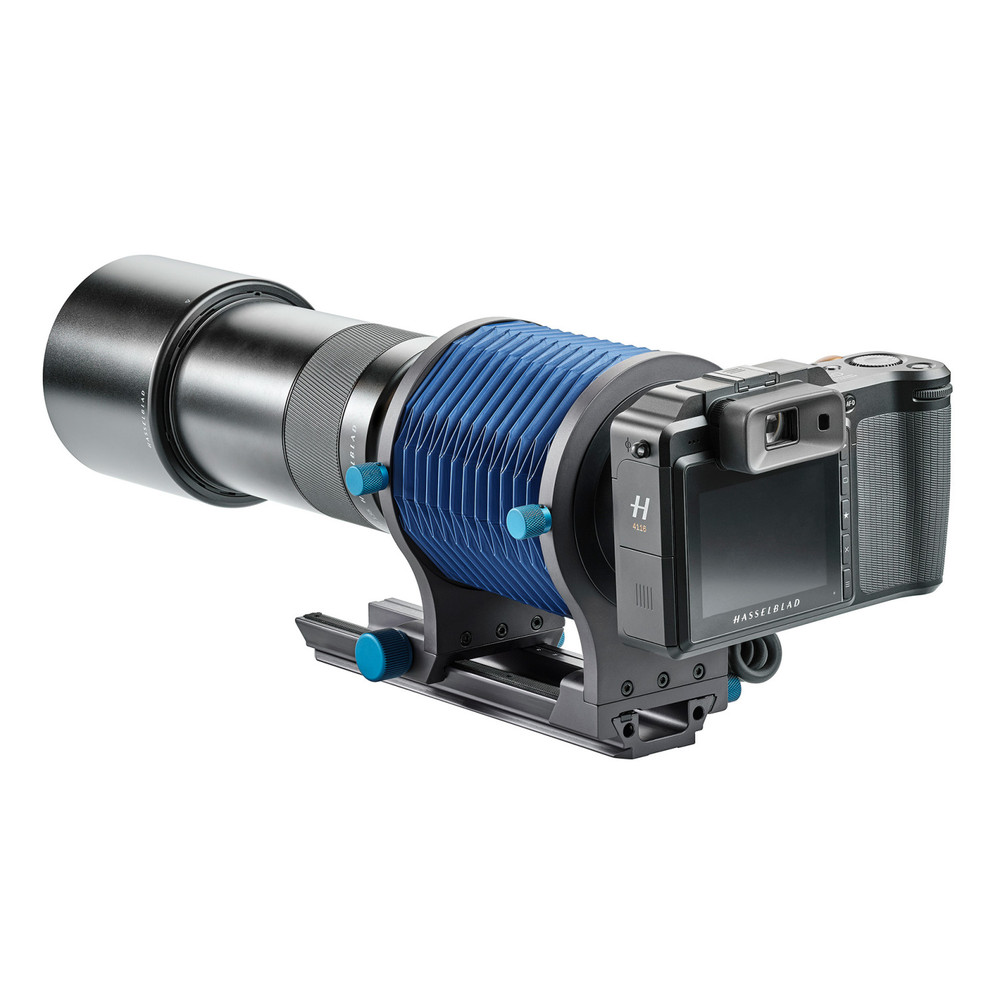

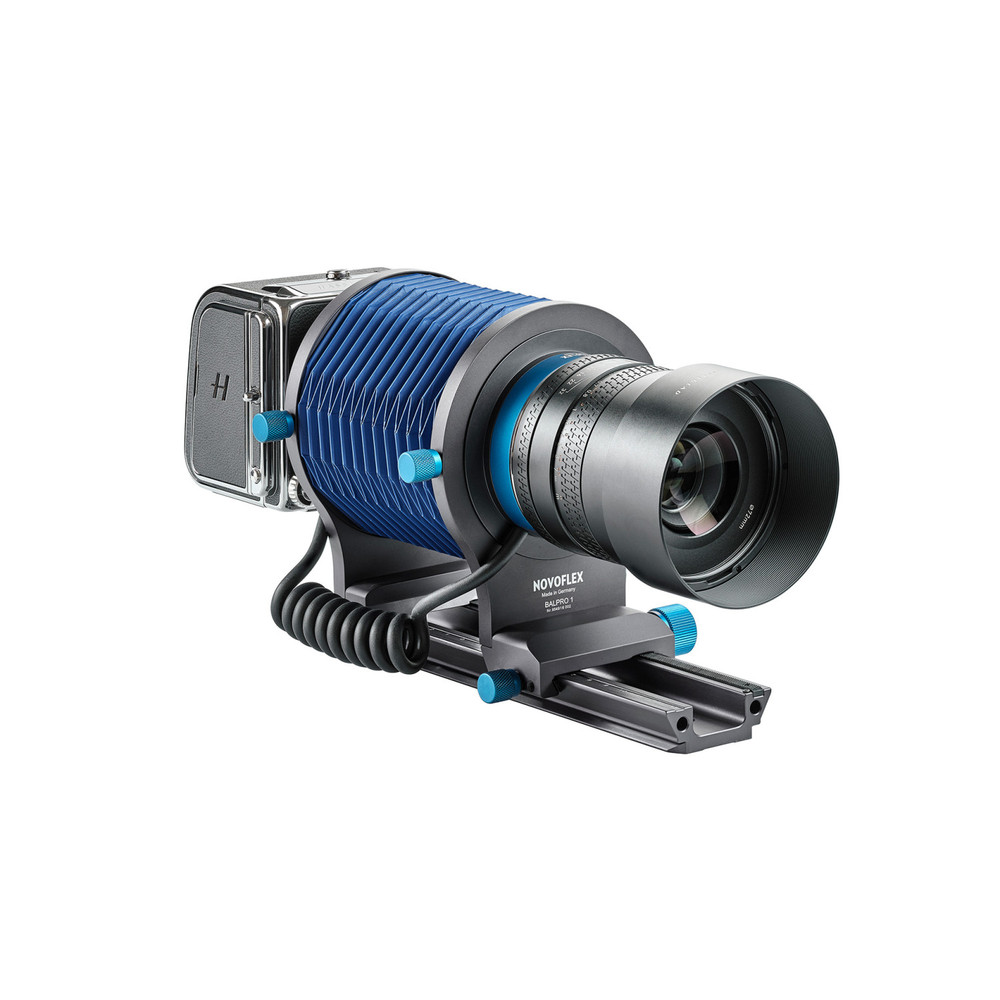

  • A macro bellows for Hasselblad X mirrorless cameras (X1D, X2D, 907X, ...) which retains full electronic coupling of the camera and lens, providing open-aperture metering and auto diaphragm operation. Lenses can be used in normal or reversed position. For high macro magnifications beyond lifesize (1:1) reproduction, a bellows is the most flexible option, and the beauty of the NOVOFLEX BAL-HAX is that it doesn't need specialist lenses; a prime or a zoom will still produce excellent results, but reversed or the Hasselblad macro lens will enable even greater magnifications to be achieved.
  • Hasselblad XCD 2.5/55V achievable magnifcation factors: 1.2 - 4.4:1
  • Hasselblad XCD 2.5/90 achievable magnifcation factors: 1:1.3 - 2.9:1
  • Hasselblad XCD 3.5/120 Macro achievable magnifcation factors: 0.5 - 2.9:1
  • Hasselblad XCD 2.8/135 achievable magnifcation factors: 1:1.7 - 1.8:1

Overview

The function of a bellows device in general: 1. Stepless extension = distance between sensor/film plane and lens (= image distance); thus format-filling photographing of smaller objects possible. 2. With the Schneider Kreuznach lens Apo Digitar 4.5/90 step-less adjustment from infinity to 1:1 with 35mm camera. 3. Telephoto lenses focus much closer than their near focusing range (without bellows); therefore tele-perspective in the close-up range and above all long working distance (no disturbance of the object, space for additional lighting). 4. With standard- and especially wide-angle lenses (from the camera range) enlarged images = macro shooting; over 1:1 5. On the tripod: a separate focusing rack (CASTEL series) is used to focus without changing the bellows extension (= frame size) or the tripod; i.e. the zone of[nbsp]sharpness can be adjusted, while the magnification remains constant.

Specifications

Battery Included:
No
Battery Required:
No
Includes Rechargeable Battery:
No
Physical:

Product Depth (cm):
0.0cm
Product Depth (in):
0.0in
Product Weight (lb):
2.2lb
Warranty:
1-Year Warranty
