Saramonic | SKU: BLINK500PROXHM
- This product is in like-new condition and is offered for sale here because it was returned immediately after purchase or is was displayed at a trade show. OPEN BOX products are subject to the same warranty as NEW products. OPEN BOX Specials are also subject to the same 30-day return policy as NEW PRODUCTS.
- Incredibly easy-to-use clip-on wireless mic system with on-board recording and lavaliers that delivers high-quality sound of 2-people to cameras, recorders, mixers, mobile devices, computers, and other 3.5mm devices
- Transmitters feature 8GB of 24-bit / 48kHz on-board recording for up to 14.8-hours of lossless .wav back-up audio recording and controlled by an inset tactile switch, so it cannot be turned off accidently when recording
- Transmitters have a built-in omnidirectional mic and can be clipped to clothing or used as a belt pack with included lavaliers. They feature input level control, mute, and selectable line-level input
- Camera Mountable Dual receiver features a Mono/Stereo output setting, headphone output for real-time monitoring, a vivid OLED display with metering, and include both 3.5mm TRS and 3.5mm TRRS output cables
- The system features 328-feet (100m) line-of-sight range, up to 10-hour run time, powers on/off automatically, and 3000mAh charging case charges system 2.5 additional times, for up to 35-hrs of power
Overview

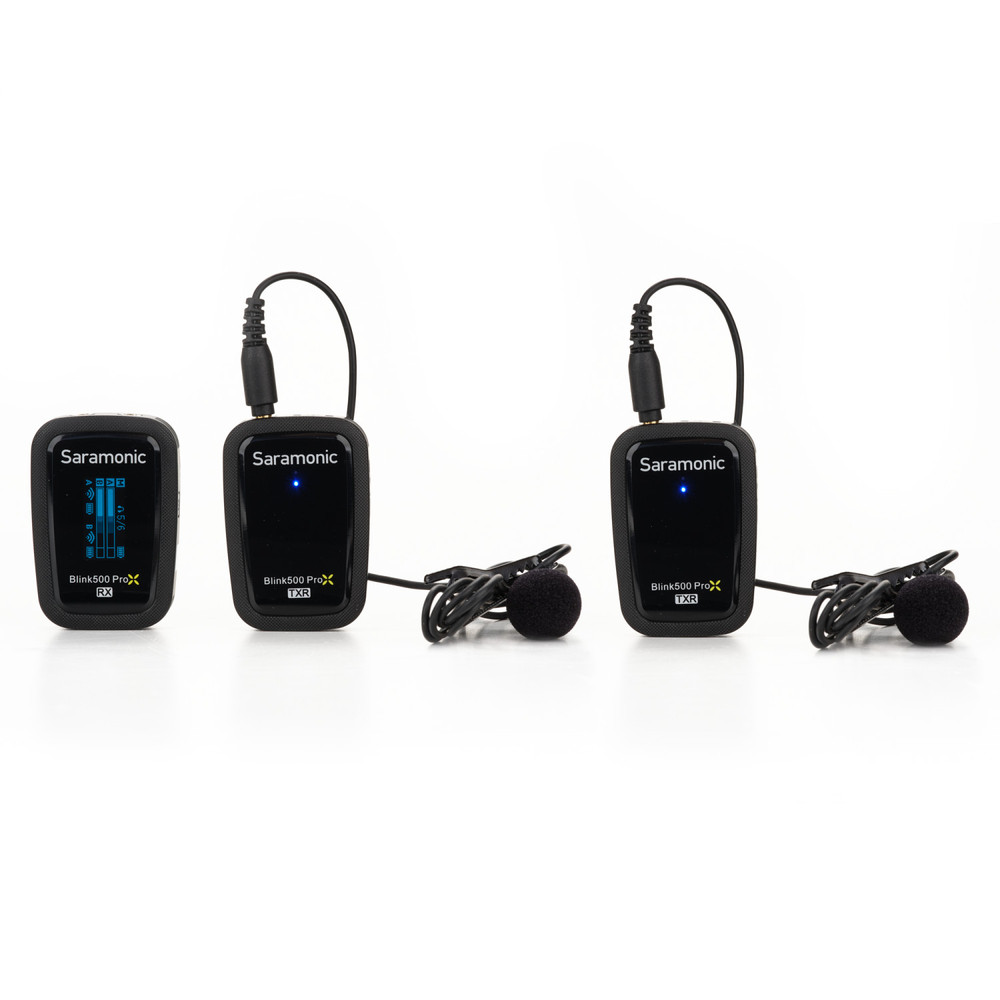

The Saramonic Blink 500 ProX B2R is a dual 2.4GHz clip-on wireless system with recording transmitters and lavaliers that delivers exceptional, broadcast-quality sound for 2-people to cameras, recorders, mixers, mobile devices, computers, and other 3.5mm input devices. Ideal for content creators, filmmakers, journalists, vloggers, live streaming, and so much more. This ultra-portable and incredibly lightweight dual mic system comes with two clip-on wireless transmitters with 24bit/48kHz built-in recorders, integrated omnidirectional mics, two professional lavalier microphones, a dual-channel camera-mountable receiver, and an advanced portable charging carry case.
24-bit / 48kHz Recording Transmitters that are Incredibly Easy-to-Use

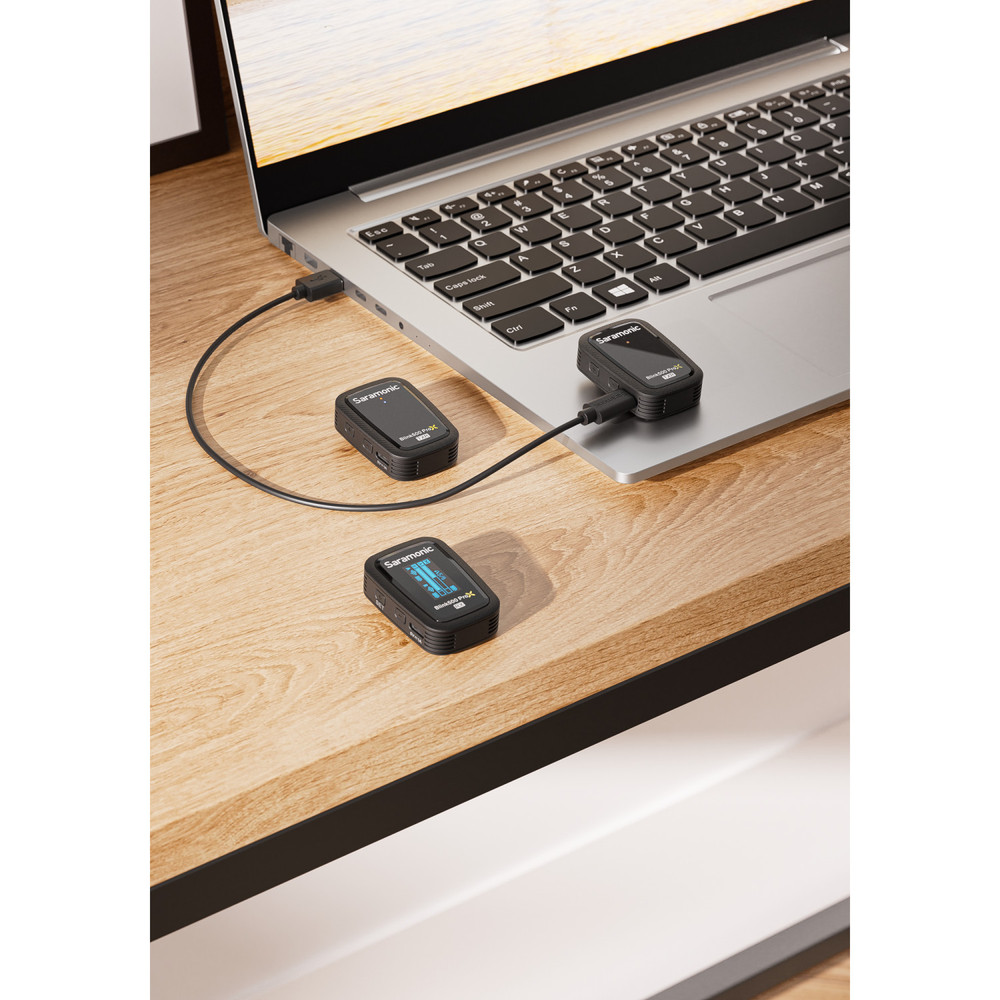

Both transmitters have 8GB of onboard recording for up to 14 hours and 50 minutes of 24-bit/48kHz lossless .wav backup recording. Allowing you to record back-up audio directly to each transmitter in case of interference or dropouts. The built-in recorders are controlled by a tactile switch, making it easy to turn on and off with no menus fiddle with. Because the switches are inset, you can be sure they won’t get turned off accidently when recording. You can also use the transmitters as standalone recorders. Extracting the audio files is just as easy, simply connect the transmitters to your computer and drag the audio files to your desktop. There is no specialized app or additional processing needed to extract the audio file. So, when you need the audio, you can access it fast with no fuss.
Tiny and Light TX Transmitters and Included Lavaliers, with Big and Heavy Features

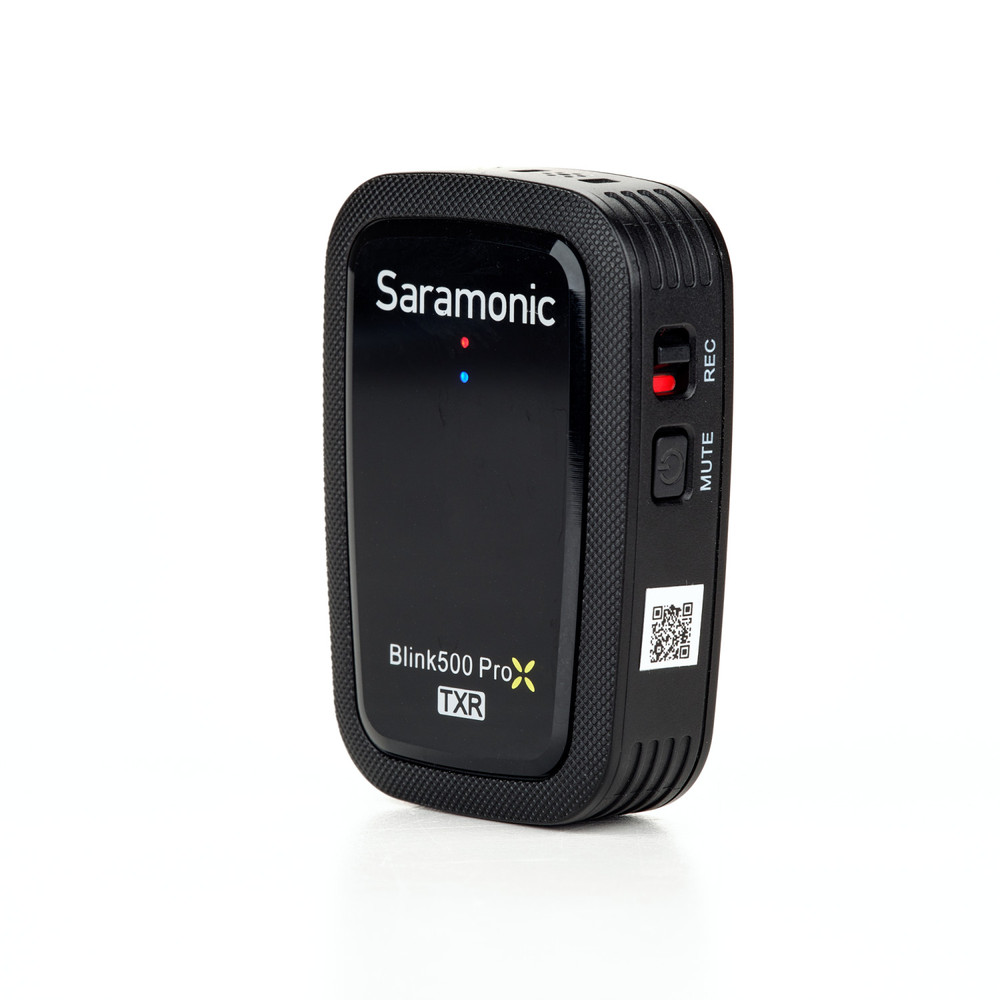

The Blink 500 ProX TXR transmitters feature a built-in omnidirectional microphone with an impressive sensitivity of -39dB. Giving you professional dynamic sound quality on a transmitter small and light enough that you can easily clip it to a shirt or collar. The transmitters include lavalier microphones, allowing you to use them as traditional belt pack transmitters for an even more discreet and professional miking solution. Tactile input gain controls allow you to adjust the audio gain with ease and a soft-touch mute button lets you quickly mute the transmitters for privacy.
Wireless Transmit and Record Line-Level Audio and Other 3.5mm Microphones
The Blink 500 ProX TXR transmitters also allow you to transmit wirelessly and record line-level signal or microphone-level and provide plug-in power to microphones. This stand-out feature makes the system tremendously versatile, allowing you to connect it to virtually any audio source. Switch the TXR transmitters to line-level and connect them to mixers, music players, or any line-level device output you want to transmit wirelessly to the receiver or record. You can use the included SR-M1 lavalier, or you can add a headset microphone, a higher-end lavalier like the Saramonic DK3G, or even plug in a mini-shotgun microphone. Just about any 3.5mm microphone wired for standard TRS pin-out will work, and the adjustable mic gain, and receiver’s input gain meter lets you get perfect levels every time.
Compact Receiver with Headphone Out, OLED Display, Mono/Stereo Out and More
The Blink 500 ProX B2R system’s RX dual-channel receiver features vivid OLED display that shows you the RX’s battery life and headphone level, and each transmitters’ level meter, battery life, and wireless connection strength with just a glance. Allowing you to confidently set levels and know what your system is doing at any time. Both a 3.5mm TRS output cable and TRRS output cable are included. Allowing the system to work perfectly with cameras, mobile devices, recorders, mixers, computers, and more. A selectable Mono / Stereo output setting gives you the ability to record each mic to separate channels or mix them. A 3.5mm headphone output with level control lets you monitor the sound in real-time. You can also easily adapt the receiver’s 3.5mm TRS output to Lightning, USB-C, USB, or XLR devices with an inexpensive Saramonic audio adapter or interface (sold separately).
Remarkable Power, Simplicity, and Convenience for Creators on the Move
The Blink 500 ProX B2R features a system battery life of up to 10-hours (8.5-hours when recording), nearly double the power of other 2.4GHz micro wireless systems. Giving users the ability to shoot for an entire day on one charge. It also includes a 3000mAh charging carry case that provides an additional 2.5x full system charges anywhere. That gives you up to an incredible 35-hours of filming on a full system and case charge! Opening the charging case turns the system on and closing the case turns the system off, automatically. Because the transmitters and receiver also feature USB-C charging ports, they can be powered while in use or charged outside of the case using USB battery packs or a power supply for even more powering versatility.
Specifications
RX Receiver Specifications:
Reception Type: 2.4GHz Digital Frequency
Modulation: Digital Modulation
Antenna: Built-In FPC Antenna
Operating Range (Without Obstacles): Up to 328' (100m)
Line Output Connector: 3.5mm TRS
Output Level: -16.5dBu
Output Mode Types: Mono / Stereo
Headphone Output Connector: 3.5mm TRS
Headphone Output Level: -6dBu
Frequency Response 20Hz to 20KHz
Digital Signal Resolution: 16bit / 48kHz
Signal-to-Noise Ratio: ≥84dB
Distortion: ≤0.1%
System’s Voice Delay: ≤8ms
High-contrast OLED Screen Resolution: 128 x 64 pixels
Other Functions: Tactile Output Mute Function
Power Requirements: Built-in Li-ion Battery, USB-C DC 5V or Charging Contact
Battery Life: Approximately 10-hours
Battery Specifications: 3.7V / 400mAh
Weight: 1.08oz (30.5g)
Dimensions: 2.2 x 1.49 x 0.61” (56 × 38 × 15.5mm)
Operating Temperatures: 0° to 122°F (0°C to 50°C)
Storage Temperatures: -50° to 122°F (–10°C to +50°C)
TXR Transmitter Specifications:
Transmission Type: 2.4GHz Digital Frequency
Modulation: Digital Modulation
Antenna: Built-In FPC Antenna
Operating Range (Without Obstacles): Up to 328' (100m)
RF Output Power: <10mW
Frequency Response 20Hz to 20KHz
Recording Resolution: 24-bit / 48kHz
Recording Memory Capacity: 8GB (Approximately 14 Hours & 50 Minutes)
Reference Audio Input Level: -20~-42dBv (Mic input, 0dB Attenuation)
Input Connector: 3.5mm Mic In / Line In (Mic with Plug-in-Power)
Built-in Microphone Polar Pattern: Omnidirectional
Built-in Microphone Maximum SPL: 106dB
Built-in Microphone Sensitivity: 39±2dB (Tested at 2V 2.2KΩ)
Lavalier Microphone Maximum SPL: 120dB
Lavalier Microphone Sensitivity: 39+/-2dB (0dB=1V/Pa,1kHz)
Digital Signal Resolution: 16bit / 48kHz
Signal-to-Noise Ratio: ≥84dB
Distortion: ≤0.1%
Other Functions: Tactile Microphone Mute Function
Power Requirements: Built-in Li-ion Battery, USB-C DC 5V or Charging Contact
Battery Life Recording On: Approximately 8.5-hours
Battery Life Recording Off: Approximately 11-hours
Battery Specifications: 3.7V / 400mAh
Weight: 1.04oz (29.5g)
Dimensions: 2.2 x 1.49 x 0.61” (56 × 38 × 15.5mm)
Operating Temperatures: 0° to 122°F (0°C to 50°C)
Storage Temperatures: -50° to 122°F (–10°C to +50°C)
SR-M1 Lavalier Specifications:
Acoustic Principle: Electret Condenser
Polar Pattern: Omnidirectional
Connector: 3.5mm
Cable Length: 4.1’ (1.25m)
Maximum SPL: 110dB
Sensitivity: -39dB+/-2dB(0dB=1V/Pa,1kHz)
Signal-to-Noise Ratio: ≥60dB
THD: <1% (94dB SPL at 1kHz)
Power Requirements: Plug-in-Power (1V?10V)
Standard Operating Voltage: 3V
Current Consumption: <500μA
Output Impedance: <2.2KΩ
Blink 500 ProX B2R Charging Case Specifications:
Power Requirements: Powered by USB-C port
Power Capacity: 3000mAh
System Charging Time: Approximately 2-hours
Case Charging Time: Approximately 2.5-hours
Charge Cycles for Transmitters and Receiver: Approximately 2.5 Times
Weight: 9.31oz (264g)
Dimensions: 6.49 x 3.91 x 1.51” (165 x 899.5 x 38.5mm)
Operating Temperatures: 0° to 122°F (0°C to 50°C)
Storage Temperatures: -50° to 122°F (–10°C to +50°C)
