Saramonic | SKU: SR-WS2
- Broadcast-quality UHF wireless beltpack transmitter and lavalier microphone for the RX9 dual receiver (sold separately)
- Works right out of the box with easy plug-and-play operation, lavalier mic, mic clip, foam windscreen, and belt clip are all included

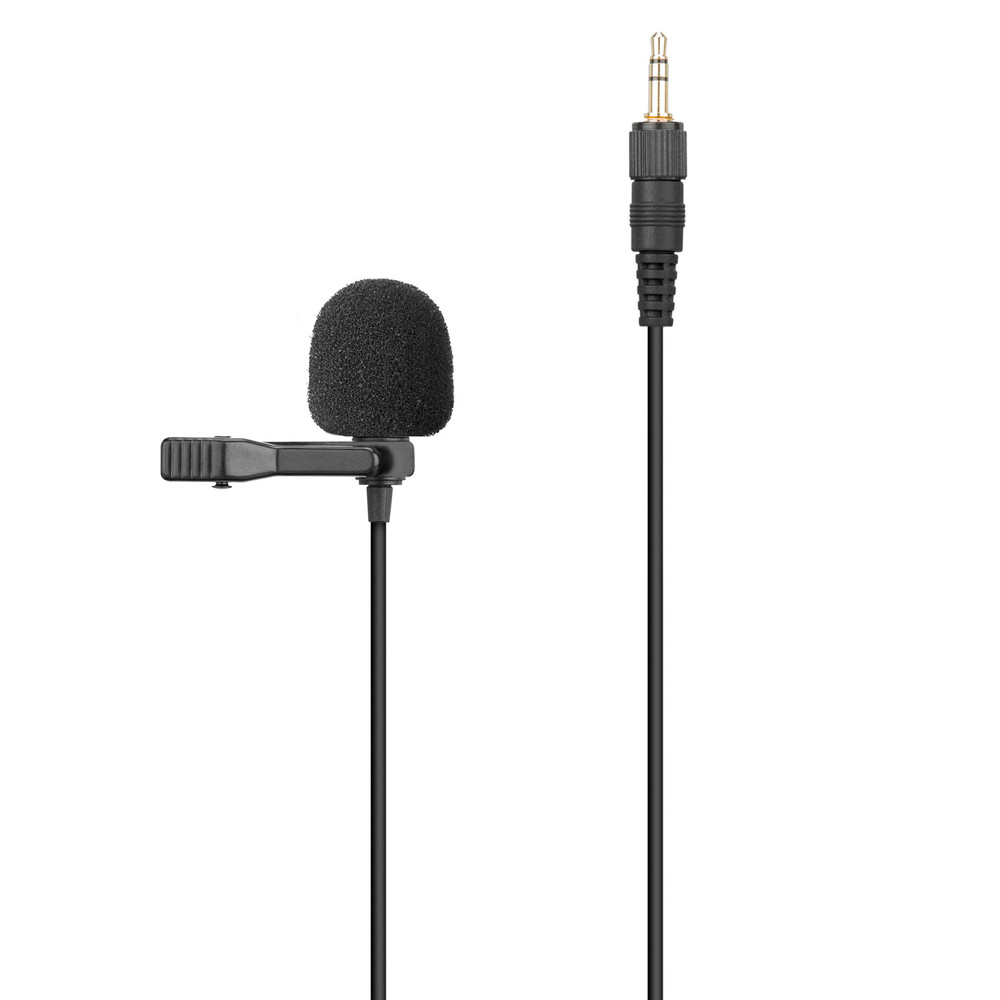

- Professional SR-M1 omnidirectional lavalier microphone provides natural sound that’s ideal for video production
- Durable all-metal construction with easy-to-read backlit LCD display and easy-to-use menus and controls
- Offers up to 330-foot (100m) operating distance with infrared that makes it easy to sync channels with receiver
Overview
The Saramonic TX9 is a wireless UHF bodypack transmitter with clip-on omnidirectional lavalier microphone for the dual-channel UwMic9 RX9 and RX-XLR9 receivers (sold separately). The TX9 is extremely easy to use and is ideal for capturing interviews, film dialog, field recording, broadcast TV, news gathering, vlogging, YouTube videos and more. The TX9 features sturdy metal construction and delivers excellent sound quality in a low-cost package.
New features and functions, same remarkable price
The new generation of the UwMic9 features updated operating system, input level control, a sleek look and an unbeatable price.
Included omnidirectional lavalier with added expandability
The included SR-M1 omnidirectional lavalier microphone that’s ideal for use in video production because it captures sound equally no matter what direction it’s pointing when clipped to clothing. Designed to capture rich, crystal-clear sound it also features a locking 3.5mm connector to prevent the mic from accidentally being unplugged. Because the TX9 is wired with the standard 3.5mm TRS pin-out, allowing for use with hundreds of lavalier, headset, instrument and gooseneck microphones. Including the premium-quality Saramonic DK3 Lavalier, water-proof DK5 Lavalier, DK6 low-profile headset mic, or the UMIC-M2 mini-gooseneck mic. The TX9 also provides plug-in power, allowing the TX9 transmitter to accept other TRS mics, like mini-shotgun and on-camera microphones.
Power, Range, Flexibility and Function
With an impressive operating range of up to 330-feet (100m), the TX9 gives users the range, and power they need for professional applications. It features infrared syncing and features a 12-step input level control, allowing users to dial in the gain level for their needs and can also be used to transmit line-level audio, such as an output from a mixer. It also features a High/Medium/Low RX transmission power output setting, allowing users to conserve batteries in controlled recording environments. A handy muting feature if the person wearing the clip-on lavalier microphone needs privacy, and a flashing red LED reminds you to unmute it afterward.
Expandable and Backwards Compatible
Optional microphones and cables (sold separately) are available, giving you unrivaled flexibility. Older UwMic9 receivers with yellow trim, are completely compatible.
Read More
New features and functions, same remarkable price
The new generation of the UwMic9 features updated operating system, input level control, a sleek look and an unbeatable price.
Included omnidirectional lavalier with added expandability
The included SR-M1 omnidirectional lavalier microphone that’s ideal for use in video production because it captures sound equally no matter what direction it’s pointing when clipped to clothing. Designed to capture rich, crystal-clear sound it also features a locking 3.5mm connector to prevent the mic from accidentally being unplugged. Because the TX9 is wired with the standard 3.5mm TRS pin-out, allowing for use with hundreds of lavalier, headset, instrument and gooseneck microphones. Including the premium-quality Saramonic DK3 Lavalier, water-proof DK5 Lavalier, DK6 low-profile headset mic, or the UMIC-M2 mini-gooseneck mic. The TX9 also provides plug-in power, allowing the TX9 transmitter to accept other TRS mics, like mini-shotgun and on-camera microphones.
Power, Range, Flexibility and Function
With an impressive operating range of up to 330-feet (100m), the TX9 gives users the range, and power they need for professional applications. It features infrared syncing and features a 12-step input level control, allowing users to dial in the gain level for their needs and can also be used to transmit line-level audio, such as an output from a mixer. It also features a High/Medium/Low RX transmission power output setting, allowing users to conserve batteries in controlled recording environments. A handy muting feature if the person wearing the clip-on lavalier microphone needs privacy, and a flashing red LED reminds you to unmute it afterward.
Expandable and Backwards Compatible
Optional microphones and cables (sold separately) are available, giving you unrivaled flexibility. Older UwMic9 receivers with yellow trim, are completely compatible.
Specifications
- Channels: 96 selectable channels in 2 groups (A and B)
- Wireless Frequency Range: 514 MHz - 596 MHz
- Oscillator Type: PLL synthesizer
- Input: Locking 1/8” (3.5mm) TRS mini-jack
- Reference audio input level: –60 dBV (MIC input, 0 dB attenuation)
- Antenna: 1/4 λ wire antenna
- Signal to Noise Ratio: 70 dB or more
- Voice Delay: 12 ms
- Reference Deviation: +/- 5 kHz (-60 dBV, 1 kHz input)
- Frequency Response: 40 Hz to 18 kHz (+/- 3dB)
- Distortion: 0.5% or less
- Spur Suppression: -60 dB
- Batteries: 2 LR6/AA size batteries
- Dimensions: 6.73 x 2.5 x 1.18” (170.9 x 63.5 x 30.0mm)
- Weight: 7.46 oz (211.4g) (without batteries)
