Sekonic | SKU: 401-364
- This product is in like-new condition and is offered for sale here because it was returned immediately after purchase or is was displayed at a trade show. OPEN BOX products are subject to the same warranty as NEW products. OPEN BOX Specials are also subject to the same 30-day return policy as NEW PRODUCTS.
- Incident Metering for Ambient & Flash
- Reflected 5 degree spot metering with optional vewfinder attachedment
- Cine Setting: Frame Rate & Shutter Angle
- Flash Analyzing Function0
- Illuminance/Luminance Measurements0
Overview

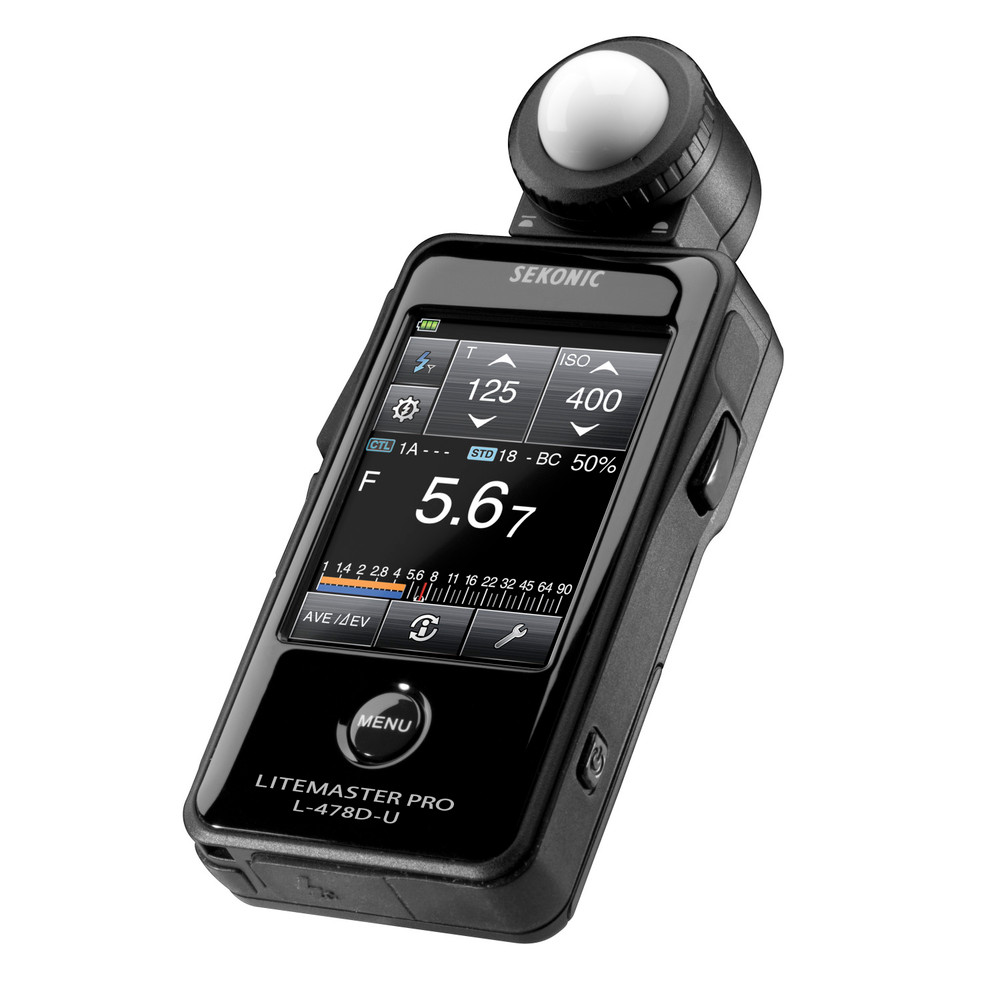

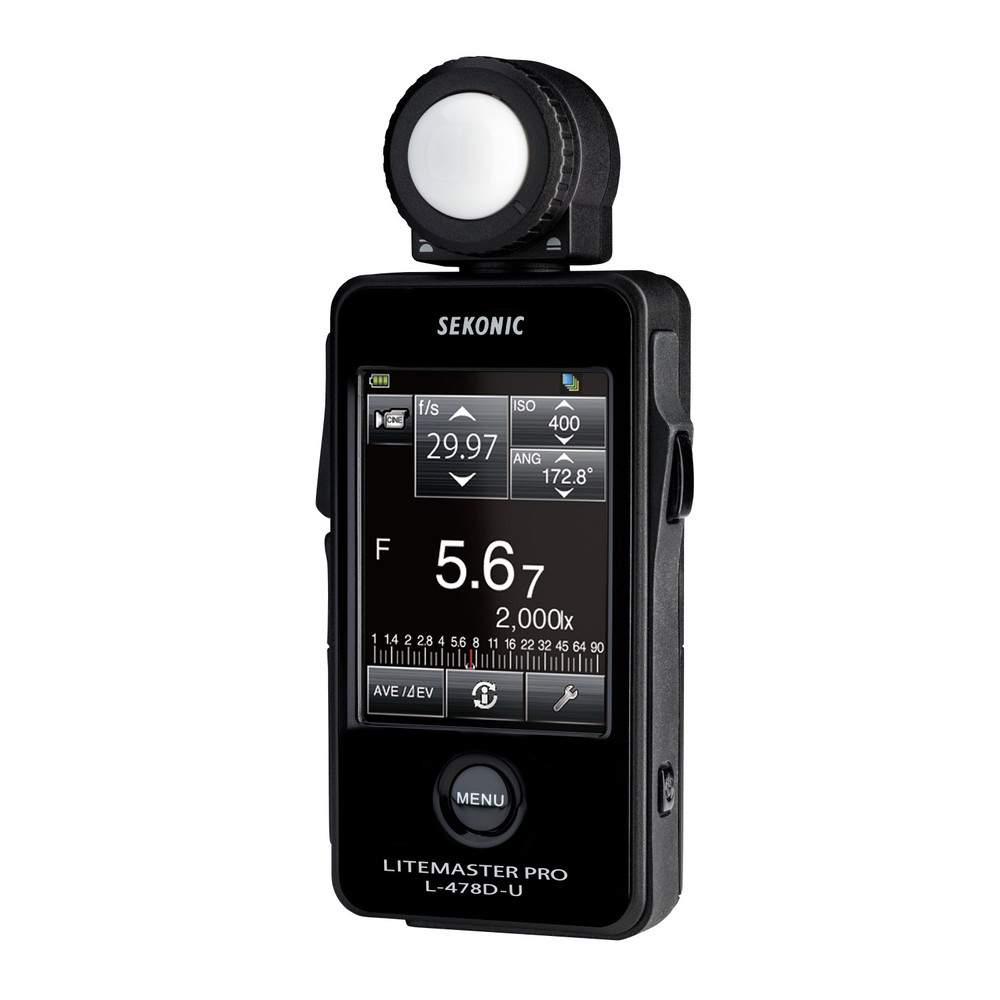

Equipped with a large and intuitive 2.7" color touchscreen LCD, the LiteMaster Pro L-478 Series Light Meter from Sekonic will make incident metering for ambient and flash light super simple. The major ability of this system enables complete control of the flash's power in 0.1-step increments.
Notable for the L-478 series light meter is the large color touchscreen, which allows for fast control over settings for both ambient and flash metering. The meter is quite capable as well, able to function within a range of -2 to 22.9 EV at ISO 100. Additionally, for the current crop of hybrid shooters this model expands on its standard stills functions with two distinct video modes: Cine and HD Cine. These settings give access to frame rate selection from 1-1,000 fps as well as shutter angle settings from 1-358° as well as ISO 850 for Canon cinema cameras.
Guaranteeing the best possible performance is a suite of functions and features that will ensure users have the best tools available to them. Among these is a flash analyzing function that uses ambient and flash simultaneously to allow for shooters to dial in their preferred mix. Also, using the included Data Transfer Software users will be able to do Exposure Profiling for their camera by using the optional 5° viewfinder, showing dynamic range limits and knowing that you will have an accurate exposure. Alongside this is a Filtration Compensation Mode that allows for the meter to account for filter factor, which can now be done at up to 12 EV for landscape shooters using high-density ND filters. Other features include a contrast function for comparing brightness, a memory mode for 8 readings, and illuminance or luminance measurement.
Notable for the L-478 series light meter is the large color touchscreen, which allows for fast control over settings for both ambient and flash metering. The meter is quite capable as well, able to function within a range of -2 to 22.9 EV at ISO 100. Additionally, for the current crop of hybrid shooters this model expands on its standard stills functions with two distinct video modes: Cine and HD Cine. These settings give access to frame rate selection from 1-1,000 fps as well as shutter angle settings from 1-358° as well as ISO 850 for Canon cinema cameras.
Guaranteeing the best possible performance is a suite of functions and features that will ensure users have the best tools available to them. Among these is a flash analyzing function that uses ambient and flash simultaneously to allow for shooters to dial in their preferred mix. Also, using the included Data Transfer Software users will be able to do Exposure Profiling for their camera by using the optional 5° viewfinder, showing dynamic range limits and knowing that you will have an accurate exposure. Alongside this is a Filtration Compensation Mode that allows for the meter to account for filter factor, which can now be done at up to 12 EV for landscape shooters using high-density ND filters. Other features include a contrast function for comparing brightness, a memory mode for 8 readings, and illuminance or luminance measurement.
Specifications
- Aperture Range (Ambient Light):
- F0.5 to F161.2(=128.9) in 1, 1/2, 1/3 step
(Analog Scale: F1.0 to F90 in 1/3 step) - Aperture Range (Flash Light):
- F0.5 to F161.2(=128.9) in 1, 1/2, 1/3 step
(Analog Scale: F1.0 to F90 in 1/3 step) - Average:
- Yes
- Calibration Compensation:
- Yes (-1.0EV to +1.0EV)
- Contrast/Comparison Function:
- Yes (+/-9.9EV in 1/10 step)
- Custom Settings:
- Yes (13 custom settings)
- EV Range (Ambient Light):
- EV-27.9 to EV55.8
- Exposure Compensation:
- Yes (-9.9EV to +9.9EV)
- Family:
- L-478
- Filter Compensation:
- Yes (-12EV to 12EV, preset 30 type)
- Flash vs Ambient Analyzing:
- Yes (in 10% step)
- Frame Rate Range (Ambient Light):
- 1 f/s to 1,000 f/s plus other 20 settings (customized from 0.001 f/s to 9,999.999 f/s)
- Image Zoom:
- T4_L478_401-474_1280x800_main.jpg;T4_L478_401-474_1280x800_01.jpg;T4_L478_401-474_1280x800_02.jpg
- ISO Range:
- ISO 3 to ISO 409,600 + ISO 850
- LCD:
- 2.7" color dot matrix touch panel LCD
- LCD Backlight:
- Yes
- Physical:
- Measuring System:
- Exposure Meter

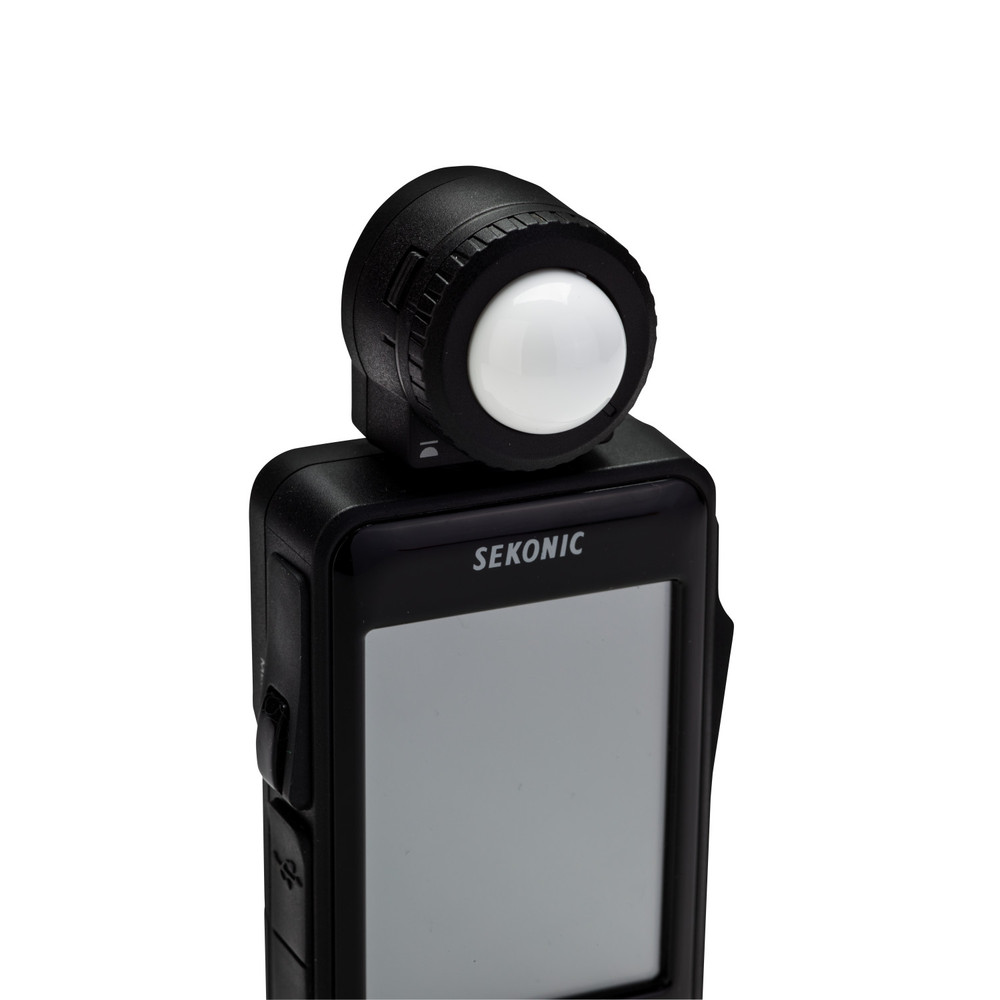

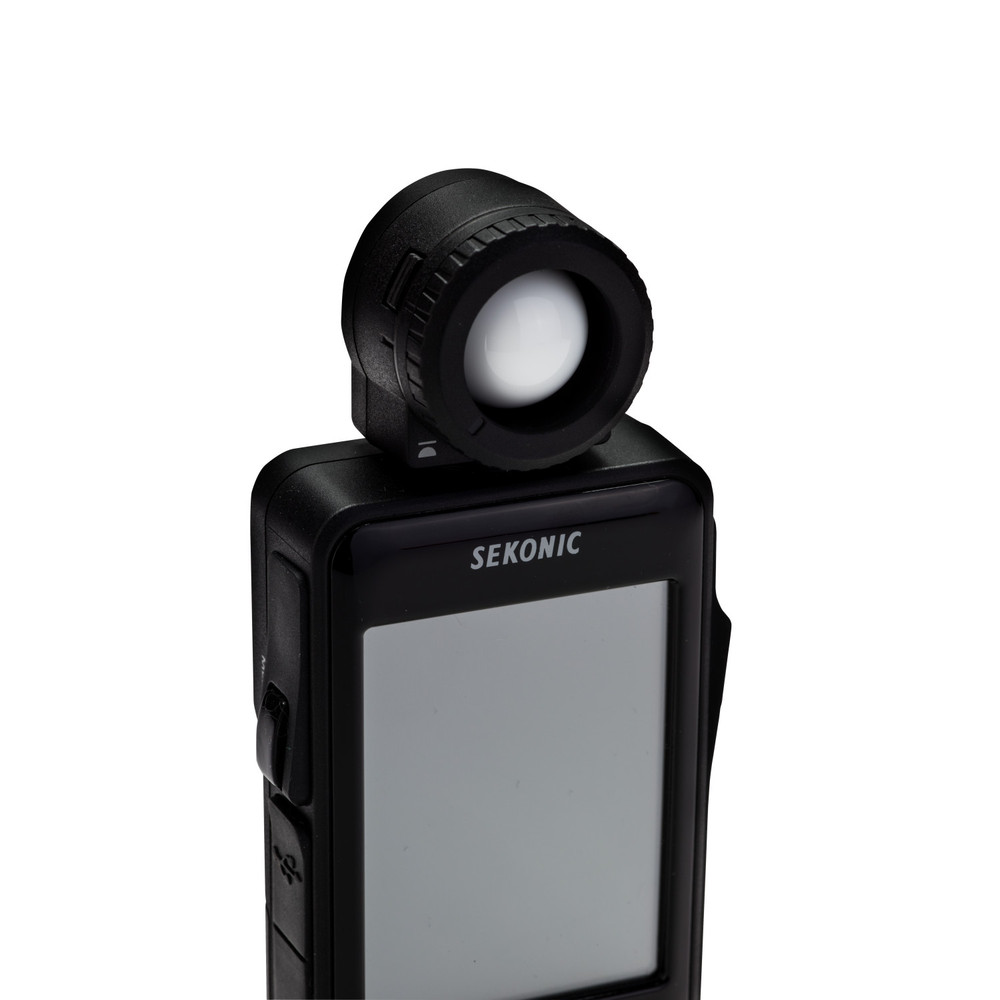

Incident light: Swivel head, retractable lumisphere
Reflected light: Removable, with Optional 5 deg. VF - Measuring Modes (Ambient Light):
- T priority, F priority, TF priority, HD_CINE (T priority), CINE (f/s priority), Lux/FC, Cd/m2/FL
- Measuring Modes (Flash light):
- Cordless, Cord-in (PC), Multiple cumulative flash
- Measuring Range at ISO100 (Ambient Incident Light):
- EV-2 to EV22.9
0.63 lx to 2,000,000 lx
0.1 fc to 180,000 fc - Measuring Range ISO100 (Ambient Reflected Light):
- EV3 to EV22.9
1.0 cd/m2 to 980,000 cd/m2
0.29 fl to 290,000 fl - Measuring Range (Flash Incident Light):
- F1.0 to F161.2(=128.9)
- Measuring Range (Flash Reflected Light):
- F2.8 to F161.2(=128.9)
- Memory:
- Yes (9 times)
- Operating Temperature:
- -10 deg. C to 50 deg. C
- Power Source:

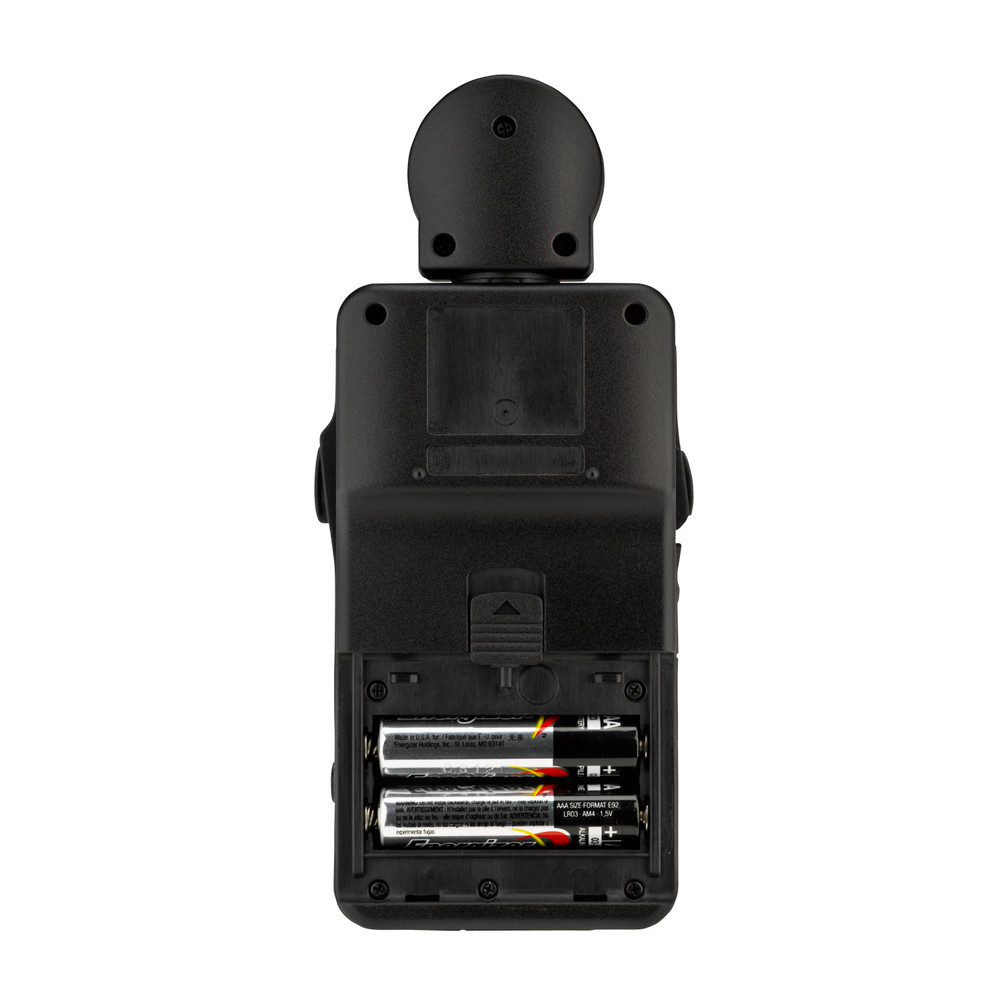

- 1.5V x 2 (AAA battery)
- Product Height (cm):
- 2.6cm
- Product Height (in):
- 1.02in
- Product Length (cm):
- 14.0cm
- Product Length (in):
- 5.51in
- Product Weight (kg):
- 0.13kg
- Product Weight (lb):
- 0.29lb
- Product Width (cm):
- 5.7cm
- Product Width (in):
- 2.24in
- Sensor:
- SPD
- Shutter Angles Range (Ambient Light):
- 1 deg. to 358 deg. plus other 20 settings (customized from 0.001 deg. to 360 deg.)
- Shutter Speeds Range (Ambient Light):
- 30m to 1/64,000s in 1, 1/2, 1/3 step
(Analog scale: 4s to 1/2,000s in 1/3 step) - Shutter Speeds Range (Flash Light):
- 30m to 1/1,000s in 1, 1/2, 1/3 step
- Storage Temperature:
- -20 deg. C to 60 deg. C
- Warranty:
- 1
What's in the box
Downloads & Documents
Find the latest firmware, software and documentation at https://sekonic.com/downloads/.
