Sekonic | SKU: 401-364
- Incident Metering for Ambient & Flash
- Reflected 5 degree spot metering with optional vewfinder attachedment
- Cine Setting: Frame Rate & Shutter Angle
- Flash Analyzing Function0
- Built In Phottix Transmitter
Overview

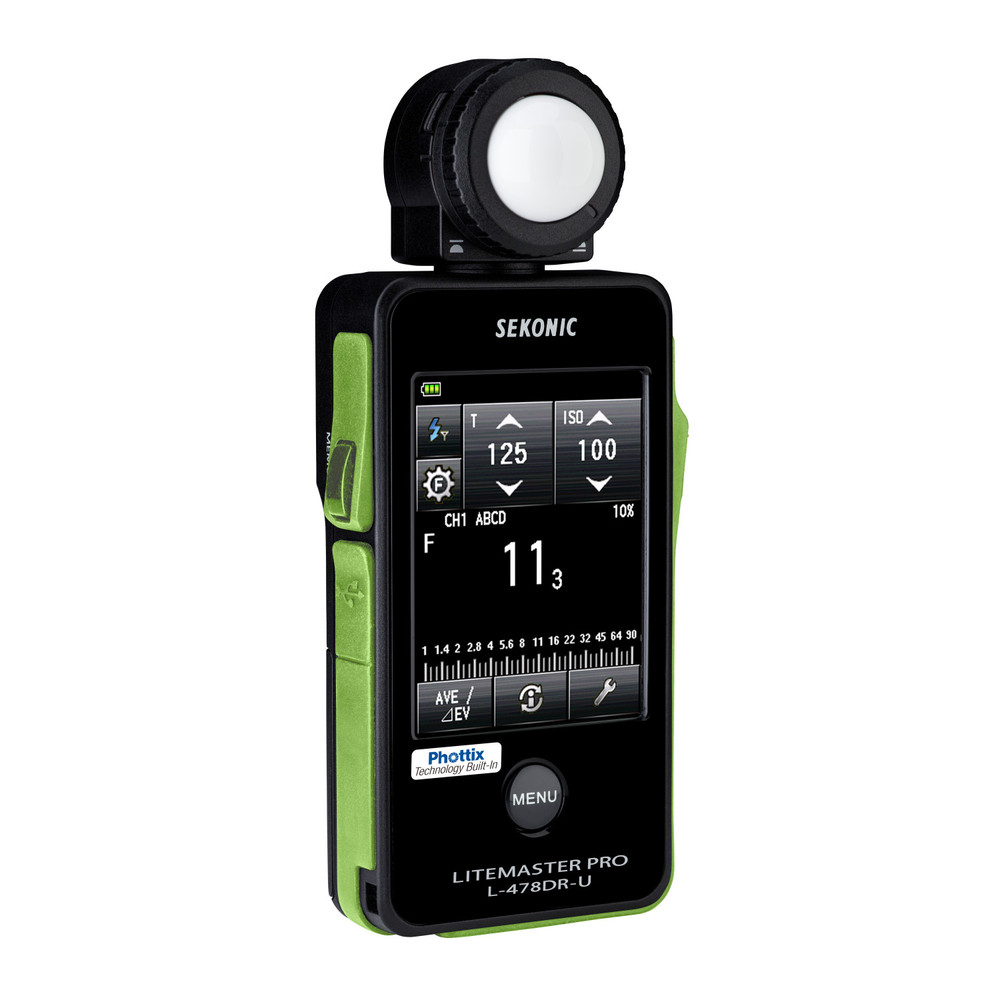

Sekonic's LiteMaster Pro L-478 Series meters are the world's first touch-screen-operated light meters. They have an array of unique, must-have features for both still and motion story tellers. Their compact size is both instantly familiar and comfortable to use. A large LCD (2.7") displays ambient, flash, cine and a host of other information in a clear and understandable way. Settings are made by simply touching or sliding a finger over the screen.
The L-478 meters can be quickly calibrated to your camera using Sekonic's Data Transfer software and either Sekonic or X-Rite Brand targets or by manually inputting data to the DTS program or on the meter itself.
Keeping pace with wireless advancements, the L-478DR-PX comes complete with exclusive Phottix wireless triggering technology which combines light measurement with triggering as selected Channels and Groups providing amazing control in your hand.
The L-478DR-PX has a radio module and antenna built into the meter. The system transmits at 2.4GHz and uses the Phottix Strato II signal protocol that can trigger channels (1-4) and groups (A,B,C,D) to fire any flash or Studio strobe connected to a Phottix Strato, Strato II, Ares II, or Atlas II receiver as well as a Phottix Mitros+ flash or an Indra 500/360TTL strobe set to Strato II receive function. When shooting, photographers can pick from various Phottix transmitters including the Strato II , Ares II , Odin or Odin II. The L-478 series meters offer the following languages in the interface: Japanese, English and Chinese. Depending on the country where the meter is purchased, the language is fixed and cannot be changed by the user.
NOTE: * This model may not be available due to the restriction of regulation in each country. * Please be sure to check the radio frequency and language before purchase.
The L-478 meters can be quickly calibrated to your camera using Sekonic's Data Transfer software and either Sekonic or X-Rite Brand targets or by manually inputting data to the DTS program or on the meter itself.
Keeping pace with wireless advancements, the L-478DR-PX comes complete with exclusive Phottix wireless triggering technology which combines light measurement with triggering as selected Channels and Groups providing amazing control in your hand.
The L-478DR-PX has a radio module and antenna built into the meter. The system transmits at 2.4GHz and uses the Phottix Strato II signal protocol that can trigger channels (1-4) and groups (A,B,C,D) to fire any flash or Studio strobe connected to a Phottix Strato, Strato II, Ares II, or Atlas II receiver as well as a Phottix Mitros+ flash or an Indra 500/360TTL strobe set to Strato II receive function. When shooting, photographers can pick from various Phottix transmitters including the Strato II , Ares II , Odin or Odin II. The L-478 series meters offer the following languages in the interface: Japanese, English and Chinese. Depending on the country where the meter is purchased, the language is fixed and cannot be changed by the user.
NOTE: * This model may not be available due to the restriction of regulation in each country. * Please be sure to check the radio frequency and language before purchase.
Specifications
- Family:
- L-478
- Sensor:
- SPD
- Measuring System:
- Exposure Meter
Incident light: Swivel head, retractable lumisphere
Reflected light: Removable, with Optional 5 deg. VF - Measuring Modes (Ambient Light):
- T priority, F priority, TF priority, HD_CINE (T priority), CINE (f/s priority), Lux/FC, Cd/m2/FL
- Measuring Modes (Flash light):
- Cordless, Cord-in (PC), Radio triggering (Built-in, Phottix), Multiple cumulative flash
- Measuring Range at ISO100 (Ambient Incident Light):
- EV-2 to EV22.9
0.63 lx to 2,000,000 lx
0.1 fc to 180,000 fc - Measuring Range ISO100 (Ambient Reflected Light):
- EV3 to EV22.9
1.0 cd/m2 to 980,000 cd/m2
0.29 fl to 290,000 fl - Measuring Range (Flash Incident Light):
- F1.0 to F161.2(=128.9)
- Measuring Range (Flash Reflected Light):
- F2.8 to F161.2(=128.9)
- ISO Range:
- ISO 3 to ISO 409,600 + ISO 850
- Aperture Range (Ambient Light):
- F0.5 to F161.2(=128.9) in 1, 1/2, 1/3 step
(Analog Scale: F1.0 to F90 in 1/3 step) - Aperture Range (Flash Light):
- F0.5 to F161.2(=128.9) in 1, 1/2, 1/3 step
(Analog Scale: F1.0 to F90 in 1/3 step) - Shutter Speeds Range (Ambient Light):
- 30m to 1/64,000s in 1, 1/2, 1/3 step
(Analog scale: 4s to 1/2,000s in 1/3 step) - Shutter Speeds Range (Flash Light):
- 30m to 1/1,000s in 1, 1/2, 1/3 step
- Frame Rate Range (Ambient Light):
- 1 f/s to 1,000 f/s plus other 20 settings (customized from 0.001 f/s to 9,999.999 f/s)
- Shutter Angles Range (Ambient Light):
- 1 deg. to 358 deg. plus other 20 settings (customized from 0.001 deg. to 360 deg.)
- EV Range (Ambient Light):
- EV-27.9 to EV55.8
- Memory:
- Yes (9 times)
- Average:
- Yes
- Contrast/Comparison Function:
- Yes (+/-9.9EV in 1/10 step)
- Radio System:
- Transmitter built-in - Phottix Strato II protocol (2.4GHz)
- Flash vs Ambient Analyzing:
- Yes (in 10% step)
- Filter Compensation:
- Yes (-12EV to 12EV, preset 30 type)
- Exposure Compensation:
- Yes (-9.9EV to +9.9EV)
- Calibration Compensation:
- Yes (-1.0EV to +1.0EV)
- Custom Settings:
- Yes (13 custom settings)
- Physical:
- Operating Temperature:
- -10 deg. C to 50 deg. C
- Storage Temperature:
- -20 deg. C to 60 deg. C
- Power Source:
- 1.5V x 2 (AAA battery)
- LCD:
- 2.7" color dot matrix touch panel LCD
- LCD Backlight:
- Yes
- Product Weight (lb):
- 0.31lb
- Product Weight (kg):
- 0.14kg
- Product Height (in):
- 1.02in
- Product Length (in):
- 5.51in
- Product Width (in):
- 2.24in
- Product Height (cm):
- 2.6cm
- Product Length (cm):
- 14.0cm
- Product Width (cm):
- 5.7cm
- Image Zoom:
- T4_L478dr-u-px_401-476_1280x800_main.jpg;T4_L478dr-u-px_401-476_1280x800_01.jpg;T4_L478dr-u-px_401-476_1280x800_02.jpg
- Warranty:
- 1

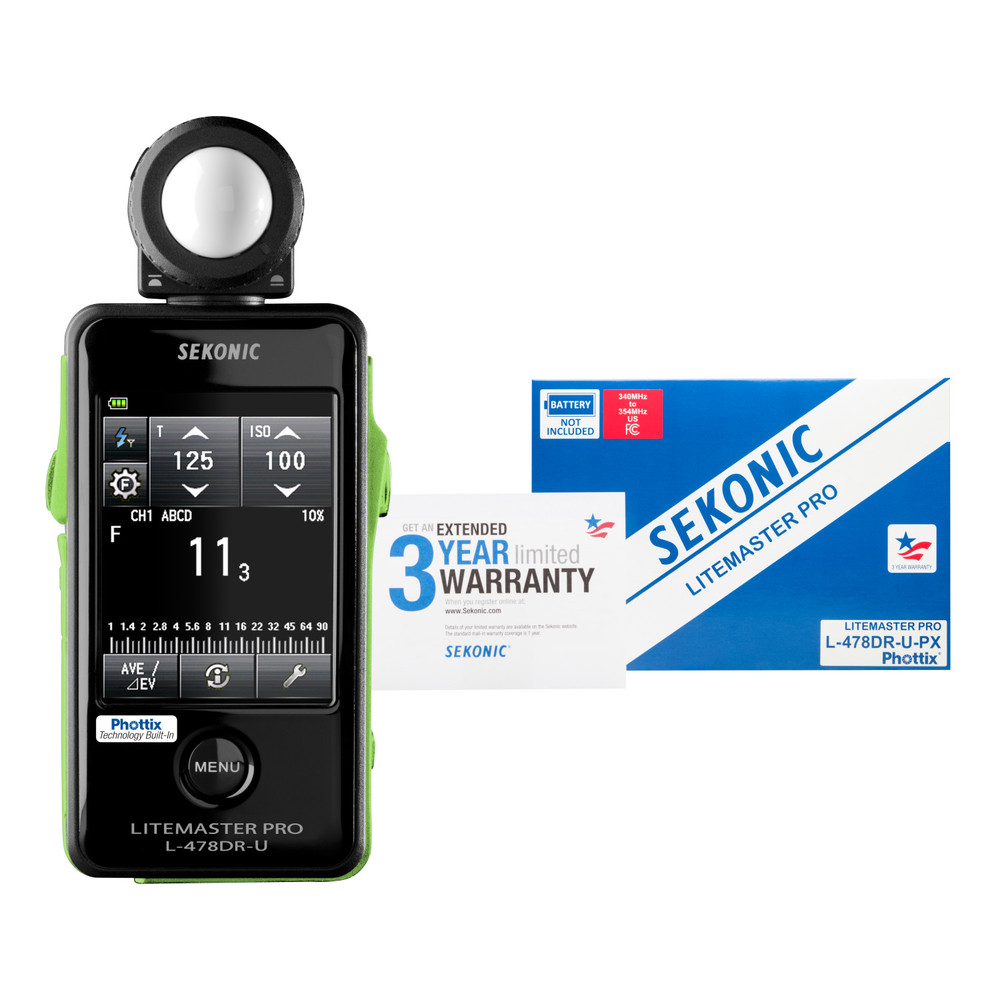

What's in the box
- Startup Guide
- Strap
- Soft Case
- Anti-glare film
- Safety Precaution Downloadable from website:
- Operating Manual
- Startup Guide
- Data Transfer Software
- Limited 1-Year Warranty with 2-Year Extension upon Online Registration (US only)
Downloads & Documents
Find the latest firmware, software and documentation at https://sekonic.com/downloads/.
