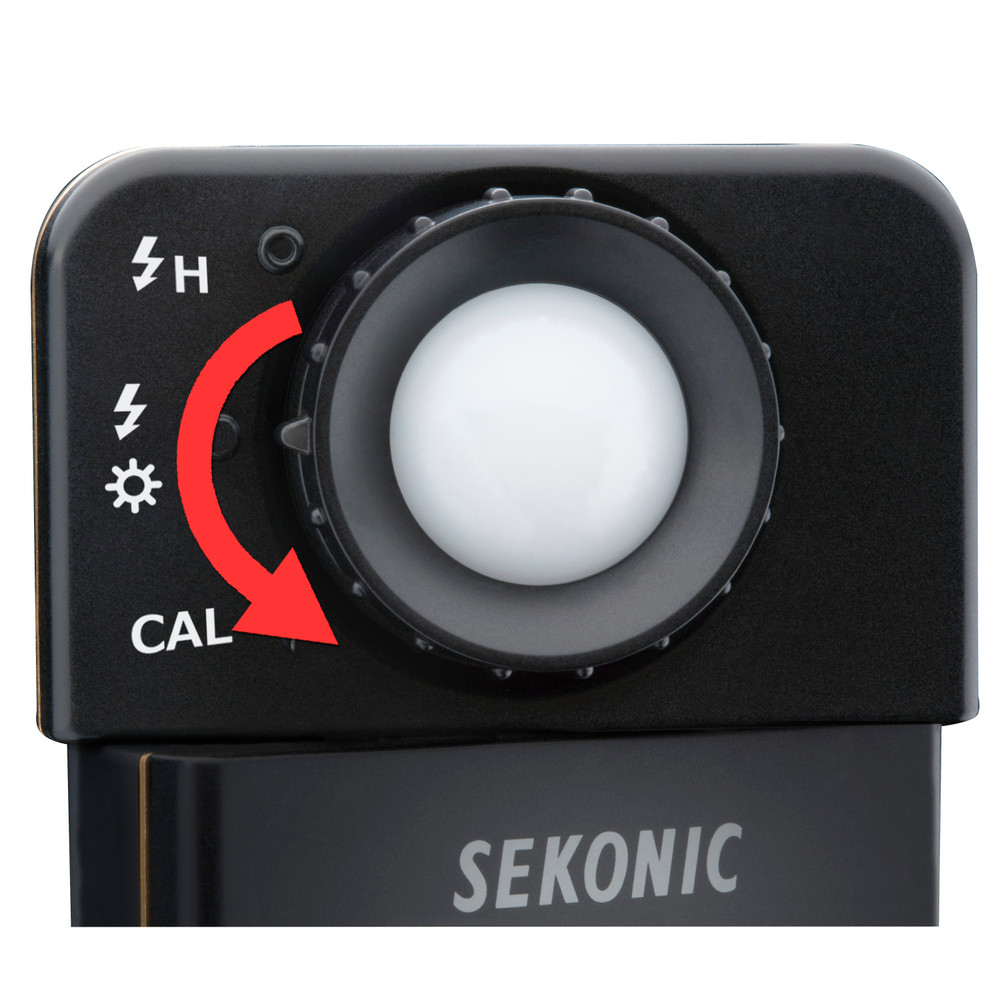

Sekonic Sekonic C-7000 SPECTROMASTER Spectrometer (Open Box)

SKU: 401-710D | FREE U.S. shipping on all orders over $100!

Regular: $2,300.00
SALE: $1,840.00
Students and Educators: Enroll or Log in for exclusive EDU savings!
Notify me Find a dealer

Out of stock

  • This product is in like-new condition and is offered for sale here because it was returned immediately after purchase or is was displayed at a trade show. OPEN BOX products are subject to the same warranty as NEW products. OPEN BOX Specials are also subject to the same 30-day return policy as NEW PRODUCTS.

Overview

The C-7000 Spectrometer is a portable handheld spectrometer, designed especially for industrial use. Utilizing Sekonic’s CMOS linear image sensor design and large touch-screen color display, the C-7000 can measure and accurately describe LED, HMI, fluorescent, as well as natural light and electronic flash. The C-7000’s Utility software displays memorized data in several ways and outputs spectral data in 1nm/5nm (nanometer) increments in CSV format. The C-7000 is an important measuring tool for quality control in lamp manufacturing, medical facilities, educational / office safety and health standards, agricultural lighting / design and many more industrial uses.

Specifications

Color Measuring Mode (Display Mode):
Text mode, Spectrum mode, Spectrum Comparison mode, CRI mode, CRI Comparison mode, TM-30-18 mode, SSI mode, TLCI/TLMF mode, CIE1931 (CIE1964) mode, CIE1931 (CIE1964) Comparison mode, CIE1976 mode, CIE1976 Comparison mode
Color Measuring Range (Ambient Light):
1,563 to 100,000K
Color Measuring Range (Flash Light):
2,500 to 100,000K
Color Measuring Units (Color Parameters):
Correlated Color Temperature (Tcp),Deviation (⊿uv ), Tristimulus value (XYZ / X10Y10Z10), CIE1931/1964 (xyz / x10y10z10), CIE1976 (u’v’ / u’10v’10 ),
Color Measuring Units (Color Rendering Properties):
CRI (Ra /R1 to R15), TM-30-18 (Rf, Rg), SSI(t, d, 1, 2) TLCI, TLMF
Color Measuring Units (Industrial):
Dominant wavelength (Λd), Excitation purity (Pe), Peak wavelength (Λp), PPFD,
Color Measuring Units (Photo/Cinematography):
Dominant wavelength (Λd), Excitation purity (Pe), Peak wavelength (Λp), PPFD,
Contrast/Comparison Function:
Yes
Custom Settings:
Yes (5 custom settings)
Family:
C-7000
Image Zoom:
LCD:
4.3" color dot matrix touch panel LCD
LCD Backlight:
Yes
Measuring Data Output:
Memorized value with graphic
Spectral irradiance from 380nm to 780nm in 1 and 5 nm increments
Physical:

Measuring System:
Spectro Meter
Incident light: Swivel head
Measuring Modes (Ambient Light):
Ambient light
Measuring Modes (Flash light):
Cordless, Cord-in (PC)
Measuring Range at ISO100 (Ambient Incident Light):
1 lx to 200,000 lx *
0.1 fc to 18,600 fc

* Class A of JIS C 1609-1: 2006 “Illuminance meters Part 1: General measuring instruments”
Measuring Range (Flash Incident Light):
20 lx・s to 20,500lx・s
1.86 fc・s to 1,900 fc・s
Memory:
Yes (999 times)
Operating Temperature:
-10 deg. C to 40 deg. C
Power Source:
1.5V x 2 (AA battery), USB bus-power
Product Height (cm):
2.7cm
Product Height (in):
1.06in
Product Length (cm):
18.3cm
Product Length (in):
7.2in
Product Weight (kg):
0.23kg
Product Weight (lb):
0.51lb
Product Width (cm):
7.3cm
Product Width (in):
2.87in
Sensor:
CMOS linear image sensor
Shutter Speeds Range (Ambient Light):
Auto - Max.: 15 sec., Min.: 0.5 sec.
Manual - 0.1s, 1sec.
Shutter Speeds Range (Flash Light):
1 to 1/500 sec. (in 1 step)
Spectral Wavelength Range:
380nm to 780nm
Storage Temperature:
-10 deg. C to 60 deg. C
Tripod Socket:
Yes
Warranty:
1

What's in the box

Downloads & Documents

Find the latest firmware, software and documentation at https://sekonic.com/downloads/.
