Benro | SKU: A373FBV4H
Overview

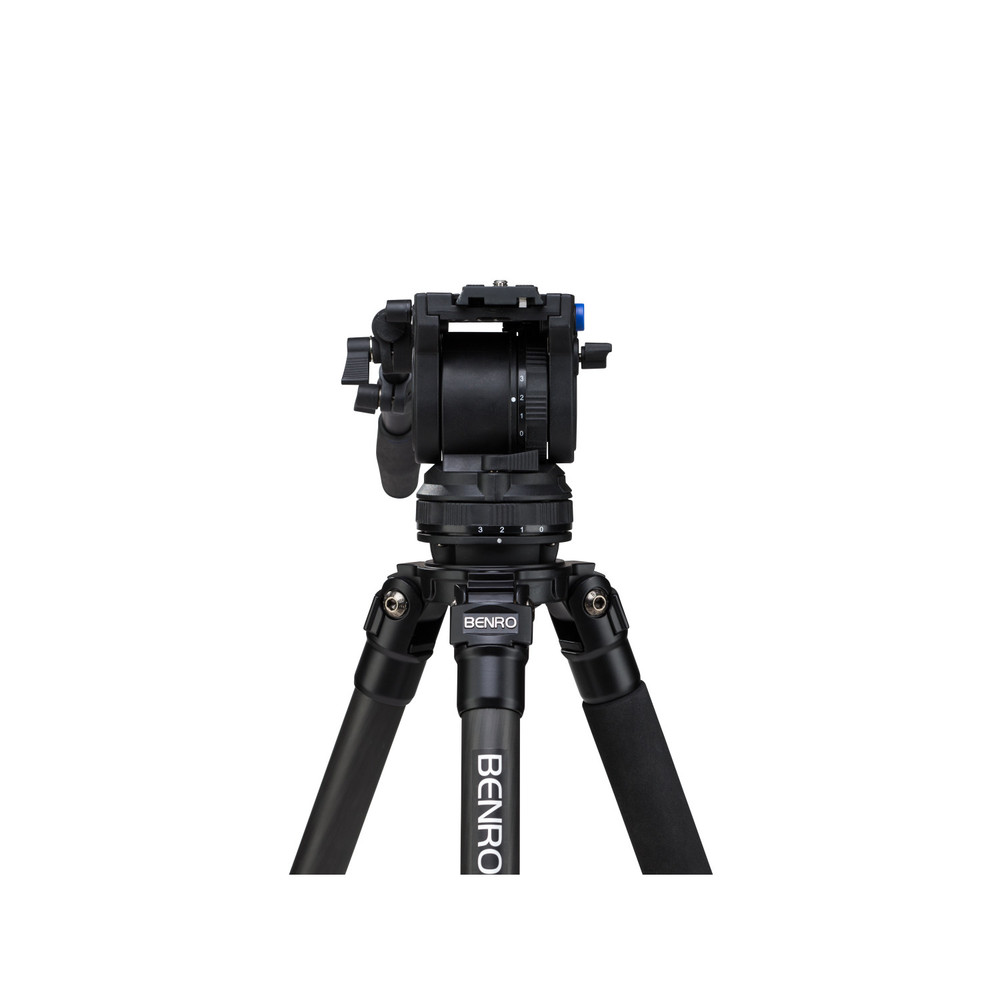

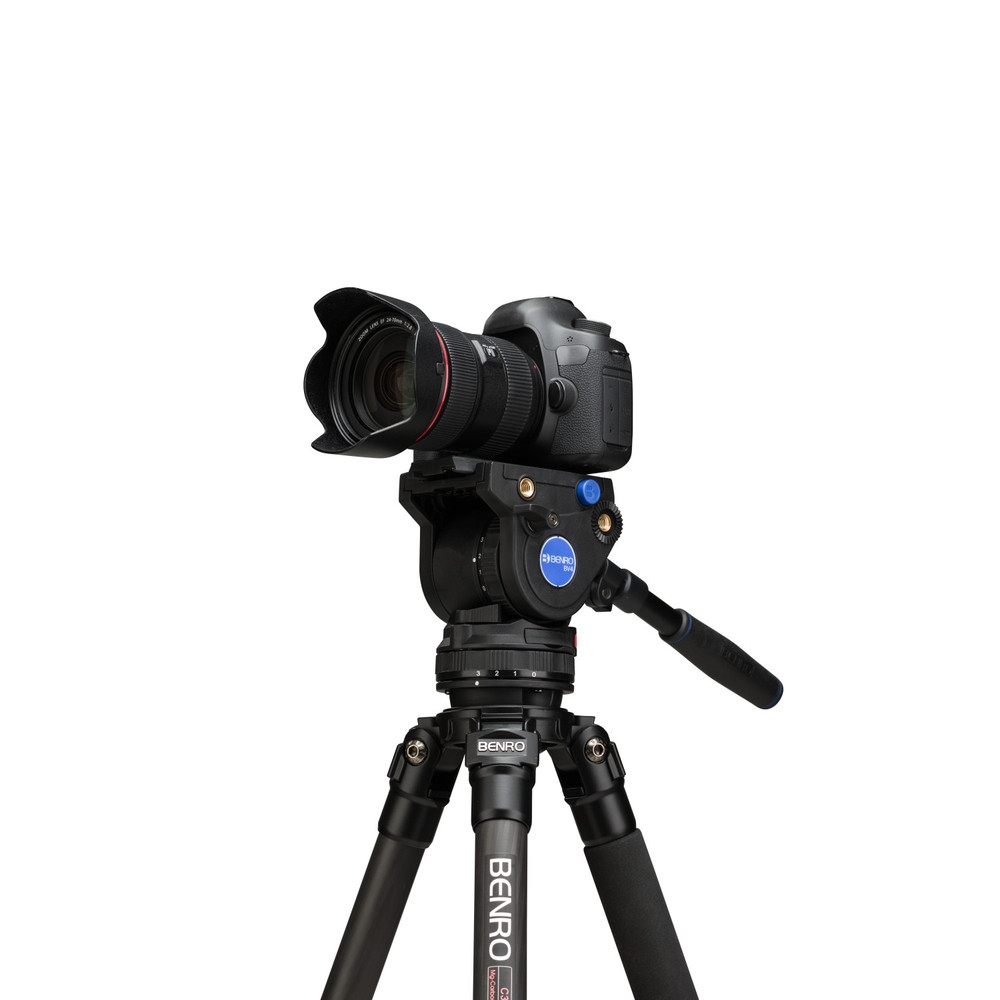

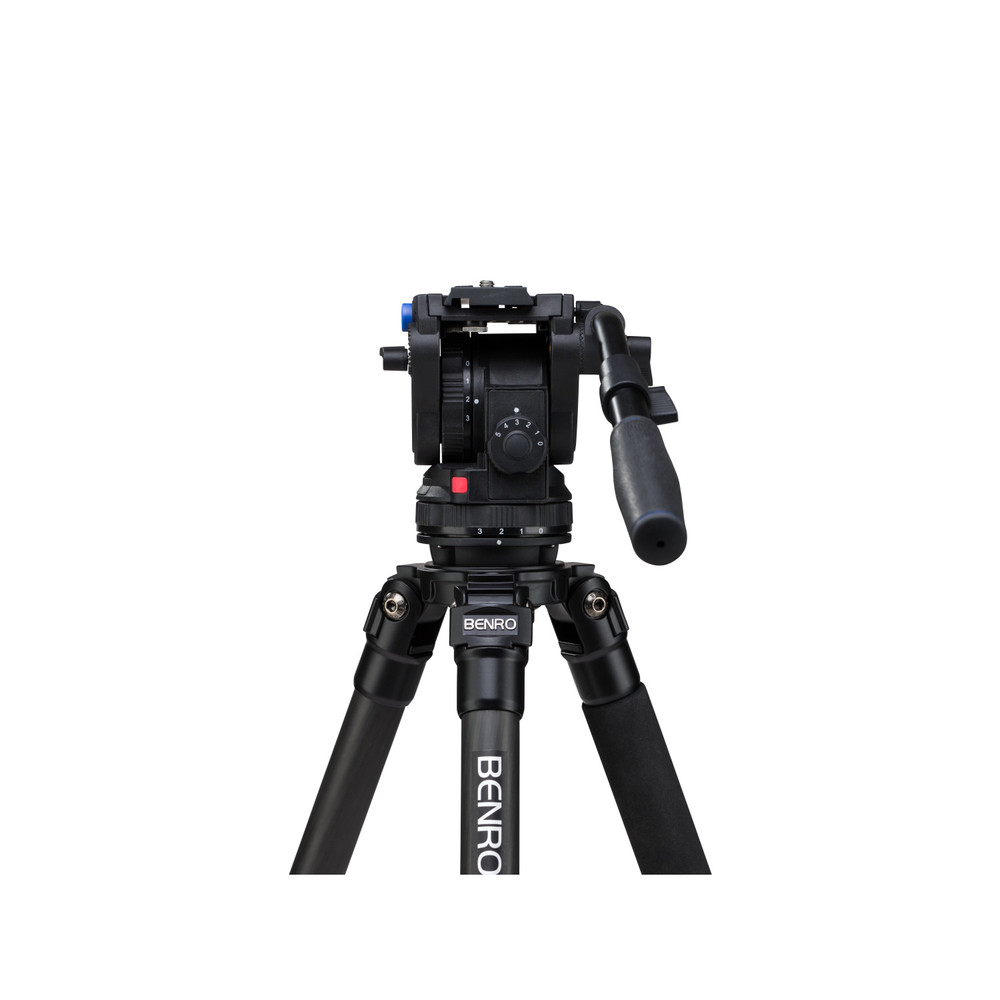

The Benro C373FBV4H is a lightweight video head with professional stepped controls ideal for camera setups up to 8.8 lb. The BV4 head is equipped with operator side controls which are located on the left side of the head making it easy to adjust while operating the camera.
The 6-step counterbalance (steps 0-5) allows you to dial in the right amount of counterbalance for each setup, which helps when changing lenses or adding accessories. The 4-step pan & tilt drag controls offer a more professional style setup and help to repeat smooth movements. Two 3/8" accessory mounts come in handy when needing to add a simple audio recorder or monitor. For added versatility, the tie down stud is removable to convert the BV4 head to flat base mode for mounting to a slider.

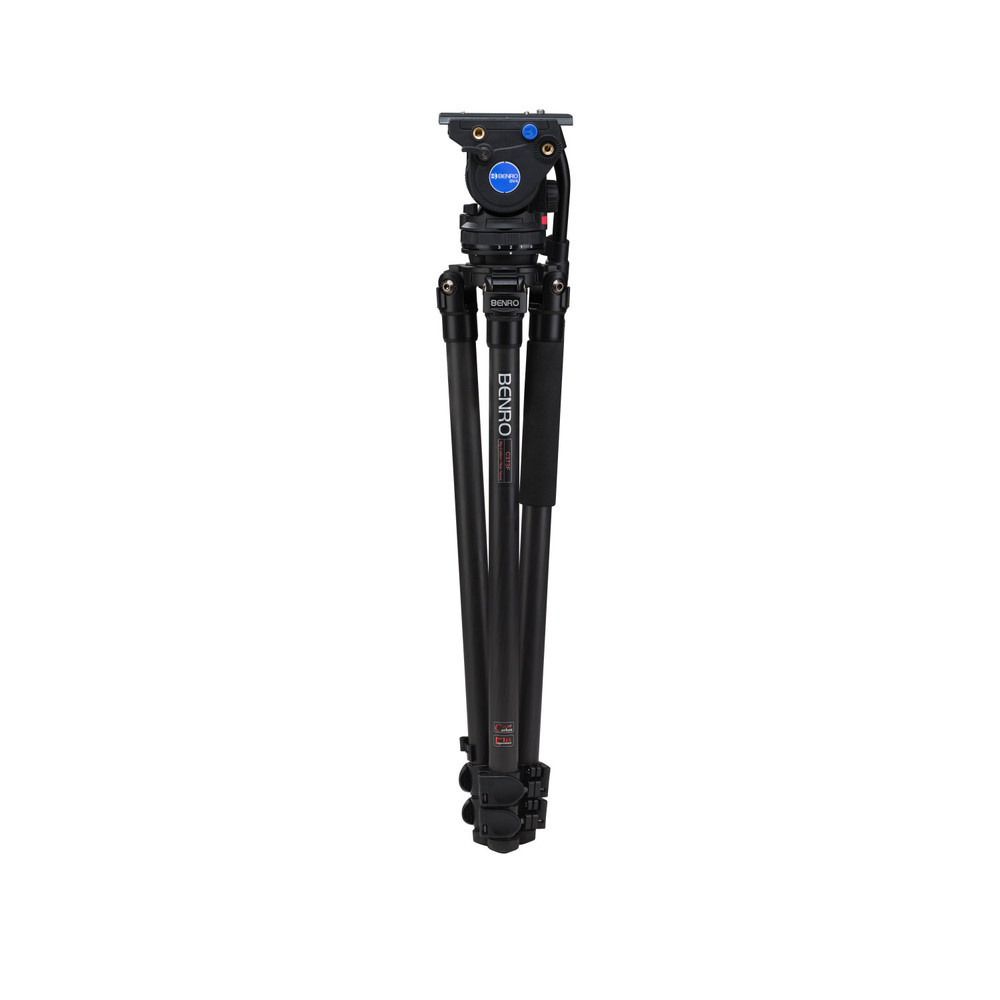

The 3 series stage, 3 section 8X carbon fiber tripod legs incorporate a 75mm bowl, three leg angles for uneven terrain and quick flip leg locks.
The 6-step counterbalance (steps 0-5) allows you to dial in the right amount of counterbalance for each setup, which helps when changing lenses or adding accessories. The 4-step pan & tilt drag controls offer a more professional style setup and help to repeat smooth movements. Two 3/8" accessory mounts come in handy when needing to add a simple audio recorder or monitor. For added versatility, the tie down stud is removable to convert the BV4 head to flat base mode for mounting to a slider.
The 3 series stage, 3 section 8X carbon fiber tripod legs incorporate a 75mm bowl, three leg angles for uneven terrain and quick flip leg locks.
Specifications
- Back Tilt Range:
- -60°
- Base Mount Thread:
- 3/8"-16
- Bowl Size (mm):
- 75
- Closed Length (cm):
- 79
- Closed Length (in):
- 31.1
- Converts to Monopod:
- N
- Counterbalance:
- 6 Steps (0-5)
- Family:
- BV Series
- Foot Mount:
- UNC 3/8-17
- Foot Size (mm):
- 24
- Foot Type:
- Rubber
- Forward Tilt Range:
- +90°
- Independent Leg Spread:
- Yes-with 3 stops
- Leg Diameter 1 (mm):
- 32.4
- Leg Diameter 2 (mm):
- 28.6
- Leg Diameter 3 (mm):
- 25.2
- Leg Lock Type:
- Flip Lock
- Leg Material:
- Carbon Fiber
- Leg Sections:
- 3
- Leg Diameter (mm):
- 32.4mm
- Maximum Height (in):
- 64.17
- Maximum Height (cm):
- 163
- Maximum Height Converted to Monopod (cm):
- N/A
- Maximum Height Converted to Monopod (in):
- N/A
- Maximum Height w/Column Extended (cm):
- 163
- Maximum Height w/Column Extended (in):
- 64.17
- Maximum Payload Capacity (lb):
- 8.81
- Maximum Payload Capacity (kg):
- 4
- Physical:
- Minimum Height (cm):
- 31
- Minimum Height (in):
- 12.2
- Pan Drag:
- Stepped (0-3)
- Pan Lock:
- Y
- Panning Range:
- 360
- Product Height (cm):
- 90.0cm
- Product Height (in):
- 35.4in
- Product Length (cm):
- 79.0cm
- Product Length (in):
- 31.1in
- Product Weight (kg):
- 3.8kg
- Product Weight (lb):
- 8.37lb
- Product Width (cm):
- 18.0cm
- Product Width (in):
- 7.1in
- Quick Release Type:
- Slide-In Video (QR13)
- Tilt Drag:
- Stepped (0-3)
- Tilt Lock:
- Y
- Top Plate Diameter (mm):
- 75
- Warranty:
- 3 Year
