Kaiser | SKU: 205603
$4,999.00
- Kaiser "RSP 2motion" Copy Stand Heavy-duty copy stand for analog and digital image capturing work with two-level motor-driven adjustment.
- Extremely sturdy, multi-section, special extrusion black anodized aluminum column with printed inch/cm scales.
- Double-strutted steel tube column foot.
- 4 mm aluminum detachable base board with stabilizing substructure.
- Die-cast aluminum camera carrier, horizontally adjustable by parallel guides with friction drive and hand cranks for right-hand/left-hand operation.
Overview

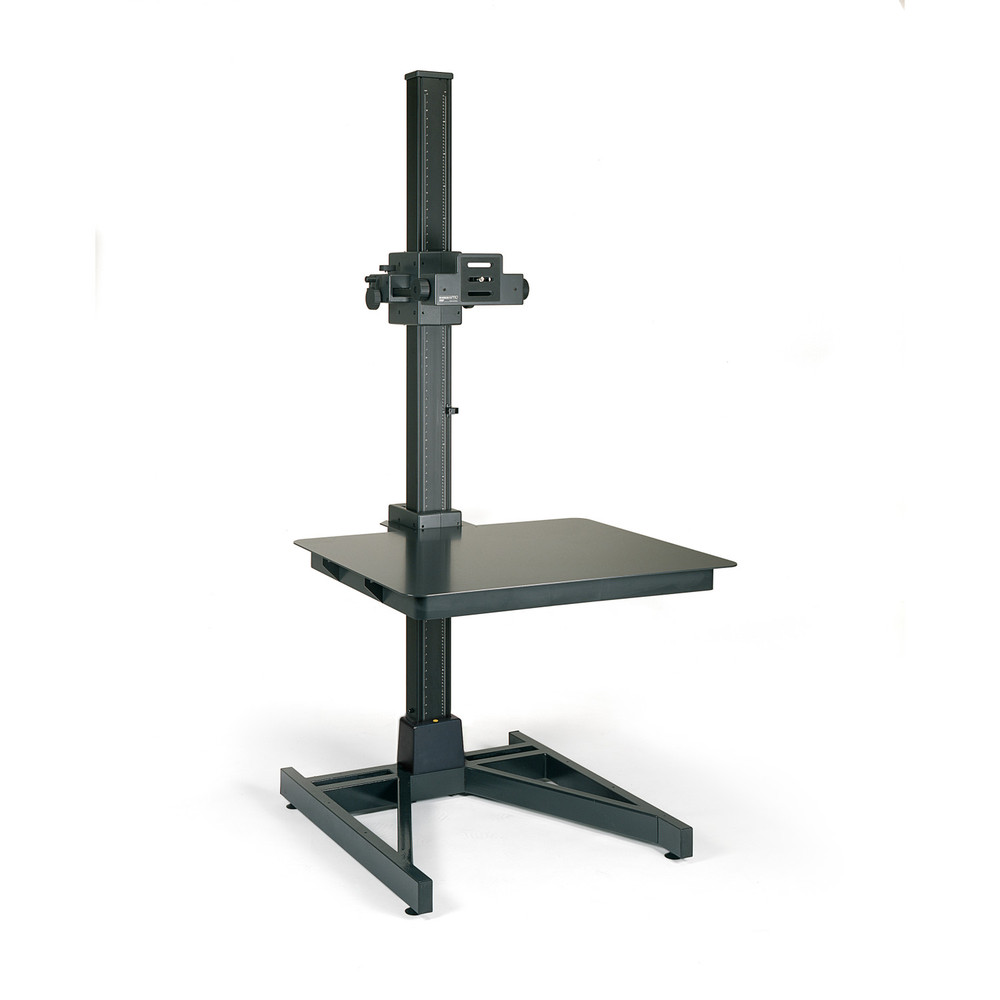

Kaiser "RSP 2motion" Copy Stand
Heavy-duty copy stand for analog and digital image capturing work with two-level motor-driven adjustment. Accepts originals up to 39.4x31.5 in/100x80 cm. Extremely sturdy, multi-section, special extrusion black anodized aluminum column with printed inch/cm scales. Double-strutted steel tube column foot. Steel socket for bolting the column. Four leveling feet. 4 mm aluminum detachable base board with stabilizing substructure.
Die-cast aluminum camera carrier, horizontally adjustable by parallel guides with friction drive and hand cranks for right-hand/left-hand operation. Two blocking screws. Camera mounting plate tiltable by 180°. Built-in spirit level.
Camera carrier and base board with individual motorized height adjustment. Two travel speeds, independent of load. Self-limiting worm gear for precise positioning at any height. Magnetic sensor automatic stop switch. Anti-collision tool. Cable remote control. Maximum working span: 63 in/160 cm. Interchangeable threaded 1/4” and 3/8” bushing.
Heavy-duty copy stand for analog and digital image capturing work with two-level motor-driven adjustment. Accepts originals up to 39.4x31.5 in/100x80 cm. Extremely sturdy, multi-section, special extrusion black anodized aluminum column with printed inch/cm scales. Double-strutted steel tube column foot. Steel socket for bolting the column. Four leveling feet. 4 mm aluminum detachable base board with stabilizing substructure.
Die-cast aluminum camera carrier, horizontally adjustable by parallel guides with friction drive and hand cranks for right-hand/left-hand operation. Two blocking screws. Camera mounting plate tiltable by 180°. Built-in spirit level.
Camera carrier and base board with individual motorized height adjustment. Two travel speeds, independent of load. Self-limiting worm gear for precise positioning at any height. Magnetic sensor automatic stop switch. Anti-collision tool. Cable remote control. Maximum working span: 63 in/160 cm. Interchangeable threaded 1/4” and 3/8” bushing.
Specifications
- Base Board Dimensions (in):
- 39.4x31.5
- Base Board Dimensions (mm):
- 1000x800
- Base Board Type:
- 4 mm Aluminum with stabilizing substructure
- Bushing Thread Mount (in):
- 1/4"-20, 3/8"-16
- Column Cross Section (in):
- 4.7x3.1
- Column Cross Section (mm):
- 120x80
- Column Height (in):
- 85
- Column Height (cm):
- 216
- Continuously Adjustable Height?:
- yes
- Horizontally Shiftable:
- yes
- Illuminated Area Dimensions (in):
- 39.4x31.5
- Illuminated Area Dimensions (cm):
- 100x80
- Physical:
- Object Size (cm):
- 100x80
- Object Size (in):
- 39.4x31.5
- Original Width for focal length (in/cm) 100 mm:
- 19.7/50
- Original Width for focal length (in/cm) 50 mm:
- 39.4/100
- Product Depth (cm):
- 126.0cm
- Product Depth (in):
- 49.61in
- Product Height (cm):
- 89.37cm
- Product Height (in):
- 89.37in
- Product Length (cm):
- 0.01cm
- Product Weight (kg):
- 129.0kg
- Product Weight (lb):
- 284.4lb
- Product Width (cm):
- 39.37cm
- Product Width (in):
- 39.37in
- Range of Tilt From Vertical (degrees):
- 90
- Tiltable:
- yes
- Warranty:
- 2 Year
