Kupo | SKU: KG804011
$42.95
- Built by heavy-duty gravity casting designed for rigging on pipe with diameters from 25mm (0.9") to 55mm(2.1")
- Features an unique quick action locking device which allows to tighten or loose the knob just in a snap.

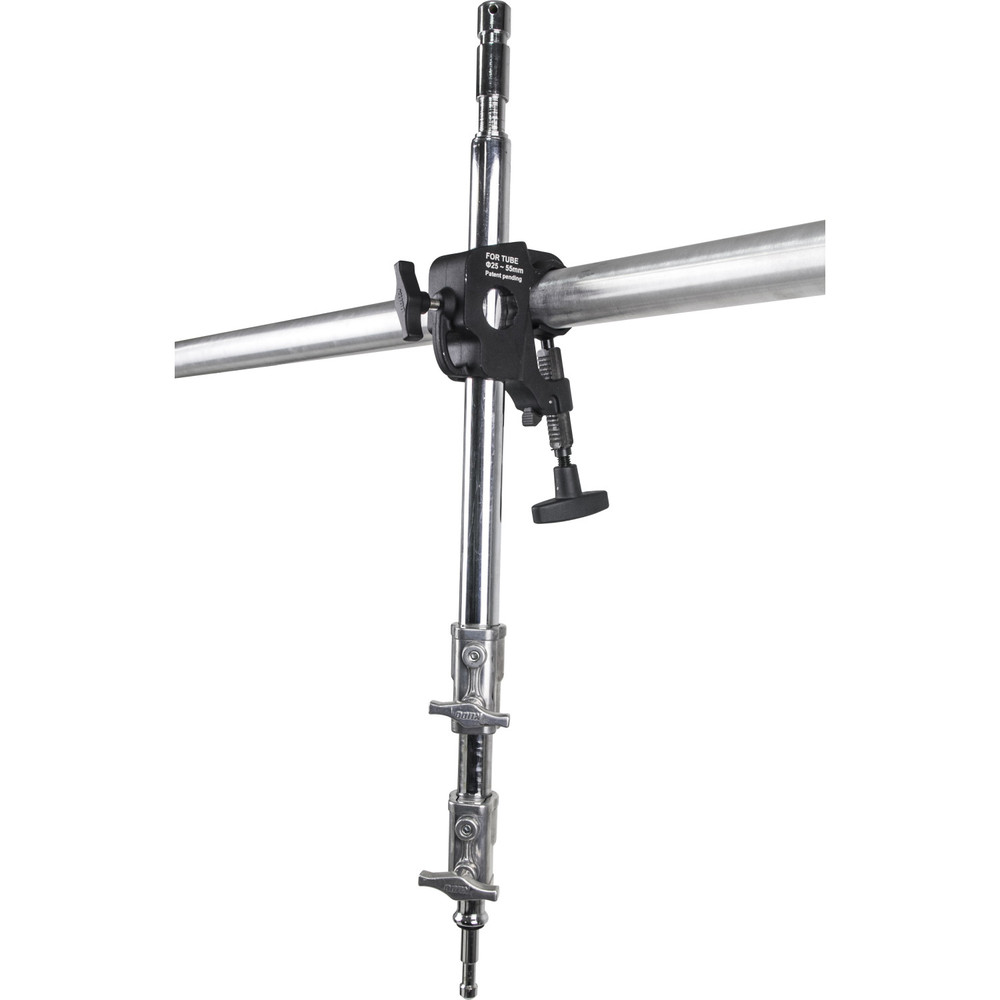

- The telescopic column is available for hanging lighting fixtures by clamping any pipe with max dia. 35mm in horizontal or vertical direction.
- The 28mm ( 1-1/8") stud can be also locked for direct hanging of a lighting fixture or gear that comes with a 28mm (1-1/8") stud.
- Limited two-year warranty
Overview
The Quick Action Jr. Pipe Clamp 0.9" to 2.1" has a patented quick release clamp mechanism. Gravity cast built for added strength. Insert telescopic columns (ie. C-Stand columns) with a max diameter of 35mm.
Specifications
- Maximum Jaw Diameter (in):
- 2.1in
- Maximum Jaw Diameter (mm):
- 55.0mm
- Maximum Payload Capacity (lb):
- 110
- Maximum Payload Capacity (kg):
- 50
- Physical:
- Minimum Jaw Diameter (in):
- 0.9in
- Minimum Jaw Diameter (mm):
- 25.0mm
- Product Height (cm):
- 5.5cm
- Product Height (in):
- 2.17in
- Product Length (cm):
- 22.0cm
- Product Length (in):
- 8.66in
- Product Weight (kg):
- 1.27kg
- Product Weight (lb):
- 2.8lb
- Product Width (cm):
- 17.5cm
- Product Width (in):
- 6.89in
- Warranty:
- Limited Two-Year Warranty
