Overview

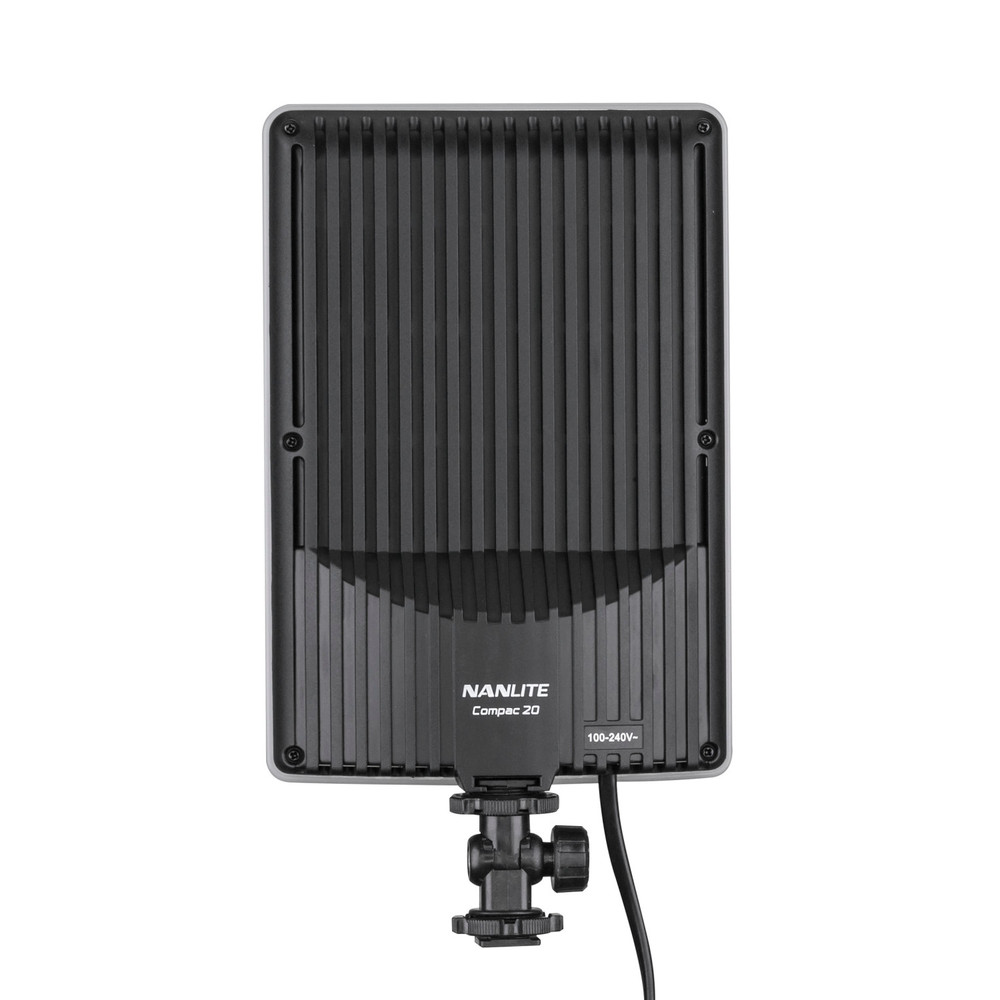

Combining a slim profile with impressive brightness, the Nanlite Compac 20 Slim Soft LED 3-Light Table Top Studio Kit achieves lighting similar to what you get from softboxes but at a fraction of the size and with none of the set up time. This space-saving design makes is an ideal solution for lighting Zoom calls, video meetings, social media shoots, portraits, interviews, headshots, live streaming, food photography, vlogging, product photography, and more.
With Compac series LEDs you can quickly achieve beautiful, studio-quality results without adding plastic filters or cloth diffusion. Rear controls enable you to dial in brightness from 0-100% and color temperature is set to a constant 5600K for easy compatibility with other daylight balanced light sources, photographic strobes and camera white balance presets. An LCD panel shows you exactly what settings you're using, making it easy to fine tune and then recreate them in future so your results will always be consistent and easily repeatable.
Whether you are shooting a video on location or setting up a home photography studio space is always at a premium. Compac series LEDs give you the light you need in the room you have. At only 2.9 inches thick, the Compac 24 uses high-efficiency LEDs to provide up to 1672 (420 Lux @ 1m 5600K) lumens of illumination. Supplied with a standard 5/8" receiver mount, the Compac can be mounted directly on any standard light stand.
With Compac series LEDs you can quickly achieve beautiful, studio-quality results without adding plastic filters or cloth diffusion. Rear controls enable you to dial in brightness from 0-100% and color temperature is set to a constant 5600K for easy compatibility with other daylight balanced light sources, photographic strobes and camera white balance presets. An LCD panel shows you exactly what settings you're using, making it easy to fine tune and then recreate them in future so your results will always be consistent and easily repeatable.
Whether you are shooting a video on location or setting up a home photography studio space is always at a premium. Compac series LEDs give you the light you need in the room you have. At only 2.9 inches thick, the Compac 24 uses high-efficiency LEDs to provide up to 1672 (420 Lux @ 1m 5600K) lumens of illumination. Supplied with a standard 5/8" receiver mount, the Compac can be mounted directly on any standard light stand.
Technical Data
- Accepts Grids:
- Not Applicable
- Accessory Port(s):
- Not Applicable
- Amp-Hours:
- Not Applicable
- Battery Capacity (Wh):
- Not Applicable
- Battery Cells:
- Not Applicable
- Battery Chemistry:
- Not Applicable
- Battery Compatibility:
- None AC Only
- Battery Included:
- No
- Battery Maximum Output Voltage:
- Not Applicable
- Battery Required:
- No
- Beam Angle Flood:
- Not Applicable
- Beam Angle Spot:
- Not Applicable
- Channels:
- Not Applicable
- Charge Time to Full (Hours):
- Not Applicable
- Charge Time to 80% (Hours):
- Not Applicable
- Charger:
- Not Applicable
- Closed Length (cm):
- Not Applicable
- Closed Length (in):
- Not Applicable
- Color Temperature (Kelvin):
- 5600K
- Compatible D-Tap Adapter:
- Not Applicable
- Compatible Remote:
- Not Applicable
- Compatible Wifi Adapter:
- Not Applicable
- Cooling System:
- Passive
- CRI:
- 95
- Depth Rating:
- Not Applicable
- Dimming:
- Not Applicable
- DMX Control:
- No
- Electrical Load Capacity:
- Not Applicable
- Footprint Diameter (cm):
- cm
- Footprint Diameter (in):
- in
- Frequency:
- Not Applicable
- Groups:
- Not Applicable
- Includes Rechargeable Battery:
- No
- Interior Color:
- Not Applicable
- Light Modifier Bayonet Mount:
- Not Applicable
- Load Capacity (kg):
- Not Applicable
- Load Capacity (lb):
- Not Applicable
- Lumen Output 3200K:
- Not Applicable
- Lumen Output 5600K:
- 1672
- Lux @ 0.5m 5600K:
- Not Applicable
- Lux @ 1m 2700K:
- Not Applicable
- Lux @ 1m 3200K:
- Not Applicable
- Lux @ 1m 5600K:
- 420
- Max Power Consumption:
- 20W
- Maximum Height (in):
- Not Applicable
- Maximum Height (cm):
- Not Applicable
- Physical:
- Minimum Height (cm):
- Not Applicable
- Minimum Height (in):
- Not Applicable
- Mount:
- Cold Shoe 5/8" Receiver via Adapter
- Number of Rods:
- Not Applicable
- Operating Temperature:
- Not Applicable
- Power Source:
- 100-240V AC
- 'Product Diameter (cm):
- Not Applicable
- 'Product Diameter (in):
- Not Applicable
- Product Inner Diameter (cm) Ring Lights Only:
- Not Applicable
- Product Inner Diameter (in) Ring Lights Only:
- Not Applicable
- Product Height (cm):
- 20.5cm
- Product Height (in):
- 8.07in
- Product Length (cm):
- 14.0cm
- Product Length (in):
- 5.51in
- Product Weight (kg):
- 0.35kg
- Product Weight (lb):
- 0.77lb
- Product Width (cm):
- 3.81cm
- Product Width (in):
- 1.5in
- Removable Front Diffusion:
- Not Applicable
- Removable Interior Baffle:
- Not Applicable
- Requires Speed Ring:
- Not Applicable
- Runtime @ 100% Brightness (Hours):
- Not Applicable
- Runtime @ 50% Brightness (Hours):
- Not Applicable
- Runtime @ 10% Brightness (Hours):
- Not Applicable
- Shape:
- Not Applicable
- TLCI:
- 93
- Umbrella Shaft Diameter:
- Not Applicable
- Warranty:
- Limited 2 Year Warranty (Extend to 3 Years Total With Online Registration)
- Wireless Control Type:
- Not Applicable
- Wireless Range:
- Not Applicable
