Nanlite | SKU: 15-2005D
- HAND HELD STUDIO QUALITY LIGHTING - Nanlite RGB series LED wands create bright, studio lighting anywhere with zero complications. The hand held design is perfect for light painting, photography lighting, video lighting, background lighting and more.
- THREE LED LIGHT SOURCES IN ONE WAND - Switch between a "traditional" multi LED panel for hard light, a diffuse SMD LED panel for soft light and a Tunable RGB panel for colorful creative effects at the push of a button.
- FULL CREATIVE CONTROL- Easily achieve beautiful results without adding plastic filters or cloth diffusion. The MixWand 18s's control knobs enable you to dial in brightness from 0-100%, temperature from warm to cold (3200K-5600K) or hue when in RGB mode.
- THE IDEAL LIGHT PAINTING TOOL - Thanks to its versatile 3 light source design and built in special effect modes; the MixWand 18 is an amazing light painting tool for everything from automotive photography to light writing.
- WE'VE GOT YOU COVERED - For over 25 years Nanlite has been producing innovative LED lighting solutions backed by a 2 year limited warranty extendible to 3 years limited with registration. Warranty valid only on products purchased from authorized dealers.
Overview

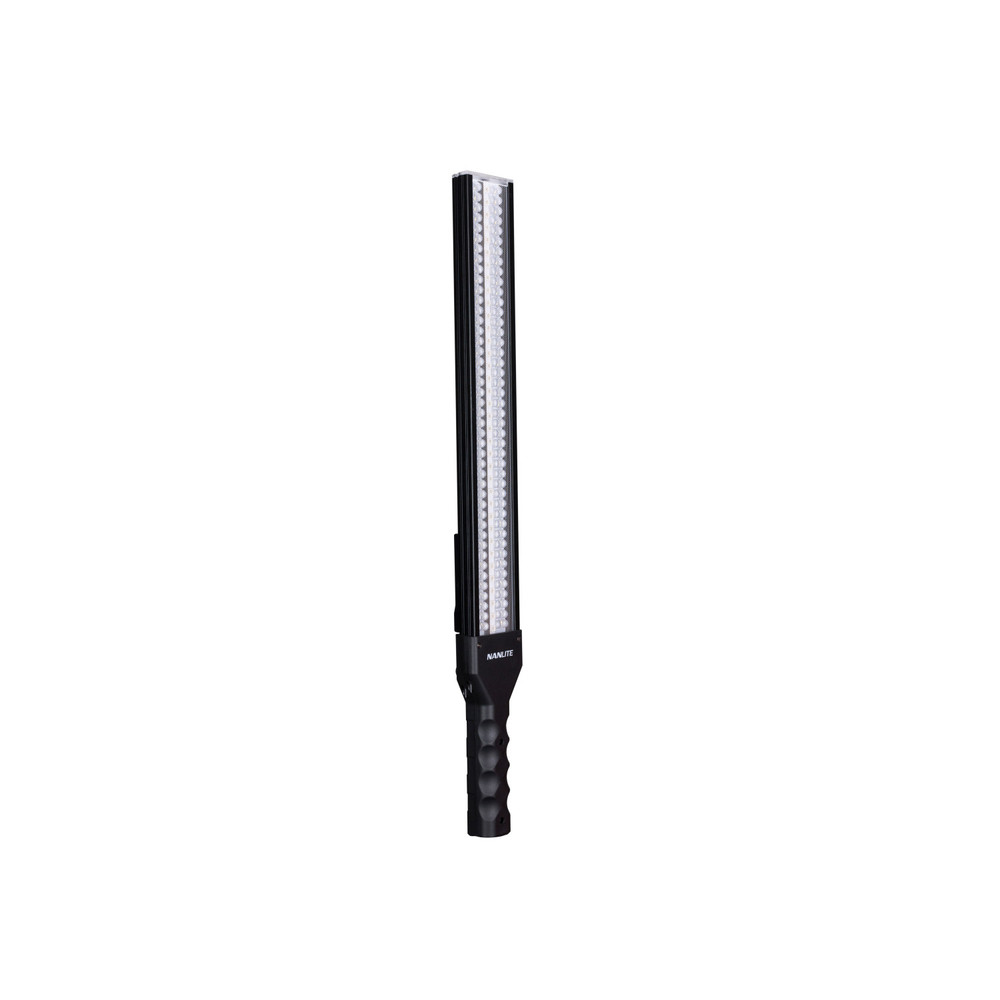

The Nanlite MixWand 18 LED Wand incorporates three LED light sources into one handheld light fixture. Switch between a "traditional" multi-LED source producing a harder light; surface mount (SMD) LEDs that provide a soft light, and Red, Green and Blue LEDs which can be mixed to create more than 360 colors at the touch of a button.
Whether you need hard lighting with more throw, diffused lighting for flattering portraits and up close work, or colored light to set moods and express emotions you can do it all in one unit with no additional accessories.
Applications include creating a variety of background colors by directing the RGB light onto a plain white wall or canvas, adding interesting hues and highlights to portrait photography, and setting mood and tone for music videos, short films, or any video production.
Also, thanks to its versatile 3 light source design and built-in special effect modes; the MixWand 18 is a fantastic light painting tool for everything from automotive photography to light writing.
Sized at 2.6 x 1.4 x 23.3 inches the MixWand 18 can provide up to 1421 lumens (1108Lux @1m 5600K, 960 Lux @ 1m 3200K) of illumination. While it is designed to be handheld, the MixWand 18 can also be mounted directly on any standard tripod head (not included) via its 1/4" 20 receiver mount.

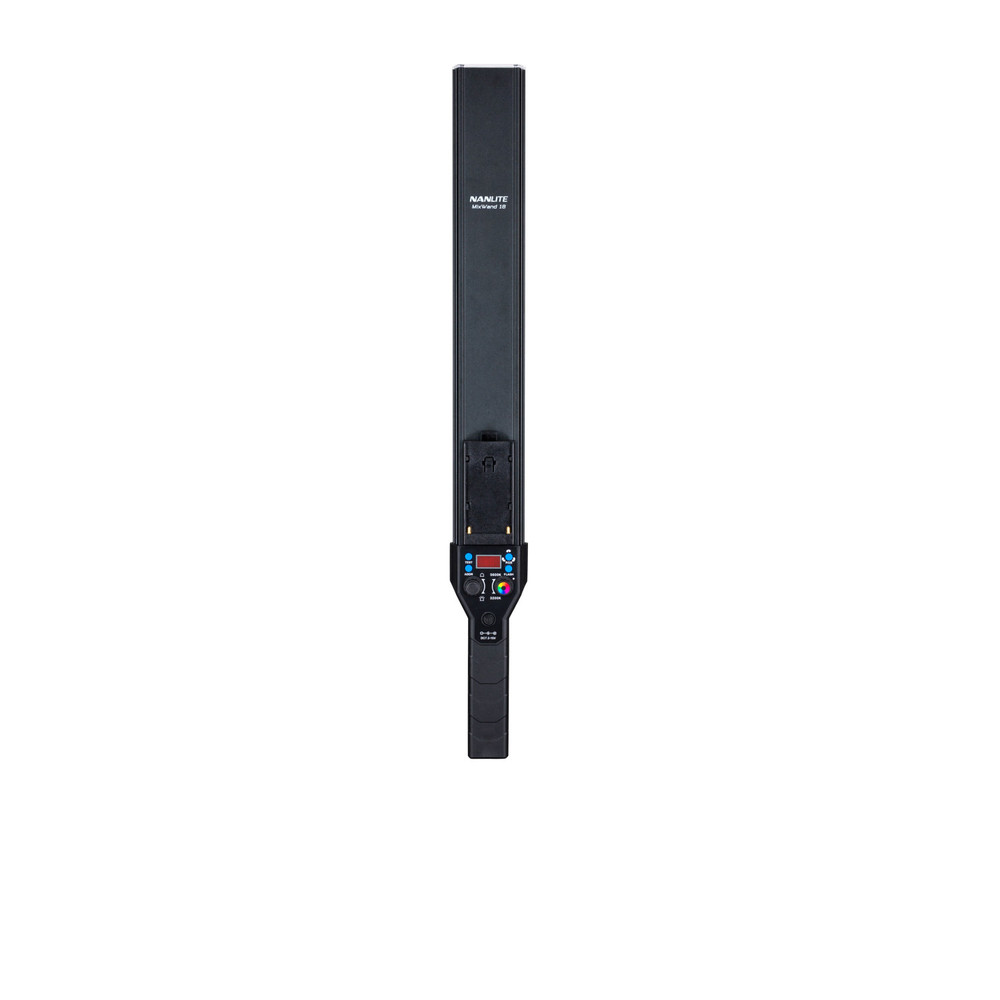

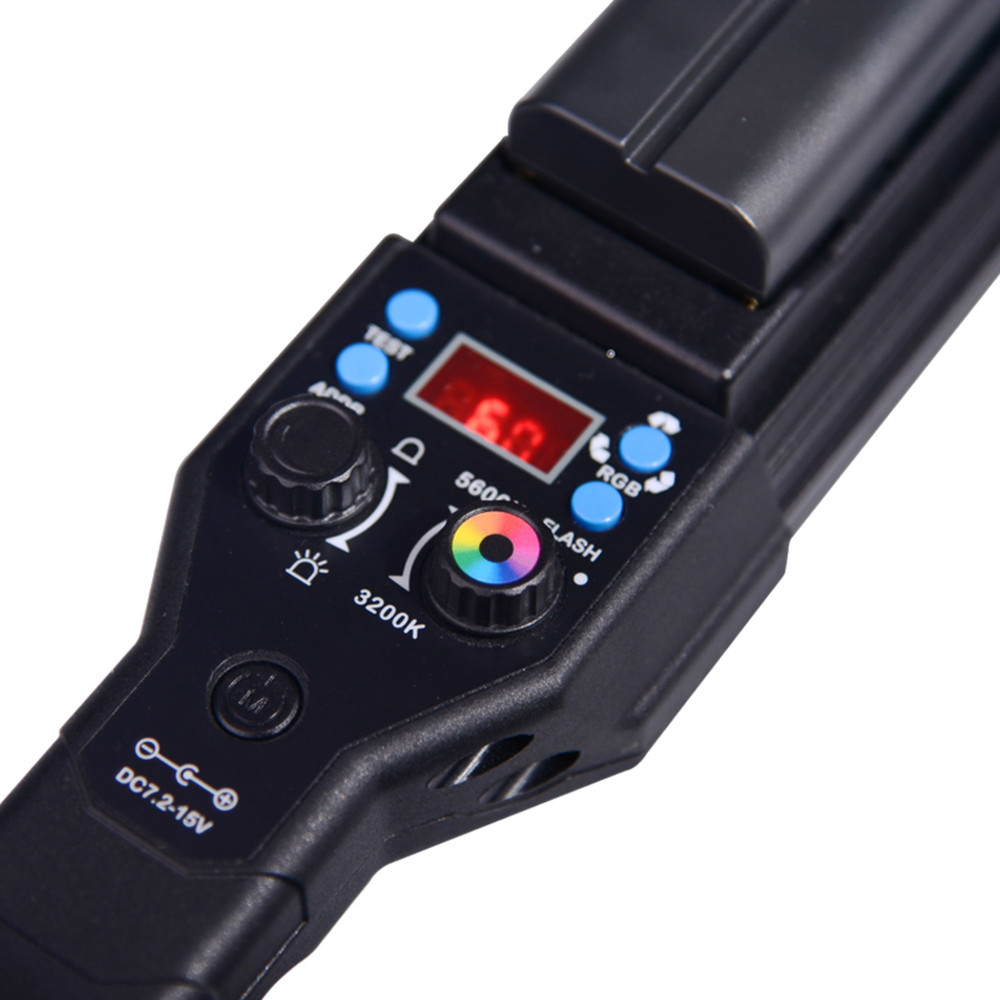

With the Nanlite MixWand 18 LED Wand, you can quickly achieve beautiful, studio-quality results without adding plastic filters or cloth diffusion. Control knobs enable you to dial in brightness from 0-100%, temperature from warm to cold (3200K-5600K), and hue when in RGB mode. A rear-facing display shows the color temperature, brightness level, and hue information, allowing you to make precision adjustments and making it easy to recreate your lighting set up in future if you need to.
The MixWand 18 is ideal for use in the studio or on location. It can be powered via either mains with the included AC adapter, compatible Sony NP-F style batteries (1x NP-F550 included) or DC through D-tap cable(sold separately) and also features a built-in battery level indicator. Also included is the Nanlite 2 in 1 Reciprocal Charger for Sony NP-F style batteries. Equipped with both USB power in and out ports, this exclusive charger can also be used to turn any Sony NP-F style battery into a USB power bank to charge cell phones and other devices.
Technical Data
- Accepts Grids:
- Not Applicable
- Accessory Port(s):
- Not Applicable
- Amp-Hours:
- Not Applicable
- Battery Capacity (Wh):
- Not Applicable
- Battery Cells:
- Not Applicable
- Battery Chemistry:
- Not Applicable
- Battery Compatibility:
- Sony NP-F550 / F750 / F970 series (1x NP-F550 included)
- Battery Included:
- Yes
- Battery Maximum Output Voltage:
- Not Applicable
- Battery Required:
- No
- Beam Angle Flood:
- Not Applicable
- Beam Angle Spot:
- Not Applicable
- Channels:
- Not Applicable
- Charge Time to Full (Hours):
- Battery Dependent
- Charge Time to 80% (Hours):
- Battery Dependent
- Charger:
- CN-59 Reciprical Battery Charger Included
- Closed Length (cm):
- Not Applicable
- Closed Length (in):
- Not Applicable
- Color Temperature (Kelvin):
- 3200K-5600K
- Compatible D-Tap Adapter:
- Nanlite CB-DT-DC D-Tap cable with DC Socket
- Compatible Remote:
- Nanlite RC-1 Remote Control
- Compatible Wifi Adapter:
- Nanlite W-2 Wifi Adapter
- Cooling System:
- Passive
- CRI:
- 95
- Depth Rating:
- Not Applicable
- Dimming:
- 0-100%
- DMX Control:
- No
- Electrical Load Capacity:
- Not Applicable
- Footprint Diameter (cm):
- cm
- Footprint Diameter (in):
- in
- Frequency:
- 2.4ghz
- Groups:
- Not Applicable
- Includes Rechargeable Battery:
- Yes
- Interior Color:
- Not Applicable
- Light Modifier Bayonet Mount:
- Not Applicable
- Load Capacity (kg):
- Not Applicable
- Load Capacity (lb):
- Not Applicable
- Lumen Output 3200K:
- 1421
- Lumen Output 5600K:
- 1421
- Lux @ 0.5m 5600K:
- Not Applicable
- Lux @ 1m 2700K:
- Not Applicable
- Lux @ 1m 3200K:
- Soft Light Mode - 128 Hard Light Mode - 960
- Lux @ 1m 5600K:
- Soft Light Mode - 128 Hard Light Mode - 1108
- Max Power Consumption:
- 18w
- Maximum Height (in):
- Not Applicable
- Maximum Height (cm):
- Not Applicable
- Physical:
- Minimum Height (cm):
- Not Applicable
- Minimum Height (in):
- Not Applicable
- Mount:
- 1/4 20"
- Number of Rods:
- Not Applicable
- Operating Temperature:
- Not Applicable
- Power Source:
- 7-12V DC
- 'Product Diameter (cm):
- Not Applicable
- 'Product Diameter (in):
- Not Applicable
- Product Inner Diameter (cm) Ring Lights Only:
- Not Applicable
- Product Inner Diameter (in) Ring Lights Only:
- Not Applicable
- Product Height (cm):
- 3.6cm
- Product Height (in):
- 23.3in
- Product Length (cm):
- 59.0cm
- Product Length (in):
- 2.64in
- Product Weight (kg):
- 0.87kg
- Product Weight (lb):
- 1.92lb
- Product Width (cm):
- 6.7cm
- Product Width (in):
- 1.42in
- Removable Front Diffusion:
- Not Applicable
- Removable Interior Baffle:
- Not Applicable
- Requires Speed Ring:
- Not Applicable
- Runtime @ 100% Brightness (Hours):
- 1 x NP-F550: 0.9 hours 1 x NP-F750: 1.8 hours 1 x NP-F970: 2.7 hours
- Runtime @ 50% Brightness (Hours):
- 1 x NP-F550: 1.8 hours 1 x NP-F750: 3.6 hours 1 x NP-F970: 5.4 hours
- Runtime @ 10% Brightness (Hours):
- 1 x NP-F550: 9 hours 1 x NP-F750: 18 hours 1 x NP-F970: 27 hours
- Shape:
- 0
- TLCI:
- 93
- Umbrella Shaft Diameter:
- Not Applicable
- Warranty:
- Limited 2 Year Warranty (Extend to 3 Years Total With Online Registration)
- Wireless Control Type:
- Wireless Remote / Wifi via adapter
- Wireless Range:
- Not Applicable
