Nanlite PavoTube II 30XR 4' RGBWW LED Pixel Tube with Built-In CRMX 4-Light Kit with Hard Case

SKU: PT30XR4KITHCWL | FREE U.S. shipping on all orders over $100!

$2,599.00
Students and Educators: Enroll or Log in for exclusive EDU savings!
  • GET UNIQUE, STUDIO QUALITY LIGHTING ANYWHERE - With an expanded and more precise color temperature range from 2700K-12000K with g/m adjustment, an average CRI of 97, an average TLCI of 98, plus RGB hue and saturation control, the PavoTube II 30XR 4' RGBWW LED Pixel Tube packs studio-quality lighting into a hardy, go-anywhere package.
  • FROM A NEXT-GEN LED TUBE - Nanlite drew on the feedback from PavoTube owners across the world to evolve their LED Tube design. Enhancements include brighter output with more uniform diffusion, an upgraded control panel with locking buttons, built-in CRMX, DMX compatibility, and enhanced app control.
  • WITH NO CORDS NEEDED - Powered an internal 4400mAh Li-ion battery, the PavoTube II 30XR can run for 1 hour and 36 minutes at full brightness completely untethered. Full battery recharge is achieved in 3 hrs and 30 mins via the included AC adapters, which can also power the Pavotube II 30XR during longer shoots.
  • PIXEL-BASED SPECIAL EFFECTS - In addition to 15 adjustable practical special effects, PavoTube II 30XR features 10 new pixel-based effects expanding the creative possibilities further than ever before. Pixel-based effects include Hue Loop, CCT Loop, INT Loop, Multi-color, Gradient, Scrolling, Marching, Flame, Rainbow, and Driving.
  • AND A ROBUST METAL HOUSING - The PavoTube II 30XR's upgraded metal housing makes worrying about an accidental drop or risky light placements a thing of the past. Plus, 3 incorporated ¼-20" receivers greatly expand mounting options.

Overview

The Nanlite PavoTube II 30XR is an RGBWW LED pixel tube that has the same design, features, and physical attributes as the standard PavoTube II 30X, with the addition of having CRMX LumenRadio wireless DMX built in. The PavoTube X-Series have been refined based on feedback from creators around the globe with features including pixel-based special effects, brighter output, more uniform diffusion, robust metal housings, DMX compatibility, wireless 2.4G, Bluetooth control with the free NANLINK mobile app for iOS and Android, and CRMX in the XR models. This is a 4-light kit that includes accessories and a rolling hard case.

Get Unique, Studio Quality Lighting Anywhere
With an expanded and more precise color temperature range from 2700K-12000K with green to magenta adjustment, an average CRI of 97, an average TLCI of 98, plus full-spectrum RGB hue and saturation control, the PavoTube II 30XR 4' RGBWW LED Pixel Tube packs studio-quality lighting into a hardy, go-anywhere package.

From a Next-Generation LED Tube
Nanlite drew on the feedback from PavoTube owners across the world to evolve their LED Tube design. Enhancements include brighter output with more uniform diffusion, a pixel density of 16 to create eye-catching animated effects, an upgraded control panel with locking buttons, DMX compatibility, and full wireless control through 2.4G and Bluetooth with the free NANLINK mobile app for iOS and Android, and CRMX on the XR models.

With No Cords Needed
Powered by an internal 4400mAh Li-ion battery, the PavoTube II 30XR can run for 1 hour and 36 minutes at full brightness completely untethered. Full battery recharge is achieved in 3 hours and 30 minutes via the included AC adapters, which can also power the Pavotube II 30XR during longer shoots.

Pixel Based Special Effects
In addition to 15 adjustable practical special effects, PavoTube II 30XR features 10 new pixel-based effects expanding the creative possibilities further than ever before. Pixel-based effects include Hue Loop, CCT Loop, INT Loop, Multi-color, Gradient, Scrolling, Marching, Flame, Rainbow, and Driving. Practical effects include Hue Loop, CCT Loop, INT Loop, CCT Flash, HUE Flash, CCT Pulse, Hue Pulse, Storm, Police Car, TV, Paparazzi, Candle/Fire, Disco, Bad Bulb, Firework, Explosion, and Welding.

And A Robust Metal Housing
The PavoTube II 30XR's upgraded metal housing makes worrying about an accidental drop or risky light placements a thing of the past. Plus, three incorporated ¼-20" receivers greatly expand mounting options.
Includes An SKB Watertight Hard Case

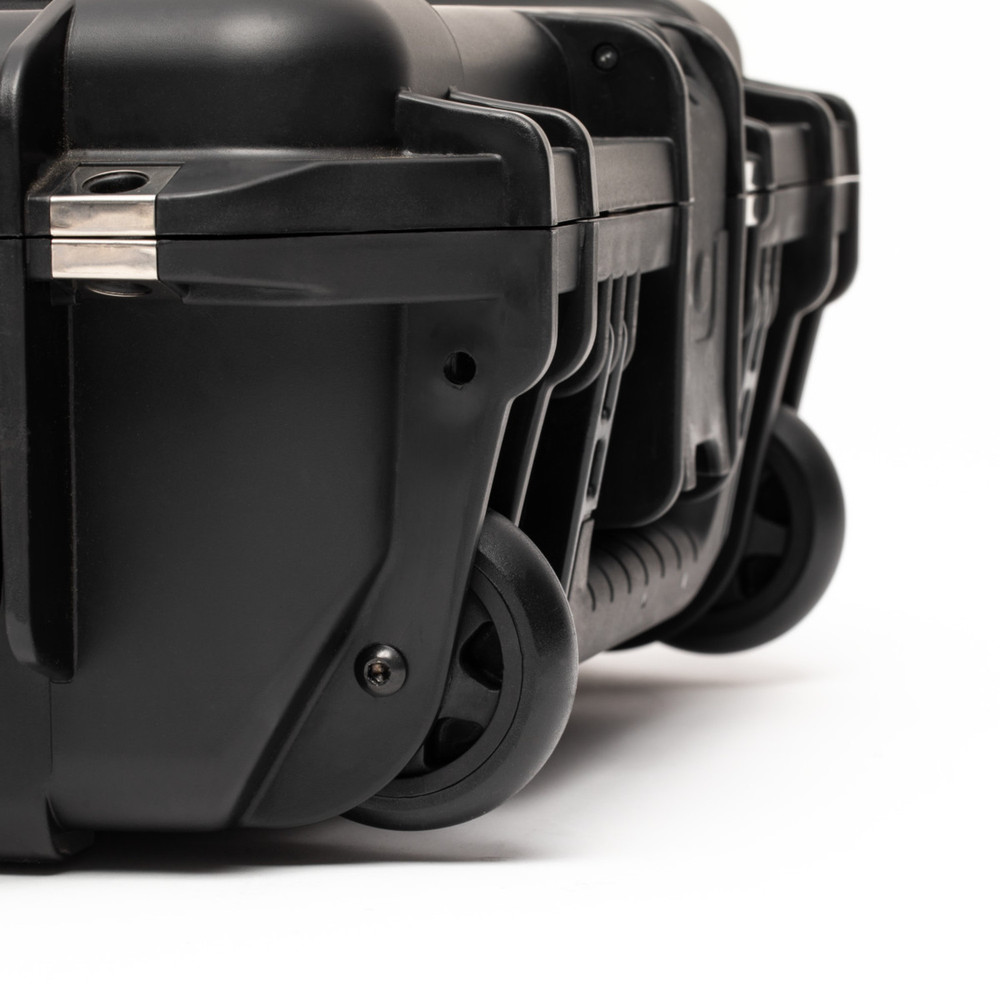

This kit comes with 4 PavoTube II 30XR LED Pixel Tubes and a custom SKB watertight hard case with a cushion-grip handle, built-in wheels, trigger-release latches, and locking loops for a pad lock (sold separately).

Technical Data

Accessory Port(s):
No
Amp-Hours:
4400mAh
Battery Capacity (Wh):
81.4
Battery Cells:
10.0
Battery Chemistry:
Li-Ion
Battery Included:
Yes
Battery Maximum Output Voltage:
18.5V
Battery Required:
Yes
Charge Time to Full (Hours):
About 3 hours 30 mins
Charger:
AC Adapter
Color Temperature (Kelvin):
2700K-12000K
Compatible D-Tap Adapter:
Nanlite CB-DT-DC D-Tap cable with DC Socket
Compatible Remote:
WS-RC-C2 remote control
Compatible Wifi Adapter:
Nanlink WS-TB-1 Transmitter box
Cooling System:
No
CRI:
Average 97
Depth Rating:
IP 20
Dimming:
0-100%
DMX Control:
Yes
Electrical Load Capacity:
81.4W
Frequency:
2.4Ghz
Includes Rechargeable Battery:
Yes
Lumen Output 3200K:
1188.0
Lumen Output 5600K:
1278.0
Lux @ 0.5m 5600K:
2989.0
Lux @ 1m 2700K:
686.0
Lux @ 1m 3200K:
688.0
Lux @ 1m 5600K:
746.0
Max Power Consumption:
36W
Physical:

Mount:
T12, 3x 1/4 20", Magnets
Operating Temperature:
ta45℃
Power Source:
DC15V/4A
'Product Diameter (cm):
4.3
'Product Diameter (in):
1.7
Product Length (cm):
114.5cm
Product Length (in):
45.0in
Product Weight (kg):
1.58kg
Product Weight (lb):
3.5lb
Runtime @ 100% Brightness (Hours):
1h 36 mins
Runtime @ 50% Brightness (Hours):
3h 7mins
Runtime @ 10% Brightness (Hours):
11h 45 mins
TLCI:
Average 98
Warranty:
Limited 2 Year Warranty (Extend to 3 Years Total With Online Registration)
Wireless Control Type:
2.4GHz, Bluetooth, DMX/RDM
